产品规格
真空至 200 psi，13.8 bar
压力:
BLQ2
温度: -17°C to 115°C
断开接头时, 大流量不能超过：
BLQ2 0 - 100 psi 时为 1.00 加仑/分钟；
101 - 200 psi 时为 0.25 加仑/分钟
材料:
主壳体部分 镀铬黄铜
阀门 聚砜
阀弹簧（接液） 不锈钢
密封件
EPDM
颜色:
BLQ2 铬
螺纹规格:
BLQ2 1/4" SAE-4
润滑剂: Krytox? PFPE
泄漏量:
BLQ2 0 psi 压力下每次断开泄漏量少于 0.015 cc；
200 psi 压力下每次断开泄漏量少于 0.063 cc
夹杂空气:
BLQ2 每次连接少于 0.063 cc
Cv值
产品

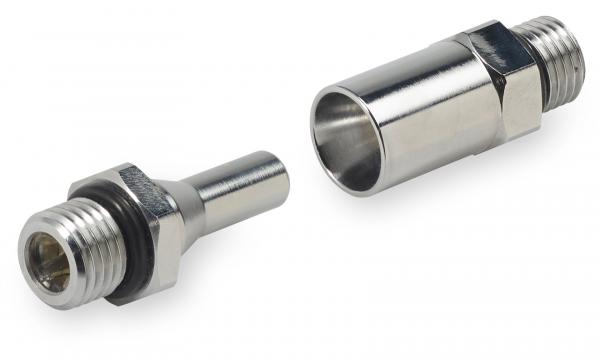

- Everis BLQ2 系列快速插拨接头实现超可靠、无滴漏连接和断开，保护贵重的电子器件。Everis BLQ2 专为机架式液体冷却应用而设计，采用正在申请专利的阀门技术，可消除滴漏，并能够长期使用。
|
|
BLQ2

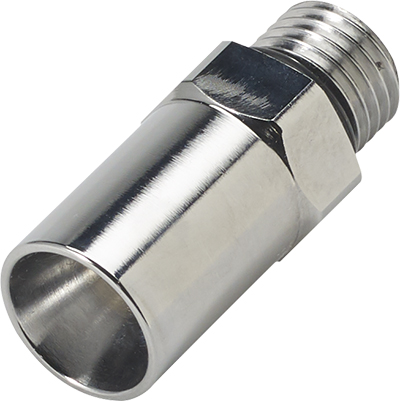

1/4" RACK AND PANEL SAE-04 VALVED IN-LINE LIQUD COOLING COUPLING BODY
Part #: BLQ2D3004
Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 200 psi, 13.8 bar
Color: Chrome
Temp. Range: 0°F to 240°F (-17°C to 115°C)
Mounting Option: Thread
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Spilling: Spillage is < 0.015 cc per disconnect at 0 psi and < 0.063 cc per disconnect rated at 200 psi; Inclusion < 0.063 cc per connect |
BLQ2

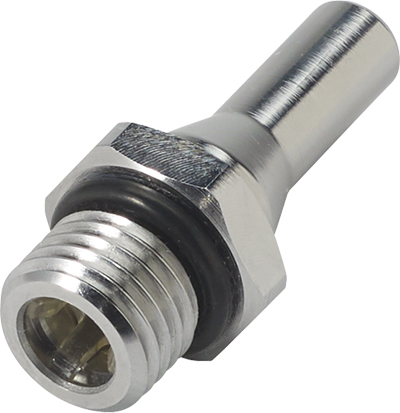

1/4" RACK AND PANEL SAE-04 VALVED IN-LINE LIQUD COOLING COUPLING INSERT
Part #: BLQ2D4604
Material: Brass
Material Finish: Chrome
Pressure Range: Vacuum to 200 psi, 13.8 bar
Color: Chrome
Temp. Range: 0°F to 240°F (-17°C to 115°C)
Mounting Option: Thread
Seal Options: EPDM
Valve Spring: Stainless Steel
Valve Option: Valved
Spilling: Spillage is < 0.015 cc per disconnect at 0 psi and < 0.063 cc per disconnect rated at 200 psi; Inclusion < 0.063 cc per connect |
CPC BLQ2 系列快速插拨接头实现超可靠、无滴漏连接和断开，保护贵重的电子器件。BLQ2 专为机架式液体冷却应用而设计，采用正在申请专利的阀门技术，可消除滴漏，并能够长期使用。
Bodies
1/4" Rack and Panel SAE-04 Valved In-Line Liqud Cooling Coupling Body
BLQ2D3004
1/4" Rack and Panel SAE-04 Valved In-Line Liqud Cooling Coupling Body
Inserts
1/4" Rack and Panel SAE-04 Valved In-Line Liqud Cooling Coupling Insert
BLQ2D4604
1/4" Rack and Panel SAE-04 Valved In-Line Liqud Cooling Coupling Insert
