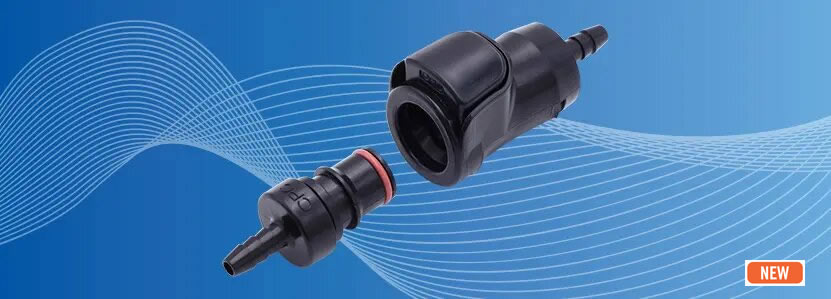

CPC DF2 DripFree Series DF2系列无滴漏喷墨打印接头
探索创新的DripFree快速断开系统，拥有1/8英寸免润滑的流路。Discover the innovative DripFree quick disconnect with a 1/8” lubrication-free flow path.
CPC的新款DF2（无滴漏）系列连接器设计目的是：
- 快速、干净地填充材料——无滴漏、无麻烦
- 支持快速高效的设备维修
- 避免溢出和空气混入
- 与各种墨水在化学上兼容
- 单手轻松连接和断开
- 专为简化您的印刷和墨水管理而设计。
2026年初可购。

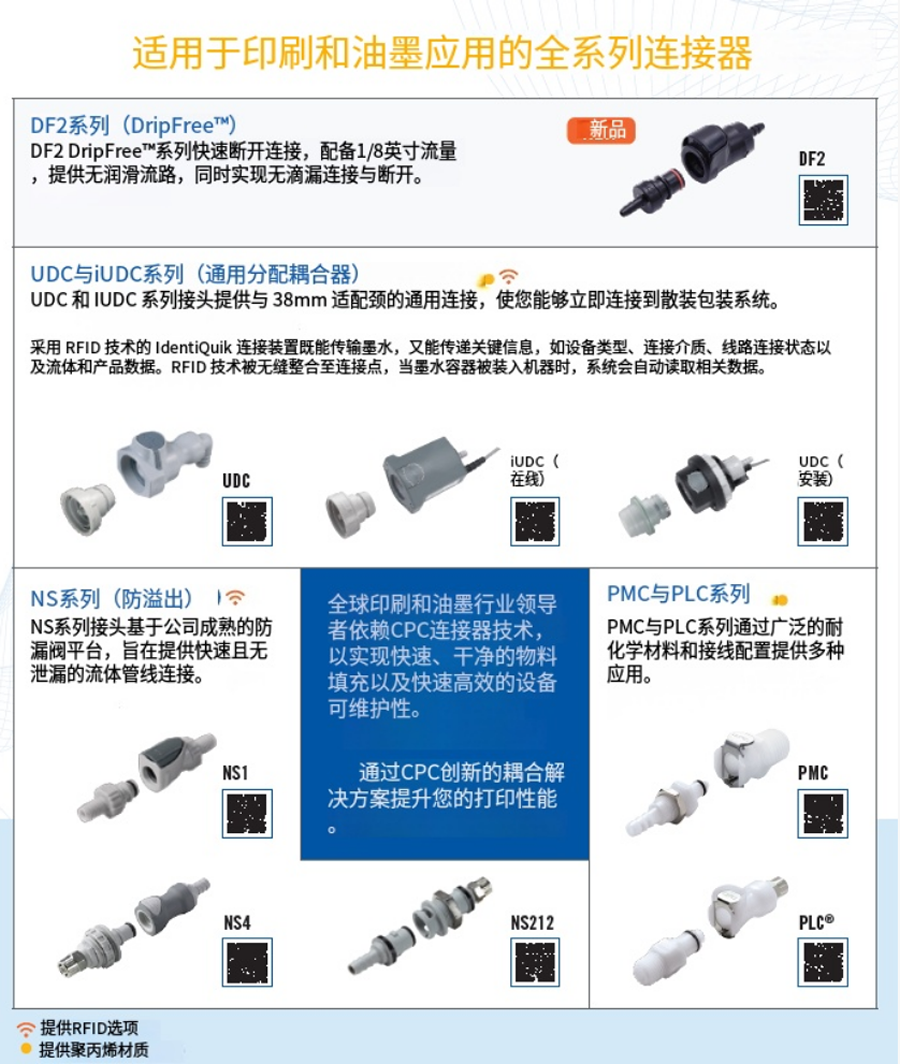

CPC-Print-and-Ink-Cleaner-Faster-More-Efficient-Brochure
CPC 印刷与油墨清洁快插接头产品手册
Download the Print and Ink Brochure
CPC’s new DF2 DripFree Series connectors are designed to:
- Deliver quick, clean material fills—no drips, leaks or hassles
- Support fast, efficient equipment serviceability
- Avoid spillage and air inclusion
- Be chemically compatible with a range of inks

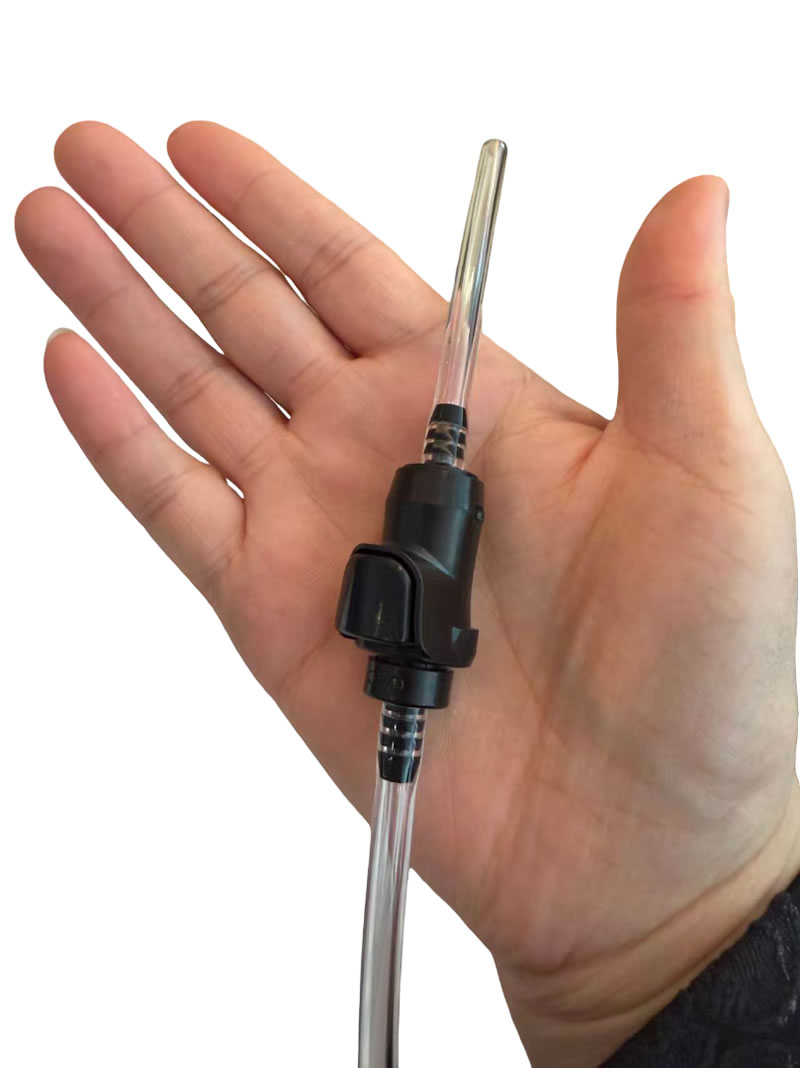

- Connect and disconnect easily with one hand
- Purpose-built to streamline your print and ink management.Available to purchase early 2026.
产品型号与参数
DripFree DF2D170212S, DF2D220212S
Download the Print and Ink Brochure
- CPC 印刷油墨用快插接头参数对比表
| |
 |
 |
 |
| 参数项 |
DripFree (DF2D170212S, DF2D220212S) |
NON-SPILL (NS4D17004, NS4D22004) |
PMC (PMCD1702, PMCD2202) |
| Flowpath Size |
1/8" |
1/4" |
1/8" |
| Cv |
0.28 |
0.73 |
0.25 |
| Valve Style |
DripFree |
Non-Spill |
Traditional Poppet |
| Spillage at Disconnect |
<0.10 cc |
<0.10 cc |
~0.50 cc |
| O-ring Lubrication |
Non-lubed standard |
Krytox GPL 205 Standard |
Dow Xiameter PMX-200 Standard |
| Non-lubed not available |
Non-lubed available as a Custom |
| Base Material |
Glass-filled Polypropylene |
Glass-filled Polypropylene |
Acetal |
| Color |
Black |
Grey |
Natural |
| O-ring Material |
Silicone Standard |
EPDM Standard |
Buna-N Standard |
| Other materials available |
Other materials available |
Other materials available |
| Spring Material |
316 SST |
316 SST |
316 SST |
| Thumb Latch Material |
Acetal |
Glass-filled Polypropylene |
301 SST |
| Thumb Latch Performance |
Ready to connect |
Ready to connect |
Latch must be in correct position |
| Spring in Flow Path |
Yes |
Yes |
Yes |
| Overall Length (OAL) |
1.65" (41.9mm) |
2.34" (59.4mm) |
1.65" (41.9mm) |
| Largest Diameter |
0.90" (22.9mm) |
1.05" (26.7mm) |
0.80" (20.3mm) |
| Operating Temp Range |
0 to 160°F (-17 to 71°C) |
32 to 160°F (0 to 71°C) |
-40 to 180°F (-40 to 82°C) |
| Operating Pressure |
Vacuum to 120 psi, 8.3 bar |
Vacuum to 120 psi, 8.3 bar |
Vacuum to 120 psi, 8.3 bar |
|
