CPC EC4系列快速接头EC4D17006 EC4系列快速接头采用塑料拇指锁、更少的活动部件和光滑的轮廓设计，以紧凑的尺寸提供易用性和出色的流动性。EC4连接器是低压和低温应用的理想解决方案。EC4 Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The EC4 connector is an ideal solution for lower pressure and temperature applications. -- 西安嘉岳自动化技术有限公司产品代理 CPC: Quick Connect & Disconnect Fittings

EC4系列快速接头采用塑料拇指锁、更少的活动部件和光滑的轮廓设计，以紧凑的尺寸提供易用性和出色的流动性。EC4连接器是低压和低温应用的理想解决方案。EC4 Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The EC4 connector is an ideal solution for lower pressure and temperature applications.

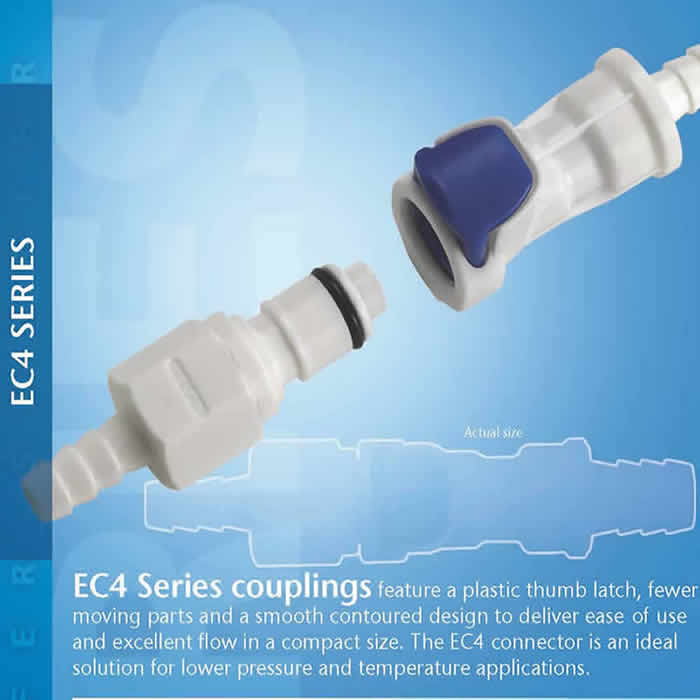

EC4系列快速接头 EC4 Series couplings

规格

压力：真空至100 psi，6.9 bar
温度：0°F至140°F（-18°C至62°C）

材料：
主要部件和阀门：乙缩醛（二乙醇），醛缩醇
拇指锁：乙缩醛
面板螺母：缩醛
阀弹簧：316不锈钢
外弹簧：302不锈钢
O型圈：丁腈橡胶
颜色：白色，带蓝色闩锁
管道尺寸：
内径1/4“至3/8”，内径6.4mm至9.5mm

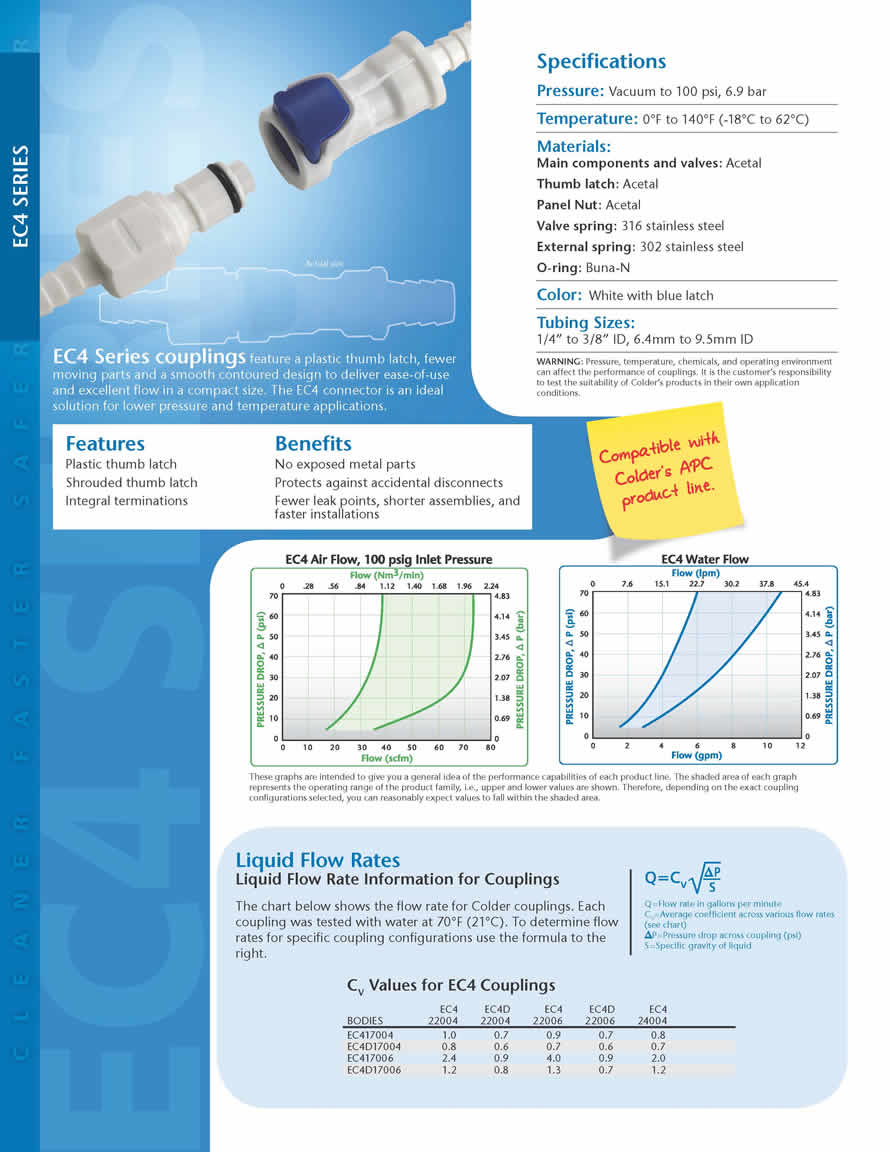

Specifications
Pressure: Vacuum to 100 psi, 6.9 bar
Temperature: 0°F to 140°F (-18°C to 62°C)
Materials:
Main components and valves: Acetal
Thumb latch: Acetal
Panel Nut: Acetal
Valve spring: 316 stainless steel
External spring: 302 stainless steel
O-ring: Buna-N
Color: White with blue latch
Tubing Sizes:
1/4” to 3/8” ID, 6.4mm to 9.5mm ID

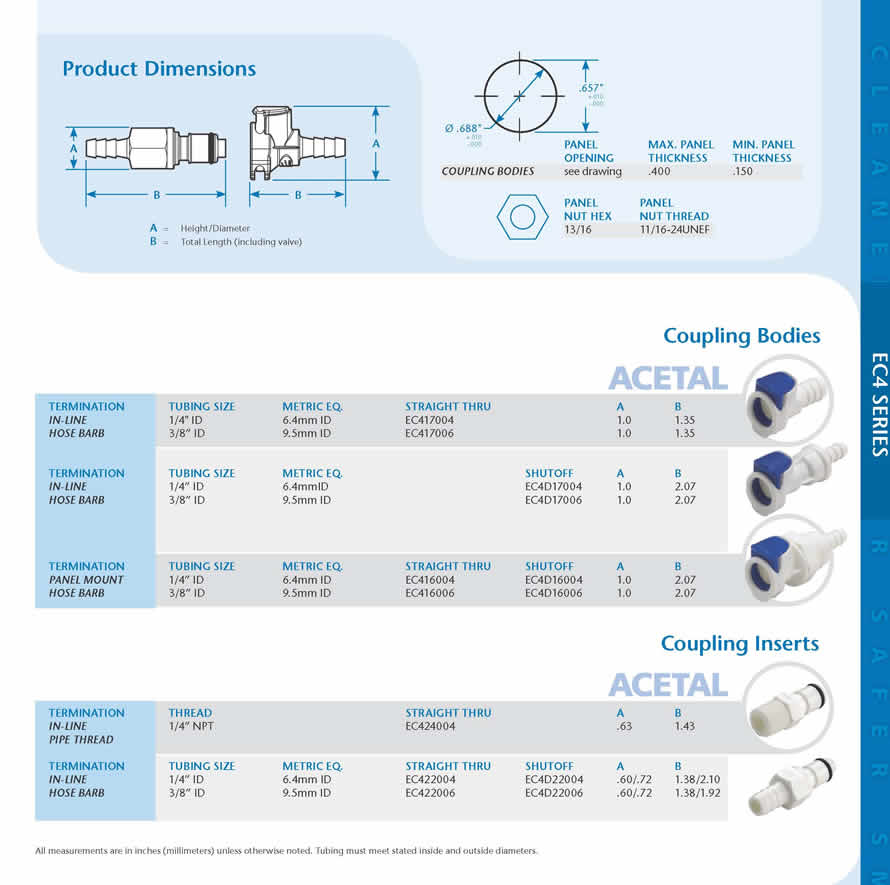

订货型号：
EC417004
EC417006
EC4D17004
EC4D17006
EC4D16004
EC4D16006
EC424004
EC422004
EC4D22004
EC422006
EC4D22006

CPC EC4系列快速接头 - EC4 Series couplings 低压和低温应用EC4连接器 EC4系列快速接头采用塑料拇指锁、更少的活动部件和光滑的轮廓设计，以紧凑的尺寸提供易用性和出色的流动性。EC4连接器是低压和低温应用的理想解决方案。EC4 Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The EC4 connector is an ideal solution for lower pressure and temperature applications. EC4系列快速接头 EC4 Series couplings 规格压力：真空至100 psi，6.9 bar 温度：0°F至140°F（-18°C至62°C）材料：主要部件和阀门：乙缩醛（二乙醇），醛缩醇拇指锁：乙缩醛面板螺母：缩醛阀弹簧：316不锈钢外弹簧：302不锈钢 O型圈：丁腈橡胶颜色：白色，带蓝色闩锁管道尺寸：内径1/4“至3/8”，内径6.4mm至9.5mm Specifications Pressure: Vacuum to 100 psi, 6.9 bar Temperature: 0°F to 140°F (-18°C to 62°C) Materials: Main components and valves: Acetal Thumb latch: Acetal Panel Nut: Acetal Valve spring: 316 stainless steel External spring: 302 stainless steel O-ring: Buna-N Color: White with blue latch Tubing Sizes: 1/4” to 3/8” ID, 6.4mm to 9.5mm ID 订货型号： EC417004 EC417006 EC4D17004 EC4D17006 EC4D16004 EC4D16006 EC424004 EC422004 EC4D22004 EC422006 EC4D22006
