AseptiQuik/无菌连接器 AseptiQuik DC连接器
AseptiQuik DC连接器
AseptiQuik DC Connector

AseptiQuik DC连接器是第一个集全功能于一身的一次性连接器,同时提供无菌连接和无菌断开。制药商可以选用AseptiQuik DC连接器,即使是在非无菌环境中, 也能快速和轻易地进行无菌连接。 AseptiQuik DC直观的“咔嗒-下拉-旋转”的设计,使用户能够轻松地传输流体,减低操作失误。 传输完成后,一个简单的步骤就可以断开连接,通过防止外部生物体进入流体通道,流体得以保持无菌。 连接器坚固的设计并配有自动截止阀,不需要使用卡箍、夹具或焊接机, 也能确保可靠的连接。AseptiQuik DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. With the new AseptiQuik DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. AseptiQuik DC’s intuitive CLICK-PULL-TWIST design enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple one-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector’s robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.



功能与效益

CLICK-PULL-TWIST Design
Intuitive three-step connection process reduces risk of operator error
Simple One-Step Disconnection
Maintains media sterility
Membrane Pull Tabs
Ensure simultaneous and secure removal of both membranes
Automatic Shutoff Valves
Eliminate the need for pinch clamps or tube welders
Robust Construction
Integrated lock ring and innovative seal technology ensure reliable performance
Market Availability
Open access through multiple supply chain partners

产品规格

Pressure: Up to 60 psi, 4.4 bar
Temperature: 39°F to 104°F (4°C to 40°C)
Typical Flow Rate: Cv~ .077 to 1.9


Materials:
Connector:
Polycarbonate (white), USP Class VI, ADCF

Lock Ring and Thumblatch: Polycarbonate (blue), USP Class VI, ADCF
Pull Tabs:

Polycarbonate (blue, standard version), USP Class VI, ADCF
Caps:
Polypropylene (clear), USP Class VI, ADCF

Seals:
Silicone (clear), platinum-cured, USP Class VI, ADCF

Membrane:
Polyethylene (standard version)

Springs: 316 Stainless steel
Termination Size:
1/2" hose barb (12.7mm) 3/8" hose barb (9.5mm) and 1/4" hose bard (6.4mm)


Sterilization:
Gamma:
Up to 50kGy irradiation

AseptiQuik系列连接器

CPC AseptiQuik系列产品便是为帮助制药商快速轻松地传输生物介质而研发,即使在非无菌环境中(在生物制造工艺中)转移培养基也始终可靠确保无菌。AseptiQuik系列不分公母接头,在有菌环境中也可以实现快速、方便的无菌连接,降低批量生产中的污染风险。接头的耐用设计可以保证可靠的性能,且无需使用卡夫、夹具和焊管机,保证可靠性能和可重复性。AseptiQuik可以满足从1/8英寸到1英寸的各种流量需求。为了进一步简化生物制药,CPC在此前传统方案之上创新了连接技术。作为CPC AseptiQuik G 系列不分公母无菌连接器的最新成员,AseptiQuik G DC 在无菌连接的基础上增加了无菌断开功能。AseptiQuik G DC 无需任何辅助设备进行操作,如此制造商能够显著提高操作效率,简单高效。直观的“翻转-咔哒-拉拔”三步骤连接过程确保用户使用方便,降低因操作失误所导致的风险。



Colder AseptiQuik DC Flow

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Cv值

Single Shut-Off Cv~0.77 max (1/4" hose barb)
Cv~1.1 max (3/8" hose barb)
Cv~1.2 max (1/2" hose barb)
Legend
Legend

产品
Bodies

AQCDC17004
1/4 Hose Barb AseptiQuik DC Body
AQCDC17006
3/8 Hose Barb AseptiQuik DC Body

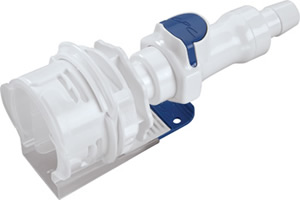

AQCDC17008
1/2 Hose Barb AseptiQuik DC Body

Inserts

AQCDC22004
1/4 Hose Barb AseptiQuik DC Insert
AQCDC22006
3/8 Hose Barb AseptiQuik DC Insert

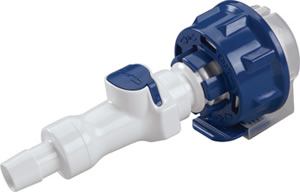

AQCDC22008
1/2 Hose Barb AseptiQuik DC Insert



1/4 Hose Barb AseptiQuik DC Body
AQCDC17004
1/4 Hose Barb AseptiQuik DC Body


3/8 Hose Barb AseptiQuik DC Body
AQCDC17006
3/8 Hose Barb AseptiQuik DC Body


1/2 Hose Barb AseptiQuik DC Body
AQCDC17008
1/2 Hose Barb AseptiQuik DC Body

Inserts

1/4 Hose Barb AseptiQuik DC Insert
AQCDC22004
1/4 Hose Barb AseptiQuik DC Insert


3/8 Hose Barb AseptiQuik DC Insert
AQCDC22006
3/8 Hose Barb AseptiQuik DC Insert


1/2 Hose Barb AseptiQuik DC Insert
AQCDC22008
1/2 Hose Barb AseptiQuik DC Insert
