AseptiQuik G不分公母无菌连接器 AseptiQuik/无菌连接器 AseptiQuik G
Genderless AseptiQuik G Connectors

AseptiQuik G

AseptiQuik G不分公母无菌连接器即使在非无菌环境中，也能实现快速的无菌连接，易于使用的无公母设计简化了一次性系统集成设计，大限度地减少操作失误的风险。连接器坚固的构造提高了产品性能， 同时增强了用户信心，不需要使用卡箍、夹具或焊管机。生物制药生产商受益于全方位可互换的1/4" 至3/4" 的流体解决方案，通过一次性连接技术的领导者所提供的高质量连接器，实现无菌连接。Genderless AseptiQuik G Connectors enable quick and easy sterile connections, even in non-sterile environments. The easy-to-use genderless design simplifies system integration and minimizes the risk of operator error. The connectors' robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from a full range of interchangeable 1/4” to 3/4” flow solutions with the quality and market availability they expect from the leader in single-use connection technology.

AseptiQuik 一次性使用的佳选择

AseptiQuik G Video

功能与效益

Genderless Design
Eases integration of single-use systems
with universal mating between G connectors
Robust construction
Repeatable and reliable performance
with no additional hardware required
FLIP-CLICK-PULL
Innovative three-step connection process
reduces risk of operator error
Integrated pull tab covers
Pull tabs act as protective cover reducing
covers part complexity and ensure simultaneous
removal of both membranes
CPC Click
Audible confirmation of assembly

产品规格

Pressure: Up to 60 psi, 4.1 bar
Up to 75 psi, 5.1 bar for 48 hours
Temperature: 34°F to 104°F (1°C to 40°C)
Sterilization:
Gamma: Up to 50kGy irradiation

Up to 50kGy irradiation
AutoClave High Temp (HT) Version:

Up to 266°F (130°C) for 30 minutes

Termination Size:
1/4", 3/8”, 1/2", 3/4" ID hose barb (6.4mm,
9.5mm, 12.7mm, 19.0mm) and 3/4" sanitary

Materials:
Main Components:
Polycarbonate (white), USP Class VI, ADCF

Pull Tabs/Caps:

Polycarbonate (blue, standard version),
USP Class VI, ADCF
Polycarbonate (white, HT version),
USP Class VI, ADCF
Seals:
Silicone (clear), platinum-cured,
USP Class VI, ADCF

Membrane:
Polyethylene (standard version),
USP Class VI, ADCF
Hydrophobic polyethersulfone with PTFE strip (HT version),
USP Class VI

AseptiQuik系列连接器

CPC AseptiQuik系列产品便是为帮助制药商快速轻松地传输生物介质而研发，即使在非无菌环境中（在生物制造工艺中）转移培养基也始终可靠确保无菌。AseptiQuik系列不分公母接头，在有菌环境中也可以实现快速、方便的无菌连接，降低批量生产中的污染风险。接头的耐用设计可以保证可靠的性能，且无需使用卡夫、夹具和焊管机，保证可靠性能和可重复性。AseptiQuik可以满足从1/8英寸到1英寸的各种流量需求。为了进一步简化生物制药，CPC在此前传统方案之上创新了连接技术。作为CPC AseptiQuik G 系列不分公母无菌连接器的最新成员，AseptiQuik G DC 在无菌连接的基础上增加了无菌断开功能。AseptiQuik G DC 无需任何辅助设备进行操作，如此制造商能够显著提高操作效率，简单高效。直观的“翻转-咔哒-拉拔”三步骤连接过程确保用户使用方便，降低因操作失误所导致的风险。

AseptiQuik G Flow

This graph is intended to give you a general idea of the performance capabilities of each product line. The shaded area of the graph represents the operating range of the product family, i.e. upper and lower values are shown. Therefore, depending on the exact coupling configurations selected, you can reasonably expect values to fall within the shaded area.

Cv值

straight-through
Cv 1.74 for ?” to ?” and .19 for 1/8” to 1/8”.

产品

AQG17004 1/4 Hose Barb Genderless AseptiQuik G Connector Body	AQG17004HT 1/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature	AQG17006 3/8 Hose Barb Genderless AseptiQuik G Connector Body	AQG17006HT 3/8 Hose Barb Genderless AseptiQuik G Connector Body- High Temperature
AQG17008 1/2 Hose Barb Genderless AseptiQuik G Connector Body	AQG17008HT 1/2 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature	AQG17012 3/4 Hose Barb Genderless AseptiQuik G Connector Body	AQG17012HT 3/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG33012 3/4 Sanitary Genderless AseptiQuik G Connector Body	AQG33012HT 3/4 Sanitary Genderless AseptiQuik G Connector Body - High Temperature

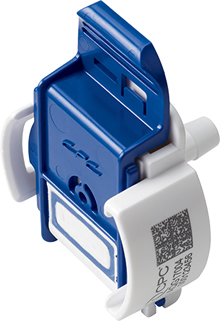

1/4 Hose Barb Genderless AseptiQuik G Connector Body
AQG17004
1/4 Hose Barb Genderless AseptiQuik G Connector Body

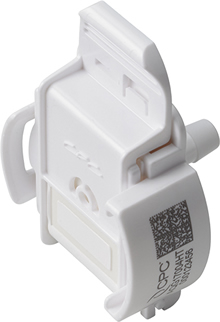

1/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG17004HT
1/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature

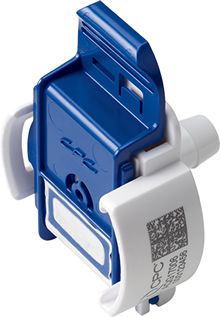

3/8 Hose Barb Genderless AseptiQuik G Connector Body
AQG17006
3/8 Hose Barb Genderless AseptiQuik G Connector Body

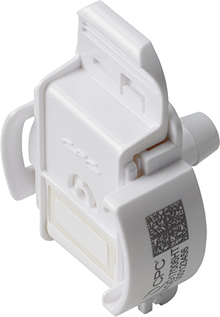

3/8 Hose Barb Genderless AseptiQuik G Connector Body- High Temperature
AQG17006HT
3/8 Hose Barb Genderless AseptiQuik G Connector Body- High Temperature

1/2 Hose Barb Genderless AseptiQuik G Connector Body
AQG17008
1/2 Hose Barb Genderless AseptiQuik G Connector Body

1/2 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG17008HT
1/2 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature

3/4 Hose Barb Genderless AseptiQuik G Connector Body
AQG17012
3/4 Hose Barb Genderless AseptiQuik G Connector Body

3/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature
AQG17012HT
3/4 Hose Barb Genderless AseptiQuik G Connector Body - High Temperature

3/4 Sanitary Genderless AseptiQuik G Connector Body
AQG33012
3/4 Sanitary Genderless AseptiQuik G Connector Body

3/4 Sanitary Genderless AseptiQuik G Connector Body - High Temperature
AQG33012HT
3/4 Sanitary Genderless AseptiQuik G Connector Body - High Temperature
