AseptiQuik/无菌连接器 AseptiQuik STC
AseptiQuik STC Connectors integrate the AseptiQuik sterile connector and the Steam-Thru II SIP connector
AseptiQuik STC

AseptiQuikSTC连接器集成AseptiQuik无菌连接器和 Steam-Thru II 蒸汽灭菌连接器，从而使制药商使用不锈钢设备和一次性系统衔接时变得更灵活。AseptiQuik STC连接器是Steam-Thru II整合了一个AseptiQuik G或AseptiQuik C无菌连接器，可以直接通过卫生接口安装到不锈钢容器上。AseptiQuik STC连接器利用整合了的AseptiQuik G无公母的设计，大大简化了无菌接口端的集成。同时AseptiQuik STC连接器整合了一个AseptiQuik C无菌连接器，允许系统进行公母无菌连接。AseptiQuik STC Connectors integrate the AseptiQuik sterile connector and the Steam-Thru II SIP connector, giving manufacturers with even greater flexibility for hybrid stainless steel and single-use processing. The AseptiQuik STC connector combines either an AseptiQuik G or AseptiQuik C sterile connector with a Steam-Thru II connection that can be mounted directly to a stainless steel vessel via a sanitary termination. AseptiQuik STC connectors utilizing an AseptiQuik G sterile connector offer a genderless design, simplifying system integration at the aseptic connector end. AseptiQuik STC connectors utilizing an AseptiQuik C sterile connector allow system designers to incorporate a keyed female-to-male connection at the aseptic connector end.

通过卫生接口将两个接头连接起来使AseptiQuik无菌连接器实现了与不锈钢系统的一体蒸汽在位灭菌（SIP）。蒸汽在位灭菌（SIP）结束后，一系列的一次性系统可以与不锈钢系统连接。SIP可以提前完成，通过一端的AseptiQuik实现快速和简易的无菌连接，从而省却了在收获之前等待SIP的30-60分钟的时间。The union of the two connectors into a single unit through a sanitary clamp allows an AseptiQuik sterile connection to be steamed on to stainless equipment via SIP. After the SIP cycle, a wide range of single-use systems can be connected. The SIP process can be done in advance allowing a quick and easy sterile connection to the AseptiQuik half without having to wait 30-60 minutes for SIP prior to harvest.

AseptiQuik STC Connectors Spec Sheet

功能与效益

AseptiQuik design
Innovative three-step connection process reduces risk of operator error
Genderless Design
Eases integration of single-use systems with universal mating between AseptiQuik G Connectors
Robust Construction
Repeatable and reliable performance with no additional hardware required
Patented Steam Valve Design
Allows sterile connection and disconnection to stainless equipment and permits a high media flow rate.
Sanitary Interface Between the Two Connectors
More secure connection than tubing with cable ties
CPC Click
Audible confirmation of assembly steps
Market Availability
Open access through multiple supply chain partners

产品规格

Pressure:
Steam Position: Up to 35 psi, 2.4 bar
Flow Position: Up to 20 psi, 1.4 bar

Temperature:
Steam Position: Up to 275°F ( 135°C) for 60 minutes
Flow Position: 39°F to 104°F (4°C to 40°C)

Materials:
Main Components: AseptiQuik - Polycarbonate (white), USP Class VI, ADCF
Steam-Thru II - Polysulfone (amber tint), USP Class VI, ADCF
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCF
Pull Tabs: Polycarbonate (blue, standard version), USP Class VI, ADCF
Polycarbonate (white, HT version), USP Class VI, ADCF
Caps: Polypropylene (clear), USP Class VI, ADCF
Membrane: Polyethylene (standard version), USP Class VI, ADCF
Hydrophobic polyethersulfone (HT versions), USP Class VI
Clamp: Nylon 66 (white), USP Class VI

Sterilization:
Gamma: Up to 50 kGy irradiation.
Autoclave:
High Temp (HT) version:
Up to 266°F (130°C) for 30 minutes (AQSTC)

Up to 266°F (130°C) for 60 minutes (AQGSTC)

Note: a slight rotation of the clamp nut may be needed after autoclave.

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. Use the graph above as a guide.

Cv值

straigh-through Cv ~ 0.19 (2.74) max
single shut-off Cv ~ 0.08 (1.15) max

产品

AQGSTC2330900 3/4 Sanitary AseptiQuik G STC	AQGSTC2330900HT 3/4 Sanitary AseptiQuik G STC - High Temperature
AQGSTC2331000 1-1/2 Sanitary AseptiQuik G STC	AQGSTC2331000HT 1-1/2 Sanitary AseptiQuik G STC - High Temperature
AQSTC2330900 3/4 Sanitary AseptiQuik STC	AQSTC2330900HT 3/4 Sanitary AseptiQuik STC - High Temperature
AQSTC2331000 1-1/2 Sanitary AseptiQuik STC	AQSTC2331000HT 1-1/2 Sanitary AseptiQuik STC - High Temperature

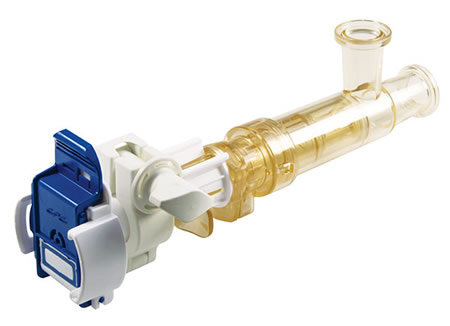

3/4 Sanitary AseptiQuik G STC
AQGSTC2330900
3/4 Sanitary AseptiQuik G STC

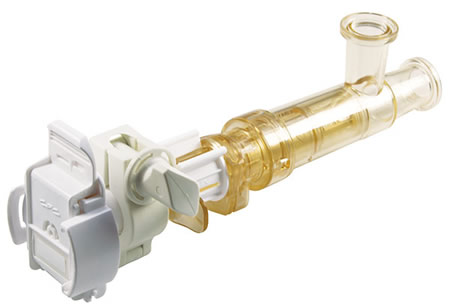

3/4 Sanitary AseptiQuik G STC - High Temperature
AQGSTC2330900HT
3/4 Sanitary AseptiQuik G STC - High Temperature

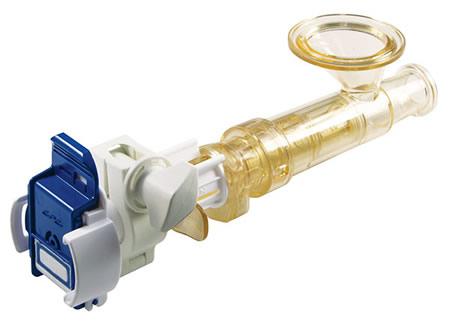

1-1/2 Sanitary AseptiQuik G STC
AQGSTC2331000
1-1/2 Sanitary AseptiQuik G STC

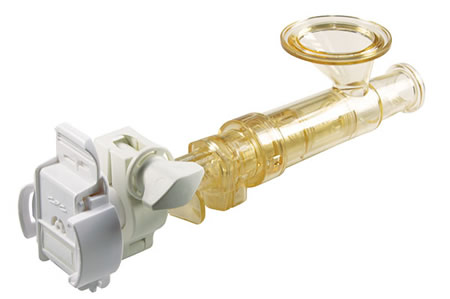

1-1/2 Sanitary AseptiQuik G STC - High Temperature
AQGSTC2331000HT
1-1/2 Sanitary AseptiQuik G STC - High Temperature

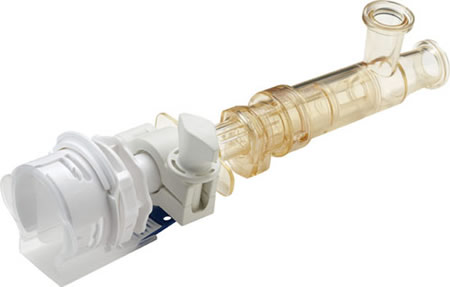

Quick View3/4 Sanitary AseptiQuik STC
AQSTC2330900
3/4 Sanitary AseptiQuik STC

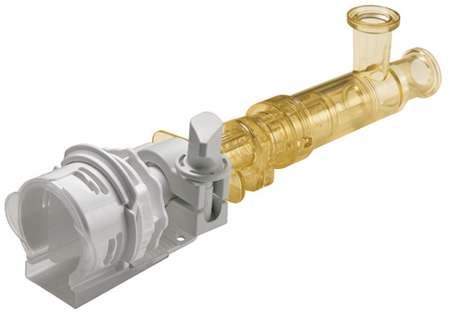

3/4 Sanitary AseptiQuik STC - High Temperature
AQSTC2330900HT
3/4 Sanitary AseptiQuik STC - High Temperature

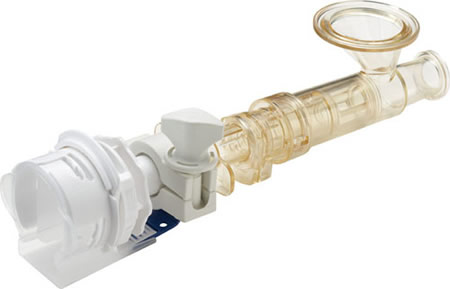

1-1/2 Sanitary AseptiQuik STC
AQSTC2331000
1-1/2 Sanitary AseptiQuik STC

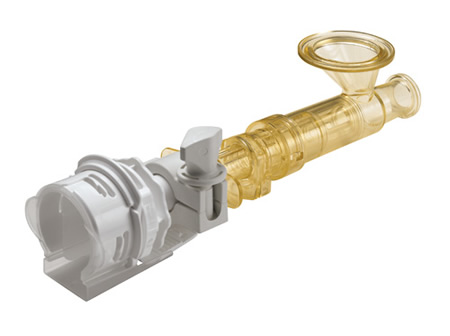

1-1/2 Sanitary AseptiQuik STC - High Temperature
AQSTC2331000HT
1-1/2 Sanitary AseptiQuik STC - High Temperature
