CPC桶/分装连接器 DrumQuik PUR (High Purity Cleanroom)
CPC DrumQuik PUR High Purity Cleanroom

无论您是使用简便油桶，桶或中型散装容器（IBCs）， 我们的DrumQuik分配系统适合几乎任何容器使用，“封闭”地提取容器中的化学品或食品为主的液体。备有不同尺寸和材料选择的汲取管系统，我们的解决方案有效减少危险品暴露，同时保护您的流体本身免受污染。安全地连接化学品。不管您的应用程序条件为何，安全性必然是您的优先考虑。当涉及到化学品的处理，没有其他公司比CPC更认真地研发快速断开管件、密封、接头和化学分配系统， 以保护工人的作业安全，防止化学品泄漏和溢出污染环境。我们的耐化学腐蚀的产品满足各种应用，如半导体、织物和陶瓷染料、调味剂、液晶显示器、太阳能电池、医药制造和化学品管理等等。DrumQuik PUR is changing the world of chemical management with its unique closed-system design. The DrumQuik dispensing system for smarter chemical management provides safe, easy and economical extraction of chemicals from drums, jerricans and IBC totes—while reducing spills, containing hazardous fumes and enhancing workplace safety.

美国CPC塑料快速接头Drumquik系列分装接头 DrumQuik PUR密闭式分配连接系统
DrumQuik PRO /DrumQuik PUR DrumQuik_Dispensing_Systems分装系统
Colder DrumQuik Drum Dispensing Sytsem
CPC DrumQuik桶/分装连接器PDF Catalog

功能与效益

Quick connect/disconnect
Faster container change-outs
Automatic shutoff valve
Stops flow when disconnected
Disposable container insert
Reduces chemical exposure and messy handlig

产品规格

压力
Uncoupled: Vacuum to 45 psig (3.1 bar)
Coupled: Vacuum to drum rating

温度

Drum Insert: -20°to 120°F (-29°to 49°C)
Coupler: PVDF, 0° to 120°F (-18° to 49°C)

材料

Drum insert & dip-tube: Virgin polyethylene (HDPE)
Shipping plug: Virgin polyethylene (HDPE), FKM Coupler: PVDF
Spring (coupler only): 316 stainless steel, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 stainless steel (TESS)

密封材料

Coupler seals: EPDM, FKM, Simriz UHP FFKM Perfluoroelastomer
Bung seal: Polyolefin, EPDM, FKM
Shipping plug seal: EPDM, FKM

Torque specifications

2" Buttress - 20ft-lbs (27 N m)
BCS 56x4 - 20ft-lbs (27 N m)
2" NPS (plastic drum) - 20ft-lbs (27 N m)
2" NPS (steel drum) - 15ft-lbs (20 N m)

Shipping plug - hand tight

Note: The torque specifications listed above are general recommendations which may need to be adjusted + or – depending on specific application

产品Dip-Tubes

DQPURDT0410 Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans	DQPURDT0985 Dip-tube 35.5" or 905mm long for 55gal/200L Drums	DQPURDT1070 Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs	DQPURDT1274 Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs

Drum Inserts

DQPUR202BUT 2" Drum Insert with American Buttress Thread and EPDM O-Rings (North American Plastic Drums)	DQPUR202BUT202 2" Drum Insert with American Buttress Thread and FKM (Viton) O-Rings (North American Plastic Drums)	DQPUR2BUT0985 Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug	DQPUR2BUT0985202 Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
DQPUR2BUT1274 Drum Insert Assembly 1274mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug Seal

Fittings, Valves and Accessories

DQPURDCN0812 1/2" Flare X 3/4" Flare Double Containment Nut	DQPURDCN1216 3/4" Flare X 1" Flare Double Containment Nut	DQPURDCPM0812 1/2" Flare X 3/4" Flare Panel Mount Double Containment Nut	DQPURDCPM1216 3/4" Flare X 1" Flare Panel Mount Double Containment Nut
DQPURFI1216 3/4" Female Flare x 1" Male Flare PFA Flame Increaser	DQPURFR1208 3/4" Female X 1/2" PFA Male Flare Reducer	DQPURFT08 Flaring Tool for 1/2" Tubing	DQPURFT12 Flaring Tool for 3/4" Tubing
DQPURMC0404 1/4" Flare X 1/4" NPT PVDF Male Connector	DQPURMC0604 3/8" Flare X 1/4" NPT PVDF Male Connector	DQPURMC0804 1/2" Flare X 1/4" NPT PVDF Male Connector	DQPURSE0808 1/2" Female Flare X 1/2" Male Flare PFA Sweep Elbow Coupler
DQPURSE1212 3/4" Female Flare X 3/4" Male Flare PFA Sweep Elbow Coupler	DQPURSP Polyethylene Shipping Plug with EPDM Seal	DQPURSP202 Polyethylene Shipping Plug with FKM (Viton) O-Ring

O-Rings and Seals

DQPURCPSEALFKM FKM (Viton) O-Ring Kit for DrumQuik PUR Coupler	DQPURCPSEALSMZ FFKM (Simriz) O-Ring Kit for DrumQuik PUR Coupler	DQPURDISEALFEP FEP Encapsulated Silicone Bung Seal for Drum Insert	DQPURDISEALPOE POE Coupling Insert Seal

Other

DQPUR120112 3/4" Flare Coupler with FKM (Viton) O-Ring and (PEEK) Spring	DQPUR120112203 3/4" Flare Coupler with FFKM (Simriz) O-Ring and (PEEK) Spring	DQPUR120112208 3/4" Flare Coupler with FKM (Viton) O-Ring and Polyphenylene Sulfide Spring	DQPUR120112209 3/4" Flare Coupler with FFKM (Simriz) O-Ring and Polyphenylene Sulfide Spring
DQPUR120112210 3/4 Flare Coupler with FKM (Viton) O-Ring and PTFE Encapsulated 316 Stainless Steel Spring	DQPUR120112211 3/4 Flare Coupler with FFKM (Simriz) O-Ring, FKM Vent Seal, and PTFE Encapsulated 316 Stainless Steel Spring

Sample Kits

DQPURSAMP202 Sample Kit with 1 DQPUR120112 (FKM (Viton) and PEEK) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)	DQPURSAMP209 Sample Kit with 1 DQPUR120112 (PPS and SimrizSpring) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)

Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans
DQPURDT0410
Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans

Dip-tube 35.5" or 905mm long for 55gal/200L Drums
DQPURDT0985
Dip-tube 35.5" or 905mm long for 55gal/200L Drums

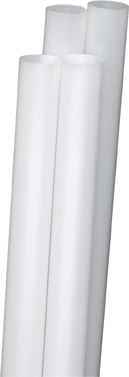

Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs
DQPURDT1070
Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs

Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs
DQPURDT1274
Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs

Drum Inserts

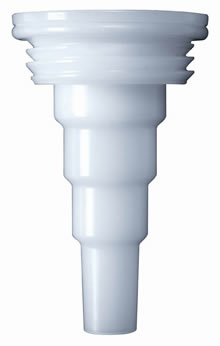

2" Drum Insert with American Buttress Thread and EPDM O-Rings (North American Plastic Drums)
DQPUR202BUT
2" Drum Insert with American Buttress Thread and EPDM O-Rings (North American Plastic Drums)

2" Drum Insert with American Buttress Thread and FKM (Viton) O-Rings (North American Plastic Drums)
DQPUR202BUT202
2" Drum Insert with American Buttress Thread and FKM (Viton) O-Rings (North American Plastic Drums)

Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
DQPUR2BUT0985
Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug

Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
DQPUR2BUT0985202
Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug

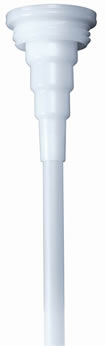

Drum Insert Assembly 1274mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug Seal
DQPUR2BUT1274
Drum Insert Assembly 1274mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug Seal

Fittings, Valves and Accessories

1/2" Flare X 3/4" Flare Double Containment Nut
DQPURDCN0812
1/2" Flare X 3/4" Flare Double Containment Nut

3/4" Flare X 1" Flare Double Containment Nut
DQPURDCN1216
3/4" Flare X 1" Flare Double Containment Nut

1/2" Flare X 3/4" Flare Panel Mount Double Containment Nut
DQPURDCPM0812
1/2" Flare X 3/4" Flare Panel Mount Double Containment Nut

3/4" Flare X 1" Flare Panel Mount Double Containment Nut
DQPURDCPM1216
3/4" Flare X 1" Flare Panel Mount Double Containment Nut

3/4" Female Flare x 1" Male Flare PFA Flame Increaser
DQPURFI1216
3/4" Female Flare x 1" Male Flare PFA Flame Increaser

3/4" Female X 1/2" PFA Male Flare Reducer
DQPURFR1208
3/4" Female X 1/2" PFA Male Flare Reducer

Flaring Tool for 1/2" Tubing
DQPURFT08
Flaring Tool for 1/2" Tubing

Flaring Tool for 3/4" Tubing
DQPURFT12
Flaring Tool for 3/4" Tubing

1/4" Flare X 1/4" NPT PVDF Male Connector
DQPURMC0404
1/4" Flare X 1/4" NPT PVDF Male Connector

3/8" Flare X 1/4" NPT PVDF Male Connector
DQPURMC0604
3/8" Flare X 1/4" NPT PVDF Male Connector

1/2" Flare X 1/4" NPT PVDF Male Connector
DQPURMC0804
1/2" Flare X 1/4" NPT PVDF Male Connector

1/2" Female Flare X 1/2" Male Flare PFA Sweep Elbow Coupler
DQPURSE0808
1/2" Female Flare X 1/2" Male Flare PFA Sweep Elbow Coupler

3/4" Female Flare X 3/4" Male Flare PFA Sweep Elbow Coupler
DQPURSE1212
3/4" Female Flare X 3/4" Male Flare PFA Sweep Elbow Coupler

Polyethylene Shipping Plug with EPDM Seal
DQPURSP
Polyethylene Shipping Plug with EPDM Seal

Polyethylene Shipping Plug with FKM (Viton) O-Ring
DQPURSP202
Polyethylene Shipping Plug with FKM (Viton) O-Ring

O-Rings and Seals

FKM (Viton) O-Ring Kit for DrumQuik PUR Coupler
DQPURCPSEALFKM
FKM (Viton) O-Ring Kit for DrumQuik PUR Coupler

FFKM (Simriz) O-Ring Kit for DrumQuik PUR Coupler
DQPURCPSEALSMZ
FFKM (Simriz) O-Ring Kit for DrumQuik PUR Coupler

FEP Encapsulated Silicone Bung Seal for Drum Insert
DQPURDISEALFEP
FEP Encapsulated Silicone Bung Seal for Drum Insert

POE Coupling Insert Seal
DQPURDISEALPOE
POE Coupling Insert Seal

Other

3/4" Flare Coupler with FKM (Viton) O-Ring and (PEEK) Spring
DQPUR120112
3/4" Flare Coupler with FKM (Viton) O-Ring and (PEEK) Spring

3/4" Flare Coupler with FFKM (Simriz) O-Ring and (PEEK) Spring
DQPUR120112203
3/4" Flare Coupler with FFKM (Simriz) O-Ring and (PEEK) Spring

3/4" Flare Coupler with FKM (Viton) O-Ring and Polyphenylene Sulfide Spring
DQPUR120112208
3/4" Flare Coupler with FKM (Viton) O-Ring and Polyphenylene Sulfide Spring

3/4" Flare Coupler with FFKM (Simriz) O-Ring and Polyphenylene Sulfide Spring
DQPUR120112209
3/4" Flare Coupler with FFKM (Simriz) O-Ring and Polyphenylene Sulfide Spring

3/4 Flare Coupler with FKM (Viton) O-Ring and PTFE Encapsulated 316 Stainless Steel Spring
DQPUR120112210
3/4 Flare Coupler with FKM (Viton) O-Ring and PTFE Encapsulated 316 Stainless Steel Spring

3/4 Flare Coupler with FFKM (Simriz) O-Ring, FKM Vent Seal, and PTFE Encapsulated 316 Stainless Steel Spring
DQPUR120112211
3/4 Flare Coupler with FFKM (Simriz) O-Ring, FKM Vent Seal, and PTFE Encapsulated 316 Stainless Steel Spring

Sample Kits

Sample Kit with 1 DQPUR120112 (FKM (Viton) and PEEK ) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
DQPURSAMP202
Sample Kit with 1 DQPUR120112 (FKM (Viton) and PEEK ) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)

Sample Kit with 1 DQPUR120112 (PPS and Simriz Spring) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
DQPURSAMP209
Sample Kit with 1 DQPUR120112 (PPS and Simriz Spring) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
