Everis PLQ4 快速接头连接器由高性能热塑性塑料聚苯砜 PPSU
Everis PLQ4 Series of quick disconnects

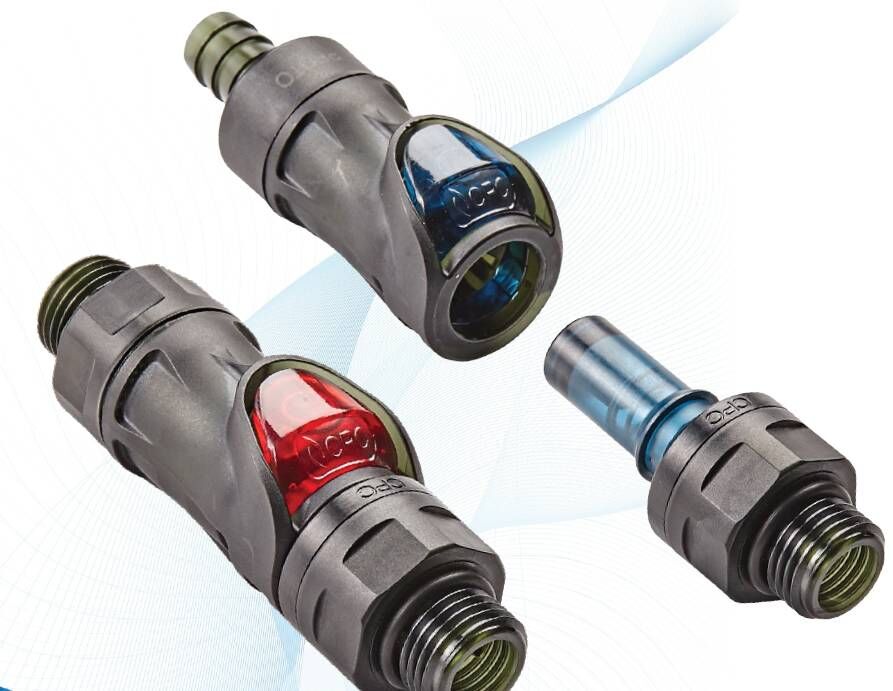

Everis PLQ4系列快速连接器提供超可靠的连接和无滴漏断开,可保护通过液冷方式冷却的敏感电子系统。 Everis PLQ4连接器由高性能热塑性塑料聚苯砜(PPSU)制成,重量轻,不易受到电偶腐蚀,并具有UL94 V0阻燃等级,易于使用,使其成为电子产品液体冷却的理想选择。 这些行业领先的连接器提供高流量连接,可优化热管理系统的性能。 Everis PLQ4系列使用正在申请专利CPC开发的阀门技术,可消除滴漏,并且专门针对长期连接状态而设计。

The Everis? PLQ4 Series of quick disconnects provides ultra-reliable connections and dripless disconnections that protect sensitive electronic systems being cooled via liquid cooling. Built of polyphenylsulfone (PPSU), a high-performance thermoplastic, the Everis PLQ4 connector is lightweight and inherently resistant to galvanic corrosion. Everis PLQ4 connectors are rated UL94 V0 flame retardant and are easy to use making them a perfect choice for liquid cooling of electronics applications. These industry-leading connectors offer a high-flow capacity to optimize thermal management system performance. The Everis PLQ4 Series uses patent-pending CPC-developed valve technology that eliminates drips and is specifically designed for long-term connected states.

Everis PLQ4 快速接头连接器由高性能热塑性塑料聚苯砜 PPSU
Everis PLQ4 Series of quick disconnects





PDF 图标在 HPC 和数据中心应用中使用高性能聚合物
PDF 图标金属或塑料快速断开?主要考虑因素
PDF IconUse of High-Performance Polymers in HPC and Data Center Applications
PDF IconMetal or plastic quick disconnects? Key considerations



特征

- 由高性能PPSU材料制成
- 无溢流阀设计
- 高流量尺寸比和低压降
- 符合人体工程学的机身和闩锁设计
- 连接时发出咔哒声
- 倒钩和螺纹端接选项
- 强大的产品测试(产品测试到 10,000 次循环)



好处

- 重量轻、耐用且化学兼容广泛使用的液体冷却液和 UL94 VO 阻燃剂
- 连接或断开时无滴水
- 提高小空间的冷却效率
- 简单、直观的单手操作
- 提供连接保证
- 满足安装或管道连接的偏好
- 具有经过验证的尺寸稳定性的可靠性保证

规格

操作条件(流体传输)

压力范围:

真空至 120 psi, 8.3 bar

温度范围:

0°F 至 240°F ( -17°C 至 115°C )

存储 / 运输:

-40°F 至 240°F ( -40°C 至 115°C )

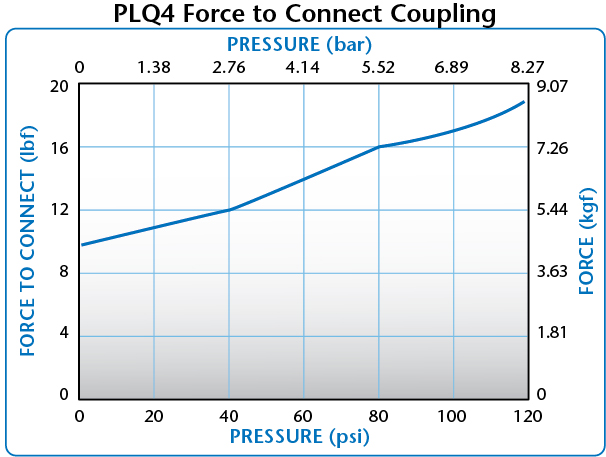

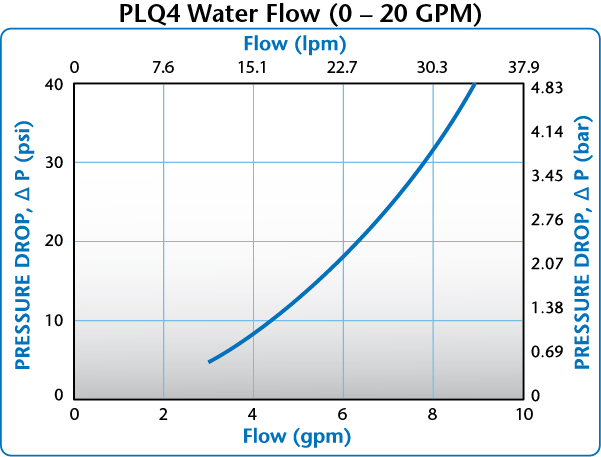

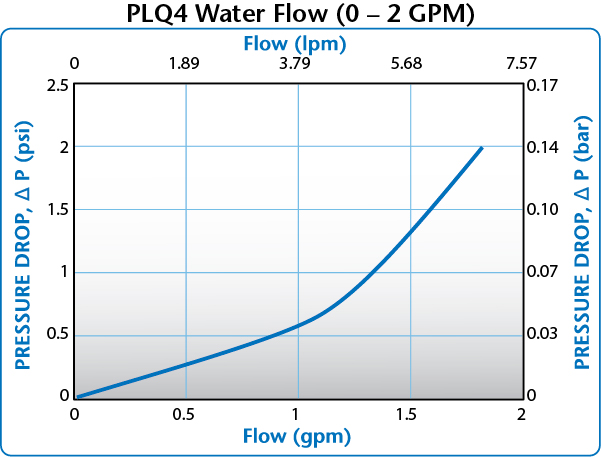

流量系数:

Cv ~ 1.3 (1.1 Kv)

材料

主要外壳组件:

聚苯砜 (PPSU)

阀门和拇指闩锁:

PPSU

气门弹簧(湿式):

不锈钢

外弹簧:

不锈钢

密封件:

三元乙丙橡胶

密封垫片:

聚四氟乙烯

遵守:

符合 RoHS 、 REACH

颜色:

哑光黑配冷蓝色或暖红色

润滑剂:

Krytox  全氟聚醚

其他

油管尺寸:

1/4" 至 3/8" 内径( 6.4 毫米至 9.5 毫米内径)

溢出:

在 0 psi 时每次断开 <0.015 cc

额定压力为 200 psi 时,每次断开 <0.063 cc
包含: <0.063 cc 每次连接

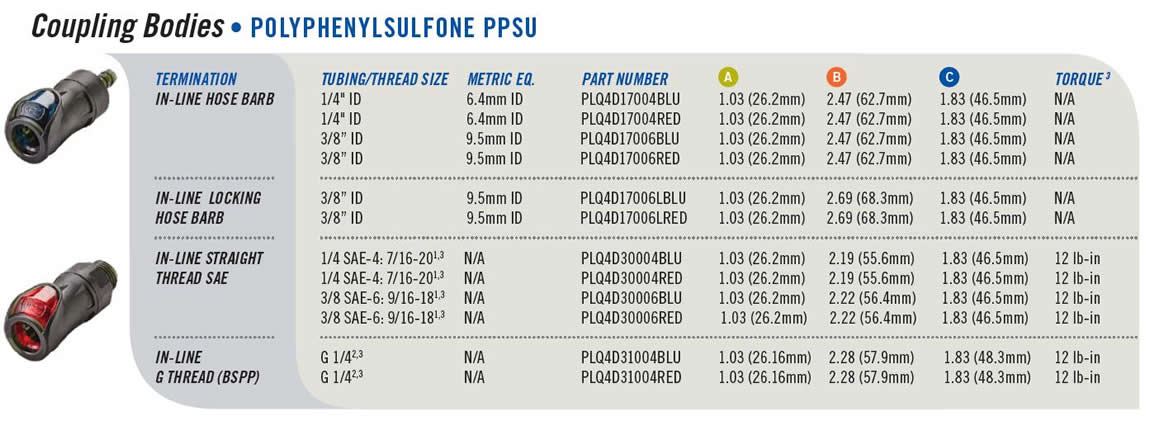

Coupling Bodies ? POLYPHENYLSULFONE PPSU
TERMINATION
IN-LINE HOSE BARB
IN-LINE LOCKING
HOSE BARB
IN-LINE STRAIGHT
THREAD SAE
IN-LINE
G THREAD (BSPP)
TERMINATION
IN-LINE HOSE BARB
IN-LINE LOCKING
HOSE BARB
IN-LINE STRAIGHT
THREAD SAE
IN-LINE
G THREAD (BSPP)
Note:
1All SAE terminations are compatible with SAE J1926-1 ports.
2All G (BSPP) terminations are compatible with ISO 1179-1 ports.
3Do not exceed torque value due to potential damage to coupling. User should consider application factors such as mating material, media, temperature, etc. when
implementing an installation torque specificationw for the product.
A A
B B
A = Height/Diameter
B = Total Length
C = Connected Length
TUBING/THREAD SIZE METRIC EQ. PART NUMBER A
B
C
TORQUE 3
1/4" ID 6.4mm ID PLQ4D17004BLU 1.03 (26.2mm) 2.47 (62.7mm) 1.83 (46.5mm) N/A
1/4" ID 6.4mm ID PLQ4D17004RED 1.03 (26.2mm) 2.47 (62.7mm) 1.83 (46.5mm) N/A
3/8” ID 9.5mm ID PLQ4D17006BLU 1.03 (26.2mm) 2.47 (62.7mm) 1.83 (46.5mm) N/A
3/8” ID 9.5mm ID PLQ4D17006RED 1.03 (26.2mm) 2.47 (62.7mm) 1.83 (46.5mm) N/A
3/8” ID 9.5mm ID PLQ4D17006LBLU 1.03 (26.2mm) 2.69 (68.3mm) 1.83 (46.5mm) N/A
3/8” ID 9.5mm ID PLQ4D17006LRED 1.03 (26.2mm) 2.69 (68.3mm) 1.83 (46.5mm) N/A
1/4 SAE-4: 7/16-201,3 N/A PLQ4D30004BLU 1.03 (26.2mm) 2.19 (55.6mm) 1.83 (46.5mm) 12 lb-in
1/4 SAE-4: 7/16-201,3 N/A PLQ4D30004RED 1.03 (26.2mm) 2.19 (55.6mm) 1.83 (46.5mm) 12 lb-in
3/8 SAE-6: 9/16-181,3 N/A PLQ4D30006BLU 1.03 (26.2mm) 2.22 (56.4mm) 1.83 (46.5mm) 12 lb-in
3/8 SAE-6: 9/16-181,3 N/A PLQ4D30006RED 1.03 (26.2mm) 2.22 (56.4mm) 1.83 (46.5mm) 12 lb-in
G 1/42,3 N/A PLQ4D31004BLU 1.03 (26.16mm) 2.28 (57.9mm) 1.83 (48.3mm) 12 lb-in
G 1/42,3 N/A PLQ4D31004RED 1.03 (26.16mm) 2.28 (57.9mm) 1.83 (48.3mm) 12 lb-in
TUBING/THREAD SIZE METRIC EQ. PART NUMBER A

B
C
TORQUE 3
1/4" ID 6.4mm ID PLQ4D22004BLU 0.87 (22.10mm) 2.30 (58.4mm) 0.59 (15mm) N/A
1/4" ID 6.4mm ID PLQ4D22004RED 0.87 (22.10mm) 2.30 (58.4mm) 0.59 (15mm) N/A
3/8” ID 9.5mm ID PLQ4D22006BLU 0.87 (22.10mm) 2.30 (58.4mm) 0.59 (15mm) N/A
3/8” ID 9.5mm ID PLQ4D22006RED 0.87 (22.10mm) 2.30 (58.4mm) 0.59 (15mm) N/A
3/8” ID 9.5mm ID PLQ4D22006LBLU 0.87 (22.10mm) 2.53 (64.3mm) 0.59 (15mm) N/A
3/8” ID 9.5mm ID PLQ4D22006LRED 0.87 (22.10mm) 2.53 (64.3mm) 0.59 (15mm) N/A
1/4 SAE-4: 7/16-201,3 N/A PLQ4D46004BLU 0.87 (22.10mm) 2.02 (51.3mm) 0.59 (15mm) 12 lb-in
1/4 SAE-4: 7/16-201,3 N/A PLQ4D46004RED 0.87 (22.10mm) 2.02 (51.3mm) 0.59 (15mm) 12 lb-in
3/8 SAE-6: 9/16-181,3 N/A PLQ4D46006BLU 0.87 (22.10mm) 2.05 (52.1mm) 0.59 (15mm) 12 lb-in
3/8 SAE-6: 9/16-181,3 N/A PLQ4D46006RED 0.87 (22.10mm) 2.05 (52.1mm) 0.59 (15mm) 12 lb-in
G 1/42,3 N/A PLQ4D47004BLU 0.87 (22.10mm) 2.11 (53.6mm) 0.67 (17mm
