Everis LQ8 系列接头具有 1/2 英寸流量,用于电子应用的液体冷却。 Everis LQ8 连接器专为热管理应用而设计,提供高流量容量以优化液体冷却系统性能。 它们提供超可靠、无滴漏的连接和断开连接,方便使用,让您高枕无忧,因为它靠近敏感或有价值的设备组件。 LQ8 快速断开器 (QD) 使用正在申请专利的阀门技术,可消除滴水,专为长期使用而设计。 EPDM 密封件是与乙二醇/水冷却剂兼容的标准选项。 如需其他材料和端接选项,请联系 CPC; CPC 销售代表和应用工程师可以帮助您解决任何问题。
特点与优势
特征 |
好处 |
|
防溢设计 |
|
在压力下断开 |
|
冗余密封 |
|
额外保护,防止长时间泄漏 |
|
高流量和低压降 |
|
实现高效且经济高效的冷却 |
|
三元乙丙橡胶密封件 |
|
与常见冷却剂(例如乙二醇/水)的兼容性 |
|
符合人体工程学的机身和闩锁设计 |
|
简单、直观的单手操作和发出安全连接信号的咔嗒声 |
|
低调 |
|
满足空间受限电子应用的尺寸要求 |
|
倒钩和螺纹端接 |
|
适应各种连接偏好,包括用于无夹加强管的锁定倒钩 |
功能与效益 特点优点
无泄漏设计
可以在压力下断开
多重密封件
在长时间使用下也可以保持防漏
高流量和低压降
可实现高效且经济高效的冷却
EPDM 密封圈
与常见的冷却剂(例如乙二醇/水)兼容
接头和指锁符合人体工程学
设计简单,直观的单手操作和可听见的咔嗒声, 确保连接完成
外形小巧
适合空间有限的电子应用尺寸要求
宝塔和螺纹端头
适用多种连接方式包括能搭配推锁式管路的自锁型宝塔
Specifications & Cv Value
操作条件
压力 真空至 120 psi,8.3 bar
工作温度 -17°C to 115°C
运输/存储温度 -40°C to 115°C
流量系数 Cv ~ 6.0 (Kv ~ 5.2)
材质
材质 黄铜
材质表面处理 镀镍铬
密封件 EPDM
安装选项 螺纹和自锁型宝塔
阀门 聚苯砜
阀门弹簧 不锈钢
连接时所需力度 通常需要 21 磅
泄漏量 在0 psi 压力下每次断开泄漏量少于 0.02 cc
在 60 psi 压力下每次断开泄漏量少于 0.07 cc
夹杂物 每次连接小于 0.5cc
符合RoHS和REACH 要求
Cv值
Cv 6.0 (Kv ~ 5.2)
Cv值是以每分钟加仑及 psi显示,至于括号中则显示每分钟公升及巴
LQ8 Waterflow
警告:压力、温度、化学品和工作环境可影响接头的性能。测试 CPC 产品是否适宜其应用环境属于客户责任。
Features |
Benefits |
|
Non-spill design |
|
Disconnect under pressure |
|
Redundant seals |
|
Extra protection against leaks over an extended period of time |
|
High flow capacity with low pressure drop |
|
Enables efficient and cost-effective cooling |
|
EPDM seals |
|
Compatibility with common coolants (e.g. glycol/water) |
|
Ergonomic body and latch design |
|
Simple, intuitive one-handed operation and audible click that signals secure connection |
|
Low profile |
|
Meets size requirements for space-constrained electronics applications |
|
Barbed and threaded terminations |
|
Accommodates various connection preferences including locking barbs for clampless reinforced tubing |
Specifications
Flow Coefficient: |
Cv ~ 6.0 |
Pressure Range: |
Vacuum to 120 psi, 8.3 bar |
Operating Temperature: |
0°F to 240°F (-17°C to 115°C) |
Shipping/Storage Temperature: |
-40°F to 240°F (-40°C to 115°C) |
|
Materials: |
Brass |
Material Finish: |
Nickel-Chrome plated |
Seals: |
EPDM |
Mounting Options: |
Thread and locking hose barb |
Valve: |
Polyphenylsulfone |
Valve Spring: |
Stainless Steel |
Force to connect: |
21 lbs. typical |
Spillage: |
0.02 cc per disconnect rated at 0 psi; 0.07 cc per disconnect rated at 60 psi; |
Air Inclusion: |
0.5 cc per connect |
|
RoHS and REACH compliant |
Everis LQ8系列连接器提供1/2英寸流量,专为电子液体冷却应用而设计。 Everis LQ8连接器专为热管理应用而设计,流量特高,可优化液体冷却系统的性能。 提供安全可靠,无滴漏的连接和断开连接,易于使用,适用于靠近敏感或贵重设备组件。 LQ8快速连接器使用正在申请专利的阀门技术,该技术可消除滴漏,并且设计用于长时间使用。 EPDM密封件是与乙二醇/水冷却剂兼容的标准选件。 有关其他材料和端头选项,请联系CPC。 CPC销售代表和应用工程师可以协助您解决任何问题。
Product Bodies Inserts
|
LQ8D17010L
Everis 5/8" Locking Hose Barb Valved In-Line Body Everis LQ8 Material: Brass
Material Finish:Chrome
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option:In-line
Temperature Range:0°F - 240°F ((-17°C) - 115°C)
Seal Options:EPDM
Valve Spring:Stainless Steel
Valve Option:Valved |
|
LQ8D31012
Everis G 3/4 (BSPP) Valved In-Line Body Everis LQ8
Material:Brass
Material Finish:Chrome
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option:In-line
Temperature Range:0°F - 240°F ((-17°C) - 115°C)
Seal Options:EPDM
Valve Spring:Stainless Steel
Valve Option:Valved
|
|
LQ8D30012
Everis SAE-12 Valved In-Line Body Everis LQ8
Material:Brass
Material Finish:Chrome
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option:In-line
Temperature Range:0°F - 240°F ((-17°C) - 115°C)
Seal Options:EPDM
Valve Spring:Stainless Steel
Valve Option:Valved |
|
LQ8D22010L
Everis 5/8" Locking Hose Barb Valved In-Line Insert Everis LQ8
Material:Brass
Material Finish:Chrome
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option:In-line
Temperature Range:0°F - 240°F ((-17°C) - 115°C)
Seal Options:EPDM
Valve Spring:Stainless Steel
Valve Option:Valved
|
|
LQ8D47012
Everis G 3/4 (BSPP) Valved In-Line Insert Everis LQ8
Material:Brass
Material Finish:Chrome
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option:In-line
Temperature Range:0°F - 240°F ((-17°C) - 115°C)
Seal Options:EPDM
Valve Spring:Stainless Steel
Valve Option:Valved
|
|
LQ8D46012
Everis SAE-12 Valved In-Line Insert Everis LQ8 Material:Brass
Material Finish:Chrome
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option:In-line
Temperature Range:0°F - 240°F ((-17°C) - 115°C)
Seal Options:EPDM
Valve Spring:Stainless Steel
Valve Option:Valved
|
- Everis LQ8 Series liquid cooling fittings
Everis LQ8 Series fittings feature 1/2” flow for liquid cooling of electronics applications. Specifically designed for thermal management applications, Everis LQ8 connectors offer a high-flow capacity to optimize liquid cooling system performance. They provide ultra-reliable, dripless connections and disconnections for ease of use and peace of mind given proximity to sensitive or valuable equipment components. LQ8 quick disconnects (QDs) use patent pending valve technology that eliminates drips and are designed for long-term use. EPDM seals are a standard option for compatibility with glycol/water coolants. For other material and termination options contact CPC; CPC sales representatives and applications engineers are available to assist with any questions you may have.
Everis LQ8 Connector : Hand Mate Coupling for Liquid Cooling : CPC
Product
Bodies

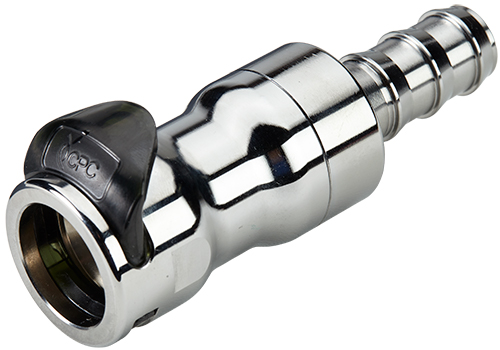

LQ8D17010L product photo
LQ8D17010L
Everis 5/8" Locking Hose Barb Valved In-Line Body Everis LQ8

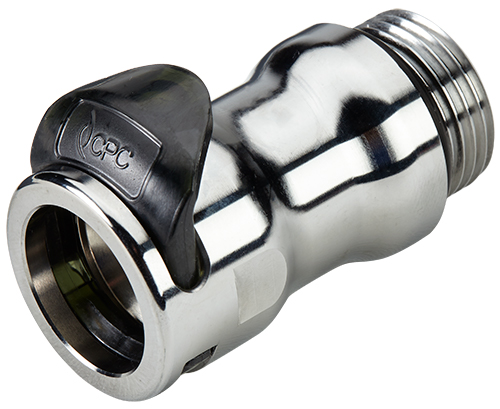

LQ8D31012 product photo
LQ8D31012
Everis G 3/4 (BSPP) Valved In-Line Body Everis LQ8
LQ8D30012 product photo
LQ8D30012
Everis SAE-12 Valved In-Line Body Everis LQ8
Inserts

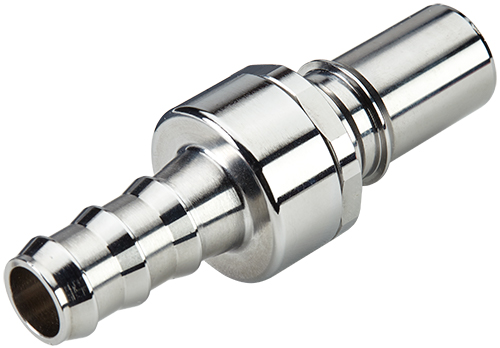

LQ8D22010L product photo
LQ8D22010L
Everis 5/8" Locking Hose Barb Valved In-Line Insert Everis LQ8

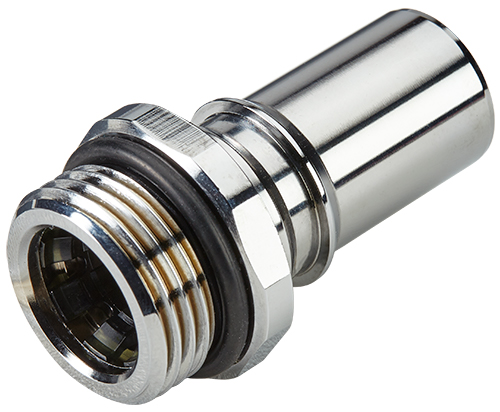

LQ8D47012 product photo
