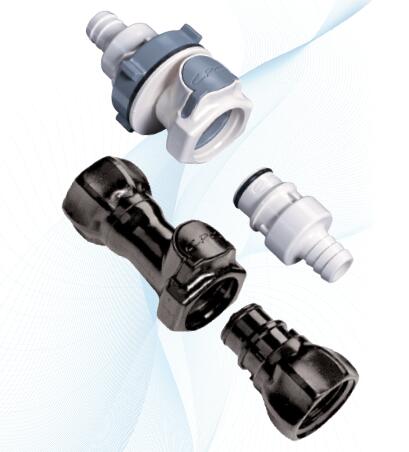

HFC35 & HFC57系列聚砜接头
HFC35 Series polysulfone couplings HFC57 Series polysulfone couplings
CPC Quick disconnect couplings for hemodialysis application
详细信息 ： HFC35 & HFC57系列聚砜接头
HFC35 系列聚砜接头能够承受苛刻的应用，并具有物理强度、耐化学性和耐高压灭菌性。HFC57 系列聚砜联轴器具有抗紫外线能力，能够承受持续暴露于有害紫外线而不影响性能。两者都可以在 -40°F 至 280°F（-40°C 至 138°C）的温度和真空至 125 psi (8.6 bar) 的压力下的恶劣环境中运行。符合人体工程学的设计和大的带罩拇指闩锁垫使联轴器易于抓握且易于操作。高效的阀门设计可实现高流量和极低的溢出。这两个系列还增加了隔板安装、花园软管螺纹和 Hastelloy ? C 弹簧选项。
CPC HFC35系列聚砜血液透析专用接头可以耐受许多条件非常苛刻的应用，特点是物理强度好，耐化学性和高温高压灭菌能力强。HFC57系列聚砜接头防紫外线，可持续暴露在有害的紫外射线下，而不影响性能。两种产品都可以在温度为–40°F至280°（–40°C至138°C），压力为真空至125psi（8.6bar）的恶劣环境下工作。符合人体工学的设计和凸出的指锁垫使接头易于握住，操作简单。高效的阀门设计导致阀门具有较高的流量，泄漏量极低。两种系列的产品都增加了隔板、园林软管快速接头和Hastelloy C弹簧选项。
CPC HFC35系列聚砜血液透析专用防紫外线接头物理强度好，耐化学性和高温高压灭菌能力强
HFC35 Series polysulfone couplings HFC57 Series polysulfone couplings
CPC HFC35 Series polysulfone couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability. HFC57 Series polysulfone couplings are UV resistant and able to withstand continued exposure to harmful UV rays without affecting performance. Both can operate in harsh environments in temperatures from -40°F to 280°F (-40°C to 138°C) and pressures from vacuum to 125 psi (8.6 bar). An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and exceptionally low spillage. Both series also add bulkhead panel mount, garden hose thread and Hastelloy C spring options.
特点和优势：
特征：
聚砜材料（HFC35）
防紫外线聚砜（HFC57）
高效阀门
符合人体工学的设计
可兼容
优点
物理强度高，高温高压灭菌能力
物理强度高，防紫外线
结构紧凑，流量大，泄漏量少
便于握住，操作简单
可与HFC12接头配用
规格参数：
操作条件（流体输送）
压力： 真空至 125 psi, 8.6 bar
温度： -40°F 至 280°F，-40°C 至 138°C
材料
主要部件和阀门： 聚砜
拇指锁： 聚砜
气门弹簧： 316不锈钢
面板安装垫片： 三元乙丙橡胶
内螺纹 GHT 垫片： 符合 FDA 标准的三元乙丙橡胶
外部弹簧和销： 316不锈钢
O型圈： 三元乙丙橡胶
其他
颜色： 自然白，带炭灰色闩锁
管材范围： 3/8" 至 3/4"，9.5 毫米至 19 毫米
简历值
Cv ~ 3.94 (56.77) 最大值
Cv ~ 2.50 (36.02) 最大值
Cv ~ 2.04 (29.39) 最大值
Cv 值基于 gpm 和 psi，以及 Ipm 和 bar（显示在括号中）。
警告：压力、温度、化学品和工作环境可影响接头的性能。测试Colder产品是否适宜其应用环境属于客户责任。
您知道吗...
HFC57系列聚砜接头防紫外线，可以持续暴露在有害射线下，同时对性能无影响。这种接头可以提供与HFC12和HFC35系列同样的功能，附加的优点是防紫外线，为您的液体连接提供强度和耐用性保护。HFC57接头可用于户外水上器材、草坪灌溉系统、屋顶和甲板上的太阳能加热系统等接头容易遭受太阳射线侵害的应用。
CPC quick disconnect couplings for Clinical Dialysis Systems临床透析系统
CPC quick disconnect couplings Clinical Dialysis Applications
用于化学和水的世界范围内的应用，高性能的CPC快速接头用于临床透析在各种各样的系统从酸和碳酸氢钠线用于反渗透水行（RO）水处理系统。节省时间，连接管螺纹管上的软管夹具和安装高质量的CPC快速接头。CPCP的无泄漏和阀连接，有效消除或减少滴水和泄漏。Used in chemical and water applications worldwide, high performance CPC quick disconnect couplings are used in dialysisclinics on a wide variety from systems—from the acid and bicarbonate lines to the water lines used on reverse osmosis (RO) water treatment systems. Save time reconnecting pipe threads and tubing onto fixtures and hose barbs by installing high quality CPC quick disconnect couplings. CPC’s non-spill and valved connections eliminate or minimize drips and spills.
HFC35 系列聚砜接头能够承受苛刻的应用，并具有物理强度、耐化学性和耐高压灭菌性。
HFC57 系列聚砜联轴器具有抗紫外线能力，能够承受持续暴露于有害紫外线而不影响性能。
两者都可以在 -40°F 至 280°F（-40°C 至 138°C）的温度和真空至 125 psi (8.6 bar) 的压力下的恶劣环境中运行。符合人体工程学的设计和大的带罩拇指闩锁垫使联轴器易于抓握且易于操作。高效的阀门设计可实现高流量和极低的溢出。这两个系列还增加了隔板安装、花园软管螺纹和 Hastelloy ? C 弹簧选项。
HFC35 & HFC57
HFC35 Series polysulfone couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.
HFC57 Series polysulfone couplings are UV resistant and able to withstand continued exposure to harmful UV rays without affecting performance.
Both can operate in harsh environments in temperatures from -40°F to 280°F (-40°C to 138°C) and pressures from vacuum to 125 psi (8.6 bar). An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and exceptionally low spillage. Both series also add bulkhead panel mount, garden hose thread and Hastelloy? C spring options.
CPC HFC35塑料接头血液透析专用接头，HFC57塑料接头血液透析专用接头
|
|
|
|
HFC101235
3/4 NPT Non-Valved Coupling Body |
HFC101235BSPT
3/4 BSPT Non-Valved Coupling Body |
HFC101235GHT
3/4 GHT Non-Valved Coupling Body |
HFC101257BSPT
3/4 BSPT Non-Valved Coupling Body |
|
|
|
|
HFC101257GHT
3/4 GHT Non-Valved Coupling Body |
HFC10635
3/8 NPT Non-Valved Coupling Body |
HFC10635BSPT
3/8 BSPT Non-Valved Coupling Body |
HFC10657BSPT
3/8 BSPT Non-Valved Coupling Body |
|
|
|
|
HFC10835
1/2 NPT Non-Valved Coupling Body |
HFC10835BSPT
1/2 BSPT Non-Valved Coupling Body |
HFC10857
1/2 NPT Non-Valved Coupling Body |
HFC10857BSPT
1/2 BSPT Non-Valved Coupling Body |
|
|
|
|
HFC161035
5/8 Hose Barb Non-Valved Panel Mount Coupling Body |
HFC161235
3/4 Hose Barb Non-Valved Panel Mount Coupling Body |
HFC16635
3/8 Hose Barb Non-Valved Panel Mount Coupling Body |
HFC16835
1/2 Hose Barb Non-Valved Panel Mount Coupling Body |
|
|
|
|
HFC171035
5/8 Hose Barb Non-Valved In-Line Coupling Body |
HFC171057
5/8 Hose Barb Non-Valved In-Line Coupling Body |
HFC171235
3/4 Hose Barb Non-Valved In-Line Coupling Body
|
HFC171257
3/4 Hose Barb Non-Valved In-Line Coupling Body |
|
|
|
|
HFC17635
3/8 Hose Barb Non-Valved In-Line Coupling Body |
HFC17657
3/8 Hose Barb Non-Valved In-Line Coupling Body |
HFC17835
1/2 Hose Barb Non-Valved In-Line Coupling Body |
HFC17857
1/2 Hose Barb Non-Valved In-Line Coupling Body
|
|
|
|
|
HFC191235BSPP
3/4 BSPP Non-Valved Coupling Body |
HFC191235GHT
3/4 GHT Non-Valved Coupling Body
|
HFC191257GHT
3/4 GHT Non-Valved Coupling Body |
HFCD101235
3/4 NPT Valved Coupling Body |
|
|
|
|
HFCD101235BSPT
3/4 BSPT Valved Coupling Body |
HFCD101235GHT
3/4 GHT Valved Coupling Body
|
HFCD101257BSPT
3/4 BSPT Valved Coupling Body |
HFCD101257GHT
3/4 GHT Valved Coupling Body |
|
|
|
|
HFCD10635
3/8 NPT Valved Coupling Body |
HFCD10635BSPT
3/8 BSPT Valved Coupling Body |
HFCD10657BSPT
3/8 BSPT Valved Coupling Body |
HFCD10835
1/2 NPT Valved Coupling Body |
|
|
|
|
HFCD10835BSPT
1/2 BSPT Valved Coupling Body
|
HFCD10857
1/2 NPT Valved Coupling Body |
HFCD10857BSPT
1/2 BSPT Valved Coupling Body |
HFCD161035
5/8 Hose Barb Valved Panel Mount Coupling Body |
|
|
|
|
HFCD161057
5/8 Hose Barb Valved Panel Mount Coupling Body |
HFCD161235
3/4 Hose Barb Valved Panel Mount Coupling Body |
HFCD161257
3/4 Hose Barb Valved Panel Mount Coupling Body |
HFCD16635
3/8 Hose Barb Valved Panel Mount Coupling Body
|
 |
 |
 |
 |
HFCD16657
3/8 Hose Barb Valved Panel Mount Coupling Body |
HFCD16835
1/2 Hose Barb Valved Panel Mount Coupling Body |
HFCD16857
1/2 Hose Barb Valved Panel Mount Coupling Body |
HFCD171035
5/8 Hose Barb Valved In-Line Coupling Body |
 |
 |
 |
 |
HFCD171057
5/8 Hose Barb Valved In-Line Coupling Body |
HFCD171235
3/4 Hose Barb Valved In-Line Coupling Body
|
HFCD171257
3/4 Hose Barb Valved In-Line Coupling Body |
HFCD17635
3/8 Hose Barb Valved In-Line Coupling Body |
 |
 |
 |
 |
HFCD17657
3/8 Hose Barb Valved In-Line Coupling Body
|
HFCD17835
1/2 Hose Barb Valved In-Line Coupling Body |
HFCD17857
1/2 Hose Barb Valved In-Line Coupling Body |
HFCD191235BSPP
3/4 BSPP Valved Coupling Body
|
|
 |
|
 |
HFCD191235GHT
3/4 GHT Valved Coupling Body |
HFCD191257BSPP
3/4 BSPP Valved Coupling Body |
HFCD191257GHT
3/4 GHT Valved Coupling Body |
HFC312
HFC Cap
|
 |
|
|
|
HFC312L
HFC Tethered Cap |
|
|
|
Inserts-公头
 |
 |
 |
 |
HFC221035
5/8 Hose Barb Non-Valved In-Line Coupling Insert |
HFC221057
5/8 Hose Barb Non-Valved In-Line Coupling Insert
|
HFC221235
3/4 Hose Barb Non-Valved In-Line Coupling Insert |
HFC221257
3/4 Hose Barb Non-Valved In-Line Coupling Insert |
|
|
 |
 |
HFC22635
3/8 Hose Barb Non-Valved In-Line Coupling Insert |
HFC22657
3/8 Hose Barb Non-Valved In-Line Coupling Insert |
HFC22835
1/2 Hose Barb Non-Valved In-Line Coupling Insert |
HFC22857
1/2 Hose Barb Non-Valved In-Line Coupling Insert |
 |
|
 |
|
HFC23635
3/8 Hose Barb Non-Valved Elbow Coupling Insert |
HFC23835
1/2 Hose Barb Non-Valved Elbow Coupling Insert |
HFC241235
3/4 NPT Non-Valved Coupling Insert
|
HFC241235BSPT
3/4 BSPT Non-Valved Coupling Insert |
|
 |
|
|
HFC241235GHT
3/4 GHT Non-Valved Coupling Insert |
HFC241257BSPT
3/4 BSPT Non-Valved Coupling Insert |
HFC241257GHT
3/4 GHT Non-Valved Coupling Insert
|
HFC24635
3/8 NPT Non-Valved Coupling Insert |
|
|
|
|
HFC24635BSPT
3/8 BSPT Non-Valved Coupling Insert |
HFC24657BSPT
3/8 BSPT Non-Valved Coupling Insert |
HFC24835
1/2 NPT Non-Valved Coupling Insert |
HFC24835BSPT
1/2 BSPT Non-Valved Coupling Insert |
|
 |
|
 |
HFC24857
1/2 NPT Non-Valved Coupling Insert |
HFC261235BSPP
3/4 BSPP Non-Valved Coupling Insert |
HFC261235GHT
3/4 GHT Non-Valved Coupling Insert |
HFC261257BSPP
3/4 BSPP Non-Valved Coupling Insert |
|
 |
|
|
HFC261257GHT
3/4 GHT Non-Valved Coupling Insert |
HFCD221035
5/8 Hose Barb Valved In-Line Coupling Insert |
HFCD221057
5/8 Hose Barb Valved In-Line Coupling Insert |
HFCD221235
3/4 Hose Barb Valved In-Line Coupling Insert |
|
|
|
|
HFCD221257
3/4 Hose Barb Valved In-Line Coupling Insert |
HFCD22635
3/8 Hose Barb Valved In-Line Coupling Insert |
HFCD22657
3/8 Hose Barb Valved In-Line Coupling Insert |
HFCD22835
1/2 Hose Barb Valved In-Line Coupling Insert |
|
|
|
|
HFCD22857
1/2 Hose Barb Valved In-Line Coupling Insert |
HFCD23635
3/8 Hose Barb Valved Elbow Coupling Insert |
HFCD23835
1/2 Hose Barb Valved Elbow Coupling Insert
|
HFCD241235
3/4 NPT Valved Coupling Insert |
|
|
|
|
HFCD241235BSPT
3/4 BSPT Valved Coupling Insert |
HFCD241235GHT
3/4 GHT Valved Coupling Insert |
HFCD241257BSPT
3/4 BSPT Valved Coupling Insert |
HFCD241257GHT
3/4 GHT Valved Coupling Insert |
|
|
|
|
HFCD24635
3/8 NPT Valved Coupling Insert |
HFCD24635BSPT
3/8 BSPT Valved Coupling Insert |
HFCD24657BSPT
3/8 BSPT Valved Coupling Insert |
HFCD24835
1/2 NPT Valved Coupling Insert |
|
|
|
|
HFCD24835BSPT
1/2 BSPT Valved Coupling Insert |
HFCD24857
1/2 NPT Valved Coupling Insert |
HFCD24857BSPT
1/2 BSPT Valved Coupling Insert
|
HFCD261235BSPP
3/4 BSPP FE Valved Coupling Insert |
|
|
|
|
HFCD261235GHT
3/4 GHT Valved Coupling Insert |
HFCD261257BSPP
3/4 BSPP Valved Coupling Insert |
HFCD261257GHT
3/4 GHT Valved Coupling Insert |
Nut, Panel Mount (HFC)
621300
Nut, Panel Mount (HFC) |
| |
|
|
|
Panel Nut (HFC)
694300
Panel Nut (HFC) |
O-Rings and Seals
621200
Panel Mount Gasket (HFC35 & 57, HFC12) |
|
|
