CPC医疗 混合型接头系列CPC Hybrid Mini Connector

混合型接头系列

新型的混合型接头消除了对多连接的需要，简化了远程工具和设备之间的用户接口。特点是采用易于操作的扭锁，一个简单的动作即可将所有部分牢固地连接起来，技术人员可迅速更换需要电源、信号、空气或液体组合的模块化工具、输送管或手动件。混合连接器采用干式断开技术，目前对于液体和电子线路，设计师可以自信地指定一种连接器即可解决。流线型接口设计使设计工程师可根据要求调整产品。为了节省您宝贵的工程资源，请为您的特定应用选择现货供应的解决方案或定制型解决方案。Hybrid Connector from CPC eliminates the need for multiple connections and simplifies the user interface between remote tools and a device. Featuring an easy-to-use twist latch to securely connect everything in one simple motion, technicians can quickly change or replace modular tools, umbilicals or hand pieces that require a combination of power, signal, air or fluids.

Featuring dry-break technology, the Hybrid Connector allows designers to confidently specify a single connector for both fluids and electronics. The streamlined interface allows design engineers to adapt the product to their needs with many customization options available. Save your valuable engineering resources with this off-the-shelf, turnkey solution or a customized version for your specific application.

CPC Mini Hybrid Connector混合连接器视频
Hybrid Connectors Video

功能与效益

Single connection point for pneumatic, fluid, data and power connections between a device and its tool/hand piece
Increases safety and makes systems more user friendly
Non-spill shutoff valves with dry-break technology
Eliminate fluid drips upon disconnect and minimize air inclusion
Turnkey solution
Reduces multiple components
Off-the-shelf assembly
Minimizes engineering design and manufacturing effort
Custom options available
Flexibility to add additional fluid connector or elect contacts.

产品规格

Pressure: Vacuum to 45 psi, 3.1 bar
Temperature: 32°F to 120°F (0°C to 49°C)
Materials:
Non-wetted coupler components: Glass-filled polypropylene and acetal
Wetted coupler components: Glass-filled polypropylene
Springs: Stainless steel
Electrical contacts: Gold-plated brass
O-rings: EPDM
Tubing: Fluid tubing: polyurethane (PU)
Umbilical tubing: PVC
Color: Gray
Panel Terminations: Two 1/8" hose barbs on panel and four 20ga wires with 12" pigtail
Umbilical Terminations: 8' (2.44M) umbilical with two 1/8" (3.2mm) ID PU tubing and four 20ga wires with 3" (76.2mm) pigtail
Number of fluid lines: 2
Electrical Specifications:
Voltage: Up to 24VDC
Current: Up to 3 Amps
Wire gauge: 20AWG
Number of contacts: 4

Hybrid Connector

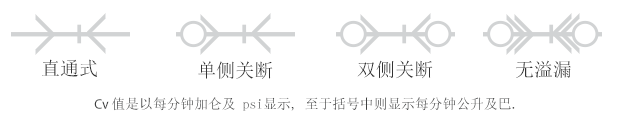

Cv值

non-spill

产品

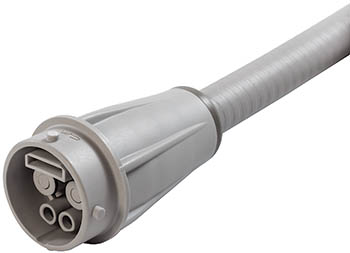

Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Hose
HQC17002
Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Hose

Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Panel Mount
HQC42001
Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Panel Mount
