CPC MPC 系列接头
MPC Series coupling

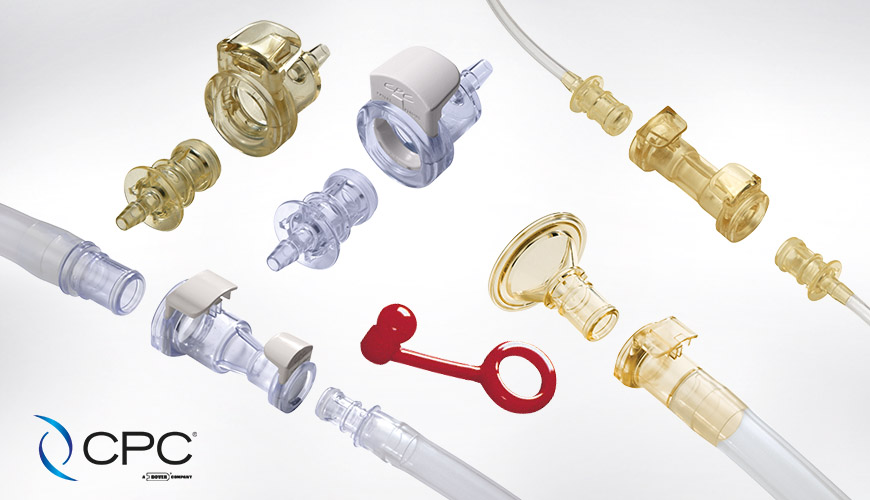

CPC MPC系列接头增加使用的方便性,而对于关键性的流体处理安全性特高。从完整系列的接头和配置设置中选择，包括压力密封盖和塞，尺寸大约适用于1/4英寸和3/8英寸管道，MPC接头提供可选锁紧套管，可进一步防止接头的突发性断开，另外，当连接时，两边接头可旋转以减少管道扭曲。MPC Series couplings add ease of use and security to your most critical fluid handling applications. Choose from a full line of connectors and configurations, including pressure sealing caps and plugs, in sizes to fit 1/8", 1/4" and 3/8" tubing. MPC couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected to reduce tube kinks.

医疗用 MPC 系列功能与效益特点优点

符合人体工学的拇指闩锁 即使戴着手套也便于操作
USP VI 等级认证
符合生物适应性要求
高压蒸汽灭菌，Et0, 光波或者伽玛射线
可重复使用，但由于价格便宜，亦适合一次性使用
无分线型的倒钩 消除了潜在的泄漏路径
不含BSE/TSE材料
符合ADCF要求

产品规格

规格：
压力：真空至60 psi，4.14bar
温度：
ABS: ：-40oF 到 160oF（-40oC 到71oC）
聚碳酸酯：-40oF到250oF（-40oC到121oC）
聚砜：-40oF到300oF（-40oC到149oC）

材料：
主要部件：
ABS ( 白色）， USP VI等级认证，ADCF
聚碳酸酯（淡 紫色），USP VI 等级认证， ADCF
聚砜（淡琥珀色），USP VI 等级认证，ADCF
锁紧套管：聚砜（白色）USP VI 等级认证,
ADCF
指锁:聚碳酸酯（白色），聚砜（淡琥珀色），
USP VI等级认证，ADCF
O型圈：硅树脂（透明），铂金固化，USP VI
等级认证, ADCF。 丁晴橡胶 (黑色), USP
V 等 级认证

灭菌：
辐射度：大50k Gy辐射
高压灭菌器：
聚碳酸酯：大达250 oF（121oC），30分
钟，多10次重复，无连接灭菌
聚砜：大达270 oF（132 oC），60分钟，
多25次重复，无连接灭菌

管道尺寸：
1/4"和3/8"内径，6.4mm和9.5mm内径
警告：压力、温度、化学和操作环境会影响连接性能。
在自己作业环境下测试CPC产品的适宜性是客户
的责任本图表旨在使您对各个系列产品的性能进行总体了解。
各图的阴影区表示各系列产品的工作范围即上下限范
围。因此，根据您所选接头的精确配置，可以合理预期
各项数值在阴影区的位置。

Cv值

straight-through Cv~5.5 (79.25) 大

产品Bodies

1/8 Hose Barb Non-Valved In-Line Coupling Body
MPC17002T03
1/8 Hose Barb Non-Valved In-Line Coupling Body

1/8 Hose Barb Non-Valved In-Line Coupling Body
MPC17002T39
1/8 Hose Barb Non-Valved In-Line Coupling Body

1/4 Hose Barb Non-Valved In-Line Coupling Body
MPC17004T
1/4 Hose Barb Non-Valved In-Line Coupling Body

1/4 Hose Barb Non-Valved In-Line Coupling Body
MPC17004T03
1/4 Hose Barb Non-Valved In-Line Coupling Body

1/4 Hose Barb Non-Valved In-Line Coupling Body
MPC17004T39
1/4 Hose Barb Non-Valved In-Line Coupling Body

3/8 Hose Barb Non-Valved In-Line Coupling Body
MPC17006T
3/8 Hose Barb Non-Valved In-Line Coupling Body

3/8 Hose Barb Non-Valved In-Line Coupling Body

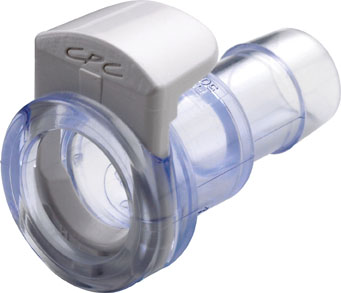

MPC17006T03
3/8 Hose Barb Non-Valved In-Line Coupling Body

3/8 Hose Barb Non-Valved In-Line Coupling Body
MPC17006T39
3/8 Hose Barb Non-Valved In-Line Coupling Body

MPC Body x MPC Back-to-Back Body Adapter
MPC17C1703
MPC Body x MPC Back-to-Back Body Adapter

MPC Body x MPC Back-to-Back Body Adapter
MPC17C1739
MPC Body x MPC Back-to-Back Body Adapter

MPC Body x MPX Back-to-Back Body Adapter
MPC17X1703
MPC Body x MPX Back-to-Back Body Adapter

MPC Body x MPX Back-to-Back Body Adapter
MPC17X1739
MPC Body x MPX Back-to-Back Body Adapter

3/4 Sanitary Non-Valved Coupling Body
MPC3301239
3/4 Sanitary Non-Valved Coupling Body

1 Sanitary Non-Valved Coupling Body
MPC3301639
1 Sanitary Non-Valved Coupling Body

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock
MPCK17002T03
1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock
MPCK17002T39
1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

1/4 Hose Barb Non-Valved Coupling Body With Lock
MPCK17004T03
1/4 Hose Barb Non-Valved Coupling Body With Lock

1/4 Hose Barb Non-Valved Coupling Body With Lock
MPCK17004T39
1/4 Hose Barb Non-Valved Coupling Body With Lock

3/8 Hose Barb Non-Valved Coupling Body With Lock
MPCK17006T03
3/8 Hose Barb Non-Valved Coupling Body With Lock

3/8 Hose Barb Non-Valved Coupling Body With Lock
MPCK17006T39
3/8 Hose Barb Non-Valved Coupling Body With Lock

Caps & Plugs

MPC Coupling Plug
MPC30003M
MPC Coupling Plug

MPC Coupling Plug
MPC30039M
MPC Coupling Plug

MPC Tethered Plug
MPC30L
MPC Tethered Plug

MPC Coupling Cap
MPC32003
MPC Coupling Cap

MPC Coupling Cap
MPC32039
MPC Coupling Cap

MPC Tethered Cap
MPC32L
MPC Tethered Cap

MPC Sealing Cap With Lock
MPCK32003
MPC Sealing Cap With Lock

MPC Sealing Cap With Lock
MPCK32039
MPC Sealing Cap With Lock

Inserts

1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert
MPC22002T03
1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert

1/8 Hose Barb Non-Valved In-Line Coupling Insert
MPC22002T03M
1/8 Hose Barb Non-Valved In-Line Coupling Insert

1/8 Hose Barb Non-Valved In-Line Coupling Insert
MPC22002T39M
1/8 Hose Barb Non-Valved In-Line Coupling Insert

1/4 Hose Barb Non-Valved Coupling Insert
MPC22004T
1/4 Hose Barb Non-Valved Coupling Insert

1/4 Hose Barb Non-Valved Coupling Insert
MPC22004T03
1/4 Hose Barb Non-Valved Coupling Insert

1/4 Hose Barb Non-Valved Coupling Insert
MPC22004T03M
1/4 Hose Barb Non-Valved Coupling Insert

1/4 Hose Barb Non-Valved Coupling Insert
MPC22004T39M
1/4 Hose Barb Non-Valved Coupling Insert

1/4 Hose Barb Non-Valved Coupling Insert
MPC22004TM
1/4 Hose Barb Non-Valved Coupling Insert

3/8 Hose Barb Non-Valved Coupling Insert
MPC22006T
3/8 Hose Barb Non-Valved Coupling Insert

3/8 Hose Barb Non-Valved Coupling Insert
MPC22006T03
3/8 Hose Barb Non-Valved Coupling Insert

3/8 Hose Barb Non-Valved Coupling Insert
MPC22006T03M
3/8 Hose Barb Non-Valved Coupling Insert

3/8 Hose Barb Non-Valved Coupling Insert
MPC22006T39M
3/8 Hose Barb Non-Valved Coupling Insert
