CPC MPU 系列医疗用接头 Medical-Grade | MPU - CPC - Colder Products Company
CPC MPU series Twist-to-Connect Couplings管材、接头和软管接头快速断开接头

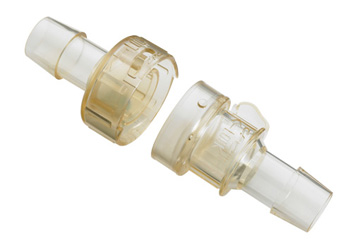

CPC's MPU twist-to-connect connectors
Colder Medical MPU

MPU 系列

MPU旋转连接设计具有简单易用的锁紧结构，可避免发生突发性断开，提供可靠且安全的连接，3/4"倒钩型提供顺畅的流体传输。MPU’s twist-to-connect design features an easy-to-use locking mechanism that guards against accidental disconnects and provides a reliable, secure connection. A 3/4" hose barb provides smooth, rapid media transfer.

功能与效益

3 / 4" 倒钩型
便于生物制程袋的快速填充和清空
锁紧功能
避免发生突发性断开
尖锐的倒钩端
减少流体涡流和死角
封闭式，无泄漏，平滑的内部流道
保护昂贵的液体，消除污染风险

产品规格

规格
压力：真空至35psi，2.41bar
温度：-40oF到300oF（-40oC到149oC）
材料：主要部件
聚砜树脂（淡琥珀色），USP等级VI ADCF
O 型圈：硅树脂（透明），铂金固化，USP VI 等
级认证, ADCF

灭菌：
伽玛辐射：大达50k Gy 伽玛辐射
高压蒸汽灭菌器：高达270oF（132oC）60
分钟，多25次重复，仅限断开时灭菌
管道尺寸：3/4"内径，19.1mm内径

Cv值

straight-through Cv ~ 20.9 (301.14) 大

产品Bodies

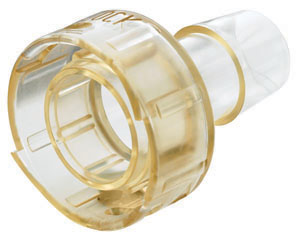

3/4 Hose Barb Non-Valved Coupling Body
MPU171239
3/4 Hose Barb Non-Valved Coupling Body

MPU Sealing Body Plug
MPU30039M
MPU Sealing Body Plug

Inserts

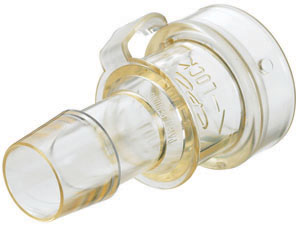

3/4 Hose Barb Non-Valved Coupling Insert
MPU221239M
3/4 Hose Barb Non-Valved Coupling Insert

MPU Sealing Insert Cap
MPU32039
MPU Sealing Insert Cap

MPU Series Couplings: Medical-Grade Polysulfone, 3/4" ID
Source: CPC



The MPU's twist-to-connect design features an easy-to-use locking mechanism that guards against accidental disconnects and provides a reliable, secure connection. A 3/4" hose barb provides smooth, rapid media transfer.

MPC Series Couplings: Medical-Grade Polycarbonate and Polysulfone, 1/4" and 3/8" ID

Request Information
Click Here To Download:
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
The MPU's twist-to-connect design features an easy-to-use locking mechanism that guards against accidental disconnects and provides a reliable, secure connection. A 3/4" hose barb provides smooth, rapid media transfer.

Medical-grade material meets the most stringent requirements such as USP Class VI, MEM elution, agarose overlay, hemolysis in vitro and USP physicochemical tests.

Features

3/4" hose barb
Audible "click" when connected
Locking feature
Medical-grade polysulfone
Sharp hose barb
Shrouded, leak-free seal and smooth, internal flow path
Low profile
Lightweight
Benefits
Facilitates rapid fill and empty of bioprocessing bags
Assures connection is secure
Guards against accidental disconnect
Compatible with popular sterilization methods, yet economical enough to allow disposibility
Minimizes fluid turbulence and dead space
Protects valuable fluids and eliminates potential to contaminate fluid path
Offers ease of use and handling
Removes extra weight from assemblies
Applications may include:
Laboratory tubing connections
Cell culture media packaging and transfer lines
Harvest and collection applications
Diagnostic manufacturing
Compression therapy cuffs
