智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster



CPC MPX 系列医疗用接头
MPX Series couplings



MPX 系列
MPX系列接头可增加使用的方便性,而对于关键性的流体处理安全性特高。从完整系列的接头和配置中选择,包括压力密封盖和塞,尺寸大约适用于3/8"和1/2"管道,MPX接头提供可选锁紧套管,可进一步防止接头的突发性断开,另外,当连接时,两边接头可任意旋转而不会发生管道纠缠。MPX Series couplings add ease of use and security to your most critical fluid handling applications.Choose from a full line of connectors and configurations, including pressure sealing caps and plugs in sizes to fit 3/8" and 1/2" tubing. MPX couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected reducing tube kinks.



功能与效益

符合人体工学的拇指闩锁
即使戴着手套也便于操作
USP VI 等级认证
符合生物适应性要求
高压蒸汽灭菌,Et0, 光波或者伽玛射线
可重复使用,但由于价格便宜,亦适合一次性使用
无分线型的倒钩 消除了潜在的泄漏路径
不含BSE/TSE材料
符合ADCF要求



产品规格

MPX规格:
压力:真空至60psi,4.14bar
温度:
聚碳酸酯:-40oF到250oF(-40oC到121oC)
聚砜树脂:-40oF到300oF(-40oC到149oC)

材料:
主要部件:
聚碳酸酯(淡紫色),USP VI等级认证,ADCF
聚砜树脂(淡琥珀色),USP VI 等级认证,ADCF
锁紧套管: 聚砜树脂( 白色) USP 等级
VI,ADCF
指锁:聚碳酸酯(白色),聚砜(淡琥珀色),
USP VI等级认证,ADCF
O型圈:硅树脂( 透明), 铂金固化,USP
等级VI,ADCF

灭菌:
辐射度:大50k Gy辐射
高压灭菌器:
聚碳酸酯:大达250oF(121oC),30 分
钟,多10次重复,无连接灭菌
聚砜酸酯:大达270oF(132oC),60 分
钟,多25次重复,无连接灭菌

管道尺寸:
3/8"和1/2"内径,9.5mm和12.7mm内径
警告:压力、温度、化学和操作环境会影响
连接性能。在自己作业环境下测试CPC产
品的适宜性是客户的责任。

Cv值
straight-through Cv ~ 14.2 (204.60) 大

产品Bodies

MPC Body x MPX Back-to-Back Body Adapter
MPC17X1703
MPC Body x MPX Back-to-Back Body Adapter


MPC Body x MPX Back-to-Back Body Adapter
MPC17X1739
MPC Body x MPX Back-to-Back Body Adapter


1/2 Hose Barb Non-Valved Coupling Body
MPX17803
1/2 Hose Barb Non-Valved Coupling Body


1/2 Hose Barb Non-Valved Coupling Body
MPX17839
1/2 Hose Barb Non-Valved Coupling Body

MPX to MPX Back-to-Back Body Adapter
MPX17X1703
MPX to MPX Back-to-Back Body Adapter


MPX to MPX Back-to-Back Body Adapter
MPX17X1739
MPX to MPX Back-to-Back Body Adapter


3/4 Sanitary Coupling Body
MPX3301239
3/4 Sanitary Coupling Body


1/2 Hose Barb Non-Valved Coupling Body With Lock
MPXK17803
1/2 Hose Barb Non-Valved Coupling Body With Lock

1/2 Hose Barb Non-Valved Coupling Body With Lock
MPXK17839
1/2 Hose Barb Non-Valved Coupling Body With Lock

Caps & Plugs

MPX Coupling Plug
MPX30003M
MPX Coupling Plug


MPX Coupling Plug
MPX30039M
MPX Coupling Plug


MPX Coupling Cap
MPX32003
MPX Coupling Cap


MPX Coupling Cap
MPX32039
MPX Coupling Cap

MPX Coupling Cap, Locking
MPXK32003
MPX Coupling Cap, Locking


MPX Coupling Cap, Locking
MPXK32039
MPX Coupling Cap, Locking

Inserts

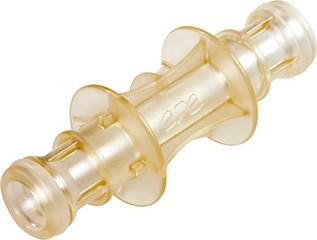

MPC to MPC Back-to-Back Insert Adapter
MPC22C2239M
MPC to MPC Back-to-Back Insert Adapter


MPC to MPX Back-to-Back Insert Adapter
MPC22X2239M
MPC to MPX Back-to-Back Insert Adapter


3/8 Hose Barb Non-Valved Coupling Insert
MPX22603M
3/8 Hose Barb Non-Valved Coupling Insert


3/8 Hose Barb Non-Valved Coupling Insert
MPX22639M
3/8 Hose Barb Non-Valved Coupling Insert

1/2 Hose Barb Non-Valved Coupling Insert
MPX22803M
1/2 Hose Barb Non-Valved Coupling Insert


1/2 Hose Barb Non-Valved Coupling Insert
MPX22839M
1/2 Hose Barb Non-Valved Coupling Insert


MPX to MPX Back-to-Back Insert Adapter
MPX22X2239M
MPX to MPX Back-to-Back Insert Adapter

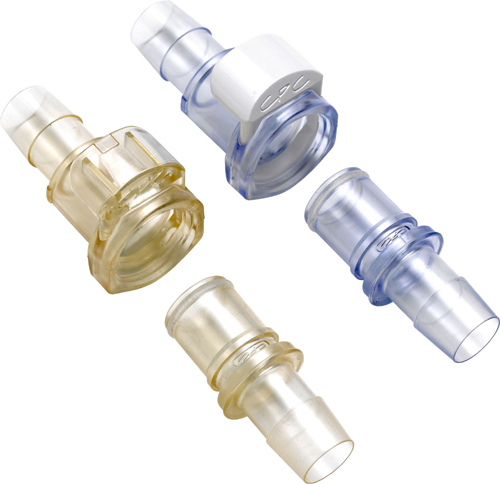

MPX Series Couplings: Medical-Grade Polycarbonate and Polysulfone, 3/8" and 1/2" ID
Source: CPC


MPX_B

MPX Series couplings add ease of use and security to your most critical fluid handling applications. MPX couplings offer optional locking sleeves to further guard against accidental disconnects.


Request Information

Click Here To Download:
- MPC/MPX Product Line Additions
- MPX Series Polycarbonate WhiteClips Validation Report
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing


MPX Series couplings add ease of use and security to your most critical fluid handling applications. Available in a full line of connectors and configurations that include pressure sealing caps and plugs sized to fit 3/8" and 1/2" tubing. Guard against accidental disconnection with optional MPX locking sleeves.

Features
Ergonomic thumb latch
Audible "click" when connected
USP Class VI materials
Sterilizable by autoclave, Et0, e-beam, or gamma
Tapered barb


Benefits
Easy to operate-even with gloved hands
Assures connection is secure
Meets customer biocompatibility requirements
Reusable, yet economical enough to allow disposability
Minimizes fluid turblulence
Applications may include:
Cell culture media packaging and transfer lines
Harvest and collection applications
Buffer solutions
Tube sets
Flexible bag systems


Click Here To Download:
- MPC/MPX Product Line Additions
- MPX Series Polycarbonate WhiteClips Validation Report
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
