智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster

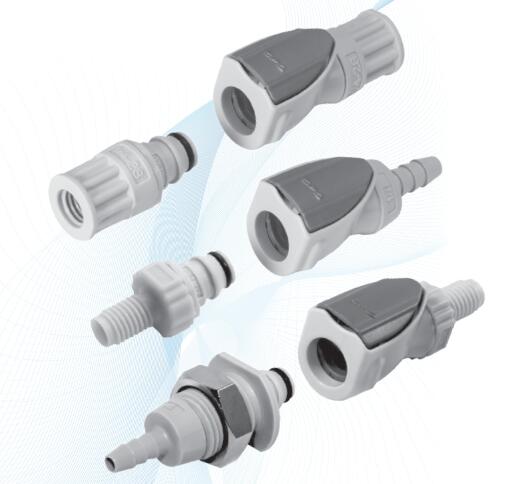

CPC NS1 系列目前市场上最小的塑料无溢漏连接器
CPC NS1 Series quick disconnect couplings
CPC NS1 Series Small Plastic Non-Spill Couplings

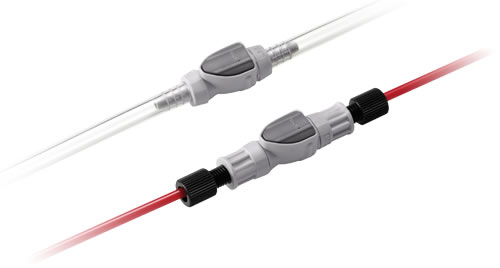

CPC NS1系列连接器结构小巧,封闭系统的设计确保断开连接后无滴漏,无需清除系统中的空气,并允许管道自由移动无扭结, 是目前市场上最小的塑料无溢漏连接器。如果一些应用需要把1/8英寸或更小的管道经常进行连接和断开,NS1系列便是理想的選择。符合人体工程学及用户友 好型的设计,实现了安全﹑可靠的连接和断开。CPC NS1 Series couplings closed-system design is packed full of features that ensure drip-free disconnects, eliminate the need to purge air from the system and allow tubing to move freely without kinks. The smallest plastic non-spill coupling on the market, NS1 is ideal for applications with tubing from 1/8-inch and smaller that need to be connected and disconnected often. The ergonomic, user-friendly interface of NS1 enables a secure, reliable connect and disconnect.

CPC NS1 系列目前市场上最小的塑料无溢漏连接器
CPC NS1 Series Small Plastic Non-Spill Couplings

特点优点

无溢漏设计
封闭式系统,断开连接后无滴漏
超低量空气混入
最大限度地减少污染物,不需要从系统中清除气泡
直观的界面
用户友好型的人体工程学设计,提供安全可靠的连接
可旋转设计
允许管道自由移动,无扭结或泄漏
耐化学腐蚀的材料
广泛的应用中提供可靠的表现



产品规格

压力:真空至1巴
温度:0 °C至49°C
溢出流体:在1巴的压力下断开连接后有0.02毫升
夹杂流体:每次连接有0.01毫升
材质:
主外壳组件及阀门: 玻璃填充的聚丙烯,PEEK,聚丙烯
拇指按锁: PEEK
弹簧: 316不锈钢
O型圈: EPDM
管道尺寸:
小口径至to 1/8” ID (Microbore to 3.2mm)
颜色: 灰色

警告:压力、温度、化学品和工作环境可影响接头的性能。测试CPC产品是否适宜其应用环境属于客户的责任。
NS1 Water Flow

这个图表旨在使您对各个系列产品的性能进行总体了解。图中的阴影区表示各个系列产品的工作范围,即上下限范围。因此,根据所选接头的精确配置,您可以合理预期数值在阴影区的位置。

产品Bodies

NS1D10042812

1/4-28 Male Thread Valved In-Line Coupling Body

NS1D170212

1/8 Hose Barb Valved In-Line Coupling Body

NS1D19042812

1/4-28 Flat Bottom Port Valved In-Line Coupling Body



产品Inserts

NS1D220212

1/8 Hose Barb Valved In-Line Coupling Insert

NS1D24042812

1/4-28 Male Thread Valved In-Line Coupling Insert

NS1D26042812

1/4-28 Flat Bottom Port Valved In-Line Coupling Insert

NS1D420212

1/8 Hose Barb Valved Panel Mount Coupling Insert

NS1D48042812

1/4-28 Flat Bottom Port Valved Panel Mount Coupling Insert

3520800

Panel Nut (MC, Polypropylene)

664400

Panel Nut (MC, Acetal)



1/4-28 Male Thread Valved In-Line Coupling Body
NS1D10042812
1/4-28 Male Thread Valved In-Line Coupling Body


1/8 Hose Barb Valved In-Line Coupling Body
NS1D170212
1/8 Hose Barb Valved In-Line Coupling Body


1/4-28 Flat Bottom Port Valved In-Line Coupling Body
NS1D19042812
1/4-28 Flat Bottom Port Valved In-Line Coupling Body

Inserts

1/8 Hose Barb Valved In-Line Coupling Insert
NS1D220212
1/8 Hose Barb Valved In-Line Coupling Insert


1/4-28 Male Thread Valved In-Line Coupling Insert
NS1D24042812
1/4-28 Male Thread Valved In-Line Coupling Insert


1/4-28 Flat Bottom Port Valved In-Line Coupling Insert
NS1D26042812
1/4-28 Flat Bottom Port Valved In-Line Coupling Insert


1/8 Hose Barb Valved Panel Mount Coupling Insert
NS1D420212
1/8 Hose Barb Valved Panel Mount Coupling Insert

1/4-28 Flat Bottom Port Valved Panel Mount Coupling Insert
NS1D48042812
1/4-28 Flat Bottom Port Valved Panel Mount Coupling Insert

Nuts

Panel Nut (MC, Polypropylene)
3520800
Panel Nut (MC, Polypropylene)


Panel Nut (MC, Acetal)
664400
Panel Nut (MC, Acetal)

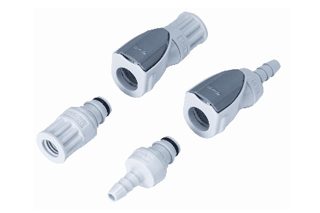

CPC Expands Offering of Small Plastic Non-Spill Couplings
CPC扩展提供了小尺寸塑料无泄漏接头

Posted by Garrett Harmon on Monday, June 9, 2014 · Leave a Comment


CPC - Colder Products Company, a provider of quick disconnect couplings and fittings for plastic tubing, announces the expansion of its NS1 Series quick disconnect couplings to now include 1/4-28 male straight thread terminations. The smallest plastic non-spill quick disconnect coupling available on the market today, the NS1 provides a secure, reliable connect and disconnect in a user-friendly, compact footprint.



NS1 Series couplings can now easily adapt to any standard 1/4-28 flat bottom port, making it simple to retrofit existing systems for increased performance and efficiency. Designed to work with industry standard ferrules, the incorporation of the NS1 1/4-28 male thread termination will allow end users to experience greater ease-of-use with dip-tube assemblies. The NS1's small size enables it to replace a nut-and-ferrule method of connection in many applications and makes it ideal for tight spaces.

“By adding the 1/4-28 male thread termination to CPC's smallest non-spill, OEMs can now properly thread the NS1 in, eliminating service calls or problems as a result of end users threading too tight or not tight enough,” says Jim Brown, business unit manager, medical markets. “The quick disconnect is faster and easier and when combined with CPC's non-spill technology, this tiny connector provides a user-friendly design free of drips at disconnection.”

NS1 Series couplings include non-spill shutoff valves that ensure drip-free disconnects. The dry-break style design of the NS1 provides ultra-low air inclusion, minimizing contaminants and eliminating the need to purge air bubbles from systems. With its intuitive, ergonomic thumb latch, the NS1 provides users with the “CPC Click” and confidence a reliable connection has been made.

The NS1 Series couplings are constructed from polypropylene and PEEK materials that ensure reliable strength and chemical compatibility for a wide range of applications. Available for precise applications with tubing sizes 1/8-inch and smaller, NS1 Series quick disconnect couplings are ideal for applications within medical devices and In Vitro Diagnostics (IVD) including reagent bottles, printing and ink handling industries or any market requiring an easy-to-use connector for small tubing.
