智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster




NS2 快速接头是印刷和墨水管理、分析仪器、电子冷却和许多其他应用
NS2 Couplings

APRIL 15, 2009 BY COUPLING

NS2 系列防溢流接头可实现快速、安全且几乎无泄漏的流体管路连接。对于印刷和墨水管理、分析仪器、电子冷却和其他应用,快速接头传输大量流体,但它们在物理上占用的空间很小。快速接头使用扭转连接锁定机制。双面无泄漏截止阀增加了安全性和便利性。接头提供软管倒钩端接,可用于管道1/8英寸(3.2 毫米)和 1/4英寸(6.4 毫米)内径。配置包括管螺纹、直插式和面板安装。 The NS2 Series non-spill couplings create fast, safe, and virtually leak-free fluid line connections. For printing and ink management, analytical instrumentation, electronic cooling, and other applications, the couplings transfer large amounts of fluid, yet they physically take up little space. The couplings’ use a twist-to-connect locking mechanism.

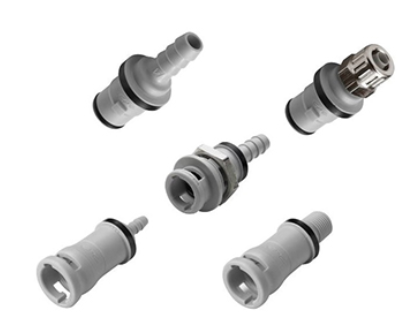

CPC NS2 SERIES - POLYPROPYLENE QUICK CONNECT/DISCONNECT
NS2 Series non-spill couplings PDF Catalog





NS2 快速接头在小尺寸、安全和经济的情况下提供经济高效、高流量的流体管路传输

明尼苏达州圣保罗 - 2007 年 1 月 15 日 - Colder Products Company 的新型紧凑型、无溢出快速断开快速接头为用户提供具有快速、安全且几乎无泄漏的流体管路连接。正在申请专利的 NS2 快速接头是印刷和墨水管理、分析仪器、电子冷却和许多其他应用的绝佳选择,可在较小的占地面积内提供高流量的流体传输。

Colder 工业市场业务部经理 Andy Hass 表示:“这款 NS2 系列快速断开接头建立在我们行业领先的防溢阀平台之上,体现了我们对易于使用的高质量接头的承诺和持续投资。”产品公司。“对于需要安全输送流体的应用,NS2 提供了一种简单的扭转连接锁定机构和双面防溢截止阀,以增加安全性和便利性。”

NS2 满足了对更小、更具成本效益的工业快速接头的需求。较小的快速接头可以替代较大的快速接头,为用户提供适用于各种快速接头应用的低成本、节省空间的选择。新的接头还提供非常低的空气夹杂物 - 连接时将空气引入接头 - 最大限度地减少污染物并减少清洗流体管线的需要。

Colder NS2 系列快速断开接头提供软管倒钩端接,可用于内径为 1/8" (3.2mm) 和 1/4" (6.4mm) 的管道。配置包括管螺纹、直插式和面板安装。无箍压缩终端连接到 ?" OD (6.4mm) 和 0.17" ID (4.3mm) 半刚性管。压力范围从真空到 45 psi (3.1 bar),工作温度范围从 32° F (0° C) 到 120° F (49° C)。





Double-sided non-spill shutoff valves add safety and convenience. The couplings offer hose barb terminations and are available for tubing in ? in. (3.2 mm) and ? in. (6.4 mm) ID. Configurations include pipe thread, in-line and panel mount.

Colder Products Company
www.colder.com



Quick Disconnect Couplings offer leak-free connections.
CPC (Colder Products Company) Feb 07, 2007 Contact This Company Company Profile Company News Company Website Share:

Press Release Summary:

For applications that require safe transfer of fluids, NS2 Couplings offer twist-to-connect locking mechanism and double-sided non-spill shutoff valves. Units are available with hose barb terminations for tubing measuring 1/8 and ?? in. ID in pipe thread, in-line, and panel mount configurations. Operating at pressure ranges from vacuum to 45 psi and temperatures from 32-120?°F, couplings are suited for printing and ink management, analytical instrumentation, and electronic cooling.

Original Press Release:

Colder Products Company Introduces Its Smallest, Non-Spill Quick Disconnect Couplings

NS2 Couplings Deliver Cost-Efficient, High-Flow Fluid Line Transfer in a Small Footprint, Safely and Economically

St. Paul, MN - January 15, 2007 - A new line of compact, non-spill quick disconnect couplings from Colder Products Company provides users with fast, safe and virtually leak-free fluid line connections. An excellent choice for printing and ink management, analytical instrumentation, electronic cooling, and many other applications, the patent-pending NS2 couplings provide high-flow fluid transfer in a small footprint.

"This NS2 Series of quick disconnect couplings builds on our industry leading platform of non-spill valves and reflects our commitment and ongoing investment in easy-to-use, high quality couplings," said Andy Hass, business unit manager, industrial markets, Colder Products Company. "For applications that require the safe transfer of fluids, the NS2 offers an easy, twist-to-connect locking mechanism and double-sided non-spill shutoff valves for added safety and convenience."

The NS2 meets the need for smaller, more cost-effective industrial couplings. The smaller couplings can replace larger ones, offering users a low-cost, space-saving option for a wide variety of coupling applications. The new couplings also offer very low air inclusion - air induced into the coupling upon connection - minimizing contaminants and reducing the need to purge fluid lines.

Colder NS2 Series quick disconnect couplings offer hose barb terminations and are available for tubing in 1/8" (3.2mm) and 1/4 " (6.4mm) ID. Configurations include pipe thread, in-line and panel mount. The ferruless compression terminations connect to ?" OD (6.4mm) and 0.17" ID (4.3mm) semi-rigid tubing. Pressure ranges from vacuum to 45 psi (3.1 bar), and operating temperatures range from 32° F (0° C) to 120° F (49° C).

For more information about available options and order quantities, please contact the Colder Products Company inside sales department at 010-84282935



About Colder Products Company
Colder Products Company is a leading provider of quick disconnect couplings to industrial, life sciences, chemical, and packaging markets. For a free catalog CD or more information, contact: Colder Products Company, 1001 Westgate Drive, St. Paul, MN 55114. Phone: 651-645-0091. Toll-free: 800-444-2474. Fax: 651-645-5404. Web: www.colder.com.

CPC, Colder Products and Colder Products Company are registered trademarks






NS2 Series 1/8" Flow Dry Break, Quick Disconnect Coupling, Colder Products Company
# ITEM

NS2D100212 1/8" Male NPT Body - Valved EPDM Polypropylene
NS2D120412 1/4" OD Ferruless Poly-Tube Body - Panel Mount - Valved EPDM Polypropylene
NS2D130412 1/4" OD Ferruless Poly-Tube Body - Valved EPDM Polypropylene
NS2D160212 1/8" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D160412 1/4" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D170212 1/8" Hose Barb Body - Valved EPDM Polypropylene
NS2D170412 1/4" Hose Barb Body - Valved EPDM Polypropylene
NS2D200412 1/4" OD Ferruless Poly-Tube Insert - Valved EPDM Polypropylene
NS2D220212 1/8" Hose Barb Insert - Valved EPDM Polypropylene
NS2D220412 1/4" Hose Barb Insert - Valved EPDM Polypropylene
