智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster

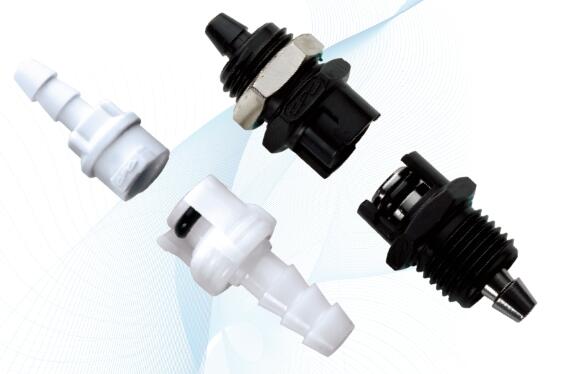

CPC SMC Polycarbonate 聚碳酸酯系列医疗用旋接式接头
CPC SMC Polycarbonate series couplings

SMC Polycarbonate 聚碳酸酯系列

CPC SMC聚碳酸酯系列是旋接式接头,为鲁尔式连接器提供可靠的替代产品。这种接头在进行管道连接时还可以自由旋转,该重要特点既可防止管道扭结,也可防止使用过程中的意外断开。SMC Polycarbonate series couplings are a twist-to-connect coupling that provides a reliable and more secure alternative to luer-type connections. It also allows for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use.

CPC SMC Polycarbonate 聚碳酸酯系列医疗用旋接式接头
CPC SMC Polycarbonate series couplings



功能与效益特点优点

旋接式 防止意外断开
接头可随意旋转 消除了管道扭结的可能
安全,防止误连接
不可与鲁尔接头通用

产品规格

压力: 真空至 to 100 psi, 6.9 bar
温度: -40°C to 121°C



材料:
主要元件:
Polycarbonate, USP Class VI, ADCF 聚碳酸酯,USP六等级,ADCF

锁套: 聚碳酸酯,USP六等级,ADCF
O 型圈: 丁晴橡胶, USP五等级,ADCF
颜色(主体): 浅紫色
管道尺寸: 1/16" 至1/8"ID,1.6mm 至3.2mm ID
*注:管内径1/16 寸的管道,最大管外径为0.15寸

Colder SMC Air Flow, 100 psig Inlet Pressure Colder SMC Water Flow
警告:压力、温度、化学品和工作环境可影响接头的性能。测试CPC产品是否适宜其应用环境属于客户责任。

Cv值
straigh-through Cv ~ 0.19 (2.74) max
single shut-off Cv ~ 0.08 (1.15) max



产品Bodies

1/16 Hose Barb Non-Valved In-Line Coupling Body
SMF0191
1/16 Hose Barb Non-Valved In-Line Coupling Body


1/8 Hose Barb Non-Valved In-Line Coupling Body
SMF0291
1/8 Hose Barb Non-Valved In-Line Coupling Body

Inserts

1/16 Hose Barb Non-Valved Coupling Insert
SMM0191
1/16 Hose Barb Non-Valved Coupling Insert


1/8 Hose Barb Non-Valved Coupling Insert
SMM0291
1/8 Hose Barb Non-Valved Coupling Insert

Other

1/16 Hose Barb Non-Valved In-Line Coupling Set
SMC0191
1/16 Hose Barb Non-Valved In-Line Coupling Set


1/8 Hose Barb Non-Valved In-Line Coupling Set
SMC0291
1/8 Hose Barb Non-Valved In-Line Coupling Set








西安嘉岳自动化技术有限公司 Garye Automation Company

地址 : 西安市未央区经济技术开发区凤城五路 89 号 5 幢 1 单元 10601 室
电话:029 - 8647 4991 手机: 18292561696
http://www.garye.cn
E-mail : sales@garye.cn
邮编 : 710018

We inspire confidence at every point of connection.
