CPC接头 SMC & SMF1快速接头
SMC Series couplings are twist-to-connect couplings
SMC Series couplings are available with RFID-enabled IdentiQuik? technology. RFID-based IdentiQuik couplings
SMC&SMF1是Colder公司小的接头产品,这种旋接式产品是鲁尔式连接的可靠替代产品。这种接头在进行管道连接时还可以自由旋转,该重要特点既可防止管道扭结,也可防止使用过程中的意外断开。
SMC系列还可提供RFID无线射频识别选项。 SMC Series couplings are twist-to-connect couplings that provide a reliable and more secure alternative to luer-type connections. The coupling design allows tubing to rotate freely when connected, preventing both kinked tubing and accidental disconnection during use.
SMC Series couplings are available with RFID-enabled IdentiQuik? technology. RFID-based IdentiQuik couplings redefine what's possible for controlling, protecting and streamlining fluid handling processes. IdentiQuik technology allows the robust transfer of fluid and information to identify device type or connected media, verify line connection accuracy or capture fluid and product data.
特点
旋接式
随意的接头旋转
连接时转四分之一圈后卡紧
优点
可防止意外断开
消除了管道扭结的可能
可防止力矩过大造成损坏
规格
压力:真空至100psi,6.9bar
温度:
聚甲醛,镀铬黄铜:-40°C至82°C)
聚丙烯:32°F至180°F(0°C至82°C)
ABS:-40°F至160°F(-40°C至71°C)
材料:
主要元件:ABS,聚甲醛,聚丙烯,镀铬黄铜
锁套:聚甲醛
阀:聚甲醛
阀簧:316不锈钢
O型圈:Buna-N丁晴橡胶配合聚甲醛或镀铬铜,EPDM三元乙丙橡胶配合聚丙烯
颜色:
主要元件:天然白色(聚甲醛和ABS),杏仁色(聚丙烯),镀铬及黑色(镀铬黄铜)
管道尺寸:1/16"至1/8"ID,1.6mm至3.2mm
警告:压力、温度、化学品和工作环境可影响接头的性能。测试Colder 产品是否适宜其应用环境属于客户责任
详细的产品参数可下载中文选型资料-参阅第12页产品选型资料。
SMC&SMF1,SMC接头,SMF1
产品Bodies
|
|
|
|
SMF01
1/16 Hose Barb Non-Valved In-Line Coupling Body |
SMF0112
1/16 Hose Barb Non-Valved In-Line Coupling Body |
SMF01MBLK
1/16 Hose Barb Non-Valved In-Line Coupling Body |
SMF02
1/8 Hose Barb Non-Valved In-Line Coupling Body |
|
|
|
|
SMF0212
1/8 Hose Barb Non-Valved In-Line Coupling Body |
SMF02MBLK
1/8 Hose Barb Non-Valved In-Line Coupling Body |
SMF10297
1/8 Hose Barb Non-Valved In-Line Disposable Coupling Body |
SMF10297
1/8 Hose Barb Non-Valved In-Line Disposable Coupling Body |
|
|
|
|
SMF10297MBLK
1/8 Hose Barb Non-Valved In-Line Disposable Coupling Body Molded Black
|
SMF10297MBLK
1/8 Hose Barb Non-Valved In-Line Disposable Coupling Body Molded Black |
SMF1M597
5mm Hose Barb Non-Valved In-Line Disposable Coupling Body |
SMF1M597
5mm Hose Barb Non-Valved In-Line Disposable Coupling Body |
|
|
|
|
SMFD01
1/16 Hose Barb Valved In-Line Coupling Body
|
SMFD01MBLK
1/16 Hose Barb Valved In-Line Coupling Body |
SMFD02
1/8 Hose Barb Valved In-Line Coupling Body |
SMFD02MBLK
1/8 Hose Barb Valved In-Line Coupling Body |
|
|
|
|
SMFDM3
3mm Hose Barb Valved In-Line Coupling Body
|
SMFDM3MBLK
3mm Hose Barb Valved In-Line Coupling Body |
SMFM3
3mm Hose Barb Non-Valved In-Line Coupling Body |
SMFM3MBLK
3mm Hose Barb Non-Valved In-Line Coupling Body
|
|
|
|
|
SMFPM01
1/16 Hose Barb Non-Valved Panel Mount Coupling Body |
SMFPM0112
1/16 Hose Barb Non-Valved Panel Mount Coupling Body |
SMFPM01BLK
1/16 Hose Barb Non-Valved Panel Mount Coupling Body |
SMFPM02
1/8 Hose Barb Non-Valved Panel Mount Coupling Body |
|
|
|
|
SMFPM0212
1/8 Hose Barb Non-Valved Panel Mount Coupling Body |
SMFPM02BLK
1/8 Hose Barb Non-Valved Panel Mount Coupling Body |
SMFPMD01
1/16 Hose Barb Valved Panel Mount Coupling Body |
SMFPMD01BLK
1/16 Hose Barb Valved Panel Mount Coupling Body |
|
|
|
|
SMFPMD02
1/8 Hose Barb Valved Panel Mount Coupling Body |
SMFPMD02BLK
1/8 Hose Barb Valved Panel Mount Coupling Body |
SMFPMDM3
3mm Hose Barb Valved Panel Mount Coupling Body |
SMFPMDM3BLK
3mm Hose Barb Valved Panel Mount Coupling Body |
|
|
|
|
SMFPMM3
3mm Hose Barb Non-Valved Panel Mount Coupling Body |
SMFPMM3BLK
3mm Hose Barb Non-Valved Panel Mount Coupling Body |
SMPT02
1/8 NPT Non-Valved Coupling Body
|
SMPT0212
1/8 NPT Non-Valved Coupling Body |
|
|
|
|
SMPT02BLK
1/8 NPT Non-Valved Coupling Body |
SMPTD02
1/8 NPT Valved Coupling Body |
SMPTD02BLK
1/8 NPT Valved Coupling Body |
Caps & Plugs
SMMP
Male Plug for SMC Series Coupling Bodies |
Products Inserts
|
|
|
|
SMM01
1/16 Hose Barb Non-Valved Coupling Insert |
SMM01
1/16 Hose Barb Non-Valved Coupling Insert |
SMM0112
1/16 Hose Barb Non-Valved Coupling Insert |
SMM01MBLK
1/16 Hose Barb Non-Valved Coupling Insert |
|
|
|
|
SMM01MBLK
1/16 Hose Barb Non-Valved Coupling Insert |
SMM02
1/8 Hose Barb Non-Valved Coupling Insert |
SMM02
1/8 Hose Barb Non-Valved Coupling Insert |
SMM0212
1/8 Hose Barb Non-Valved Coupling Insert |
|
|
|
|
SMM02CBMBLK
1/8 Hose Barb Non-Valved Coupling Insert |
SMM02CBMBLK
1/8 Hose Barb Non-Valved Coupling Insert |
SMM02MBLK
1/8 Hose Barb Non-Valved Coupling Insert |
SMM02MBLK
1/8 Hose Barb Non-Valved Coupling Insert |
|
|
|
|
SMMM3
3mm Hose Barb Non-Valved Coupling Insert |
SMMM3
3mm Hose Barb Non-Valved Coupling Insert |
SMMM3MBLK
3mm Hose Barb Non-Valved Coupling Insert |
SMMM3MBLK
3mm Hose Barb Non-Valved Coupling Insert |
|
|
|
|
SMMM5
5mm Hose Barb Non-Valved Coupling Insert |
SMMM5
5mm Hose Barb Non-Valved Coupling Insert |
SMMPM01
1/16 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM01
1/16 Hose Barb Non-Valved Panel Mount Coupling Insert |
|
|
|
|
SMMPM0112
1/16 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM01BLK
1/16 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM02
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM02
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
|
|
|
|
SMMPM0212
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM02BLK
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM02CBBLK
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPM02CBBLK
1/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
|
|
|
|
SMMPMM3
3mm Hose Barb Non-Valved Panel Mount Coupling Insert |
SMMPMM3BLK
3mm Hose Barb Non-Valved Panel Mount Coupling Insert |
|
|
Other其他产品
|
|
|
|
SMC01
1/16 Hose Barb Non-Valved In-Line Coupling Set |
SMC0112
1/16 Hose Barb Non-Valved In-Line Coupling Set |
SMC01MBLK
1/16 Hose Barb Non-Valved In-Line Coupling Set |
SMC02
1/8 Hose Barb Non-Valved In-Line Coupling Set |
|
|
|
|
SMC0212
1/8 Hose Barb Non-Valved In-Line Coupling Set |
SMC02MBLK
1/8 Hose Barb Non-Valved In-Line Coupling Set |
SMCD01
1/16 Hose Barb Valved In-Line Coupling Set |
SMCD01MBLK
1/16 Hose Barb Valved In-Line Coupling Set
|
|
|
|
|
SMCD02
1/8 Hose Barb Valved In-Line Coupling Set |
SMCD02MBLK
1/8 Hose Barb Valved In-Line Coupling Set |
SMCDM3
3mm Hose Barb Valved In-Line Coupling Set
|
SMCDM3MBLK
3mm Hose Barb Valved In-Line Coupling Set |
|
|
|
|
SMCM3
3mm Hose Barb Non-Valved In-Line Coupling Set |
SMCM3MBLK
3mm Hose Barb Non-Valved In-Line Coupling Set |
SMF1M597MBLK
5mm Hose Barb Non-Valved In-Line Disposable Coupling Molded Black |
SMF1M597MBLK
5mm Hose Barb Non-Valved In-Line Disposable Coupling Molded Black |
1/16 Hose Barb Non-Valved In-Line Coupling Body
SMF0191
1/16 Hose Barb Non-Valved In-Line Coupling Body
1/8 Hose Barb Non-Valved In-Line Coupling Body
SMF0291
1/8 Hose Barb Non-Valved In-Line Coupling Body
Inserts
1/16 Hose Barb Non-Valved Coupling Insert
SMM0191
1/16 Hose Barb Non-Valved Coupling Insert
1/8 Hose Barb Non-Valved Coupling Insert
SMM0291
1/8 Hose Barb Non-Valved Coupling Insert
Other
1/16 Hose Barb Non-Valved In-Line Coupling Set

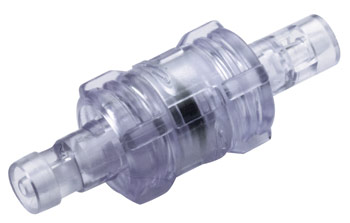

SMC0191
1/16 Hose Barb Non-Valved In-Line Coupling Set
1/8 Hose Barb Non-Valved In-Line Coupling Set
SMC0291
1/8 Hose Barb Non-Valved In-Line Coupling Set
|
