CPC SRC系列小型芯孔式接头
SRC small-bore connector

新型SRC接头是一种小型芯孔式接头。这种接头消除了可能与鲁尔接头错接的可能。这种直观的设计对于终用户来说操作简单,连接时可听到 “咔嗒" 声,增加了安全性,保证无漏连接。这种新型接头的特点是橡胶密封,光滑、无间隙的流道,为流体提供了更好的流动条件,消除了淤阻流动面积。SRC small-bore connector eliminates the potential for misconnection with luer fittings. The intuitive design is simple for end users to operate and had an audible “click” for added assurance of a secure, leak-free connection. The SRC features a unique elastomeric seal with a smooth, gap-free flow path that provides better flow and eliminates stagnant flow areas. ISO Class 7 cleanroom manufactured versions of plastic SRC components are now available. Add “CL” suffix to part numbers SRC1702, SRC1703, SRC2202, SRC2203 and SRC3L.



功能与效益特点优点

防止误接
不与IV管线或其他不兼容
应用进行连接
可靠的弹性密封圈
无泄漏连接
可听到“咔哒”响声
操作员可知何时已达到可靠
安全连接
允许管道旋转
防止意外断开或管道扭结



产品规格

规格
压力:真空至25 psi, 1.7 bar
温度:32°至110°F (0°至43°C)
(未连接模式运输时可耐受160°F)
材料:
主要元件:聚丙烯,超模压TPE*垫片,USP VI
等级认证,ADCF
整体密封圈:超模压TPE*,USP VI等级认
证,ADCF
颜色:白色,蓝色垫片
灭菌:环氧乙烷,电子射线辐照或伽玛射线
管道尺寸:
1/8"至 3/16" ID,
3.2mm至4.8mm ID

Cv值
straight-through Cv ~ 0.27 (3.89) max

产品Bodies

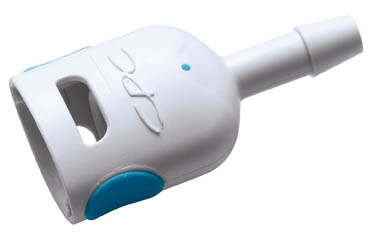

1/8 Hose Barb Coupling Body
SRC1702
1/8 Hose Barb Coupling Body


1/8 Hose Barb Coupling Body - ISO Class 7 Cleanroom Version
SRC1702CL
1/8 Hose Barb Coupling Body - ISO Class 7 Cleanroom Version


3/16 Hose Barb Coupling Body
SRC1703
3/16 Hose Barb Coupling Body


3/16 Hose Barb Coupling Body - ISO Class 7 Cleanroom Version
SRC1703CL
3/16 Hose Barb Coupling Body - ISO Class 7 Cleanroom Version

Inserts

1/8 Hose Barb Coupling Insert
SRC2202
1/8 Hose Barb Coupling Insert


1/8 Hose Barb Coupling Insert - ISO Class 7 Cleanroom Version
SRC2202CL
1/8 Hose Barb Coupling Insert - ISO Class 7 Cleanroom Version


3/16 Hose Barb Coupling Insert
SRC2203
3/16 Hose Barb Coupling Insert


3/16 Hose Barb Coupling Insert - ISO Class 7 Cleanroom Version
SRC2203CL
3/16 Hose Barb Coupling Insert - ISO Class 7 Cleanroom Version

1/8 Hose Barb Panel Mount Chrome-plated Brass Coupling Insert
SRC4202CB
1/8 Hose Barb Panel Mount Chrome-plated Brass Coupling Insert


3/16 Hose Barb Panel Mount Chrome-plated Brass Coupling Insert
SRC4203CB
3/16 Hose Barb Panel Mount Chrome-plated Brass Coupling Insert

Other

Cap and Plug Combo, Molded White Polypropylene
SRC3L
Cap and Plug Combo, Molded White Polypropylene


Cap and Plug Combo, Molded White Polypropylene - ISO Class 7 Cleanroom Version
SRC3LCL
Cap and Plug Combo, Molded White Polypropylene - ISO Class 7 Cleanroom Version
