智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster

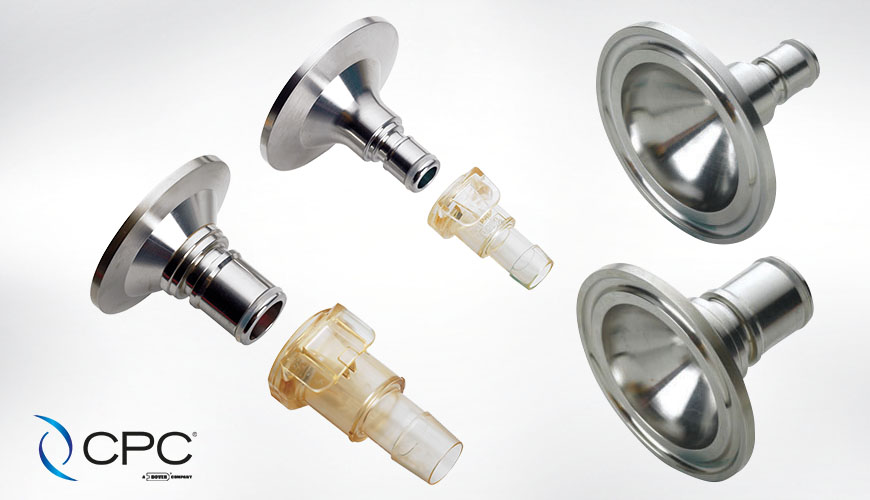

CPC’s SaniQuik connection
SaniQuik 连接产品



CPC SaniQuik?连接产品可解决这一问题:如何用单次使用部件连接您所使用的不锈钢加工设备,使用三爪卡盘连接整体卫生型终端面至硬铅锤系统,可便捷连接单次使用袋系统、歧管或者包含Colder单次使用接头的管组。SaniQuik减少更换卫生垫片,确保饲养、种植或者抽样应用过程的成本效益。CPC’s SaniQuik? connection answers the question of how to integrate single-use components with your existing stainless processing equipment. This integral sanitary termination attaches to hard-plumbed systems with tri-clover clamps. Once attached it permits quick and easy connection to single-use bag systems, manifolds or tube sets with Colder disposable coupling bodies.

特点:
3/4"到1-1/2"卫生标准端头兼容MPC和MPX
一体耦合适配器无BSE/TSE的材料
优点
用卫生垫片和三爪卡具连接至硬铅锤系统
可在单次使用袋和管组上便捷连接工业标准塑料接头
断开接头以减少卫生垫片更换
符合ADCF要求
规格
压力:真空至60psi,4.14bar
温度:-40oF到300oF(-40oC到149oC)
材料:
主要部件:316L不锈钢
O型圈:硅树脂(透明),铂金固化,USPVI等级认证,ADCF
灭菌:高压灭菌器
若未特别注明,所有测量数据单位均为英制(毫米),管线必须符合规定的内外径尺寸。
详细的产品参数可下载中文选型资料-参阅第82页产品选型资料。
Colder SaniQuik,CPC





SaniQuik
Home Industries Biopharma SaniQuik

Features & Benefits

Disconnecting coupling reduces sanitary gasket replacement
Features Benefits
3/4" and 1-1/2" sanitary terminations Connect to hard plumbed systems with sanitary standard gaskets and tri-clover clamps
Compatible with MPC & MPX Series Quick and easy connections to industry standard plastic couplings on single-use bag and tube sets
Integral coupling adaptor Disconnecting coupling reduces sanitary gasket replacement
BSE/TSE free materials Meet ADCF requirements
Specifications

Pressure: Vacuum to 60 psi, 4.14 bar
Temperature: -40°F to 300°F (-40°C to 149°C)
Sterilization: Autoclave

Materials:
Main components: 316L
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCFCompatible with MPC and MPX
Cv Value

straight-through Cv~14.2 (204.60) max
Legend
Legend

Products
Inserts

3/4 Sanitary Fitting Non-Valved Coupling Insert
SQCC221212M
3/4 Sanitary Fitting Non-Valved Coupling Insert


1-1/2 Sanitary Fitting Non-Valved Coupling Insert
SQCC222424M
1-1/2 Sanitary Fitting Non-Valved Coupling Insert


3/4 Sanitary Fitting Non-Valved Coupling Insert
SQCX221212M
3/4 Sanitary Fitting Non-Valved Coupling Insert


1-1/2 Sanitary Non-Valved Coupling Insert, .86 Bore
SQCX222416M
1-1/2 Sanitary Non-Valved Coupling Insert, .86 Bore

1-1/2 Sanitary Fitting Non-Valved Coupling Insert
SQCX222424M
1-1/2 Sanitary Fitting Non-Valved Coupling Insert

O-Rings and Seals

SaniQuik USP Class VI, ADCF Silicone O-Ring
2260100
SaniQuik USP Class VI, ADCF Silicone O-Ring


SaniQuik USP Class VI, ADCF Silicone O-Ring
2260200
SaniQuik USP Class VI, ADCF Silicone O-Ring
