CPC医疗用卫生接头Sanitary connections
Sanitary couplings

卫生接头
卫生型接头直接连接至通常小为3/4且大为1"的卫生型连接器，无需使用笨重的接合器和管线装配。直接连接可保证更快地连接或具有弹性的管线系统断开。Sanitary couplings attach directly to popular 3/4" mini and 1" maxi size sanitary connections, eliminating the need for cumbersome adapters or tubing assemblies. Direct attachment allows faster connection to and disconnection from installed, rigid and flexible piping systems.

功能与效益

符合人体工学的拇指闩锁
即使戴着手套亦可便捷操作
3/4”和1”卫生型端头
使用标准垫片和夹具安装
兼容MPC和MPX系列接头
易于转换为工业标准连接或单次使用系统
无BSE/TSE的材料
符合ADCF要求

产品规格

规格
压力：真空至60psi 4.14 bar
温度：
-40oF到300oF（-40oC到149oC）

材料：
主要部件：
聚砜树脂（淡琥珀色），USP VI 等级认证,
ADCF
O 型圈（接合插嘴）：硅树脂（透明），铂金
固化，USP VI 等级认证, ADCF

灭菌：
伽玛辐射：大达50k Gy辐射
高压蒸汽灭菌器：大270oF（132oC）
，60分钟，多25次
重复，仅限断开时灭菌
端头尺寸：3/4"和1"卫生型

Cv值
straight-through Cv ~ 5.5 (79.25) 大 with MPC inserts and 14.2 (204.60) 大 with MPX inserts

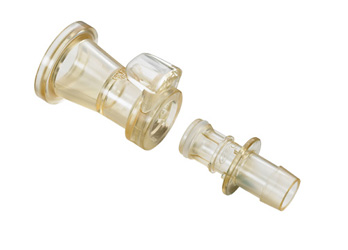

CPC Sanitary coupling

SANITARY
CPC Sanitary coupling attaches directly to ?", 1" and 1?" sanitary terminations to provide greater flexibility for integrating components into single-use or hybrid (single-use to stainless) process systems.Attach directly to popular 3/4" mini and 1" maxi size sanitary connections and eliminate the need for cumbersome adapters or tubing assemblies. Direct attachment allows faster connection to and disconnection from installed, rigid and flexible piping systems.

Sanitary Series Couplings: Medical-Grade Polysulfone, 3/4" Mini and 1" Maxi

Standard bag systems with quick couplings can be easily connected to equipment with sanitary terminations, while single-use cartridge filters can be converted to incorporate quick couplings for greater system modularity.

Ergonomic thumb latch allows for easy operation - even with gloved hands
?" mini and 1"maxi sanitary & 1?" sanitary terminations are installed with standard gaskets and clamps
Compatibility with MPC and MPX Series and Back-to-Back adaptors provides for easy conversion to industry standard connections on single-use systems
BSE/TSE free materials meet ADCF requirements
SPECIFICATIONS
Pressure: Vacuum to 60 psi, 4.14 bar
Temperature: -40°F (-40°C) to 300°F (149°C)
Main components: Polysulfone (amber tint), USP Class VI, ADCF
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCF
Sanitary sizes: ?" mini and 1" maxi and 1?"
Autoclave Sterilization: At 270°F (132°C) for 60 minutes, up to 25 cycles
EtO Sterilization: Up to five cycles
Gamma irradiation Sterilization: Up to 50 Kilograys
E-Beam Sterilization: Up to 50 Kilograys

产品Bodies

3/4 Sanitary Non-Valved Coupling Body
MPC3301239
3/4 Sanitary Non-Valved Coupling Body

1 Sanitary Non-Valved Coupling Body
MPC3301639
1 Sanitary Non-Valved Coupling Body

3/4 Sanitary Coupling Body
MPX3301239
3/4 Sanitary Coupling Body

Inserts

3/4 Sanitary Non-Valved MPC Coupling Insert
MPC44012T39M
3/4 Sanitary Non-Valved MPC Coupling Insert

1 1/2 Sanitary Non-Valved MPC Coupling Insert
MPC44024T39M
1 1/2 Sanitary Non-Valved MPC Coupling Insert

3/4 Sanitary Non-Valved MPX Coupling Insert
MPX44012T39M
3/4 Sanitary Non-Valved MPX Coupling Insert

1-1/2 Sanitary Non-Valved MPX Coupling Insert
MPX44024T39M
1-1/2 Sanitary Non-Valved MPX Coupling Insert
