CPC Sixtube六管道系列接头 美国CPC塑料快速接头

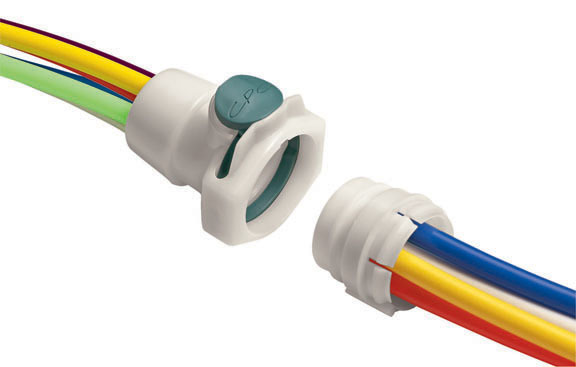

CPC Sixtube Coupling 六管道系列接头



详细信息 :

扣板式安装设计,接断灵活、方便; 在有阀门或无阀门的情况下,均可连接和断开六条单 独的管线。 CPC Sixtube六管道系列接头为多六个单独的流体管线提供了一种使用方便的快速接头。Sixtube的任何一侧都有阀门,大程度地提高了设计灵活性。特点是有一个Colder指锁,只需按一下按钮Sixtube即可断开多六条管线。扣接式板安装设计使设备面板前面的外形很低。3/32"流量TwinTube双管道系列接头为两个单独的流体管线提供了一种使用方便的快速接头。无阀门的TwinTube在一个接头内保留了两个单独的流道。特点是有一个Colder指锁,只需按一下按钮TwinTube即可断开两条管线。板安装设计使设备面板前面的外形很低。The Sixtube coupling provides one easy-to-use quick disconnect for up to six separate fluid lines. The Sixtube is available with valves on either side for maximum design flexibility. Featuring the CPC thumb latch, the Sixtube can disconnect up to six lines with the push of a button. The snap-in panel mount design keeps a low profile on the front of the equipment panel.

CPC Sixtube Coupling 六管道系列接头
CPC Sixtube Coupling PDF Catalog六管道系列接头技术资料下载




CPC Sixtube Coupling 六管道系列接头特点

六条/两条管线连接
单独流道
Sixtube插嘴部分与接头母座采用键联接
接头可自由转动(仅限双管路)
Colder指锁


CPC Sixtube Coupling 六管道系列接头优点


操作快速、高效
一个接头内并存压力和/或真空部分
可保证线路方位正确
防止管道扭结
可单手连接和断开


CPC Sixtube Coupling 六管道系列接头的规格

压力:真空至100psi,6.9bar(每条管线)
温度:
聚甲醛配件插嘴:-40°F至180°F(-40°C至82°C)
聚丙烯配件插嘴:32°F至180°F(0°C至82°C)
材料:
主要元件:聚甲醛
阀:聚甲醛
配件插嘴:聚甲醛或聚丙烯
指锁:聚甲醛
阀簧:316不锈钢
O型圈:聚甲醛配合丁腈橡胶,聚丙烯配合三
元乙丙橡胶
颜色:天然白,带浅绿色指锁
管道尺寸:1/16"至1/8"ID,1.6mm至3.2mmID

注意:订购Sixtube组件时一定要小心。母座和插嘴部分都有公母接头,一定要对应上。若有任何疑问或如需帮助请与029-86474991联系

CPC Sixtube Coupling 六管道系列接头 医疗体外诊断设备 Sixtube
产品 Bodies

SX17
SixTube Coupling Body Without Fittings
SXF1701
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
SXF170112
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
SXF1702
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF170212
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF17M3
Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
SXFD1701
Valved Coupling Body with 1/16 Hose Barb Female Fitting Inserts
SXFD1702
Valved Coupling Body with 1/8 Hose Barb Female Fitting Inserts
SXFD17M3
Valved Coupling Body with 3mm Hose Barb Female Fitting Inserts
SXM1701
Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts
SXM170112
Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts
SXM1702
Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts

SXM170212
Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts
SXM17M3
Non-Valved Coupling Body with 3mm Hose Barb Male Fitting Inserts
Caps & Plugs

Sixtube Pressure Plug
TMPMWHT



Inserts

SX42
SixTube Coupling Insert Without Fittings
SXF4201
Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXF420112
Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXF4202
Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF420212
Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF42M3
Non-Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies
SXFD4201
Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXFD4202
Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXFD42M3
Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies
SXM4201
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
SXM420112
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
SXM4202
Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts

SXM420212
Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts
SXM42M3
Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts


CPC Sixtube Coupling 六管道系列接头

SixTube Coupling Body Without Fittings
SX17
SixTube Coupling Body Without Fittings


Quick ViewNon-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
SXF1701
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies


Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
SXF170112
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies


Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF1702
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
SXF170212
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies


Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
SXF17M3
Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies


Valved Coupling Body with 1/16 Hose Barb Female Fitting Inserts
SXFD1701
Valved Coupling Body with 1/16 Hose Barb Female Fitting Inserts


Valved Coupling Body with 1/8 Hose Barb Female Fitting Inserts
SXFD1702
Valved Coupling Body with 1/8 Hose Barb Female Fitting Inserts

Valved Coupling Body with 3mm Hose Barb Female Fitting Inserts
SXFD17M3
Valved Coupling Body with 3mm Hose Barb Female Fitting Inserts


Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts
SXM1701
Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts


Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts
SXM170112
Non-Valved Coupling Body with 1/16 Hose Barb Male Fitting Inserts


Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts
SXM1702
Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts

Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts
SXM170212
Non-Valved Coupling Body with 1/8 Hose Barb Male Fitting Inserts


Non-Valved Coupling Body with 3mm Hose Barb Male Fitting Inserts
SXM17M3
Non-Valved Coupling Body with 3mm Hose Barb Male Fitting Inserts

Caps & Plugs

Sixtube Pressure Plug
TMPMWHT
Sixtube Pressure Plug

Inserts

SixTube Coupling Insert Without Fittings
SX42
SixTube Coupling Insert Without Fittings


Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXF4201
Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies


Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXF420112
Non-Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies


Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF4202
Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXF420212
Non-Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies


Non-Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies
SXF42M3
Non-Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies


Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies
SXFD4201
Valved Coupling Insert with 1/16 Hose Barb Female Fitting Bodies


Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies
SXFD4202
Valved Coupling Insert with 1/8 Hose Barb Female Fitting Bodies

Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies
SXFD42M3
Valved Coupling Insert with 3mm Hose Barb Female Fitting Bodies


Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
SXM4201
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts


Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
SXM420112
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts


Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts
SXM4202
Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts

Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts
SXM420212
Non-Valved Coupling Insert with 1/8 Hose Barb Male Fitting Inserts


Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
SXM42M3
Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
