CPC TwinTube双管道接头 CPC Twin Tube coupling

Twin Tube

The Twin Tube coupling provides one easy-to-use quick disconnect for two separate fluid lines. The non-valved Twin Tube maintains two individual flow paths in one coupling. Featuring the CPC thumb latch, the Twin Tube can disconnect two lines with the push of a button. The panel mount design keeps a low profile on the front of the equipment panel.



CPC Twin Tube Coupling PDF Catalog Download
CPC TwinTube Coupling双管道接头技术资料下载



CPC TwinTube双管道接头系列规格

压力:真空至120psi,8.3bar(每条管线)
温度:-40°F至180°F(-40°C至82°C)
材料材料:
主要元件:聚甲醛,ABS
指锁:不锈钢
外簧和插销:不锈钢
O型圈:丁腈橡胶
颜色:天然白(聚甲醛),白色(ABS)
管道尺寸:1/16"至1/8"ID,1.6mm至3.2mmID



CPC TwinTube Coupling双管道接头 CPC Twin Tube Coupling



产品


Bodies母头

PTC16010
1/16 Hose Barb Non-Valved Coupling Body
PTC16020
1/8 Hose Barb Non-Valved Coupling Body

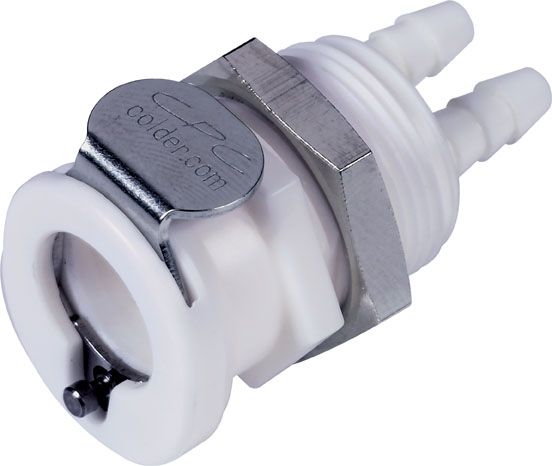

PTC1602096
1/8 Hose Barb Non-Valved Coupling Body



1/16 Hose Barb Non-Valved Coupling Body
PTC16010
1/16 Hose Barb Non-Valved Coupling Body


1/8 Hose Barb Non-Valved Coupling Body
PTC16020
1/8 Hose Barb Non-Valved Coupling Body


1/8 Hose Barb Non-Valved Coupling Body
PTC1602096
1/8 Hose Barb Non-Valved Coupling Body



Inserts公头

PTC22010
1/16 Hose Barb Non-Valved Coupling Insert

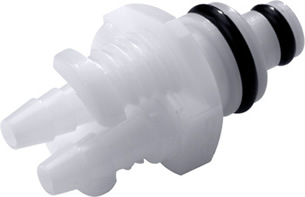

PTC22020
1/8 Hose Barb Non-Valved Coupling Insert
PTC2202096
1/8 Hose Barb Non-Valved Coupling Insert



1/16 Hose Barb Non-Valved Coupling Insert
PTC22010
1/16 Hose Barb Non-Valved Coupling Insert


1/8 Hose Barb Non-Valved Coupling Insert
PTC22020
1/8 Hose Barb Non-Valved Coupling Insert


1/8 Hose Barb Non-Valved Coupling Insert
PTC2202096
1/8 Hose Barb Non-Valved Coupling Insert

Nuts

Panel Nut (LC, Acetal)
520300
Panel Nut (LC, Acetal)





CPC Twin Tube Series: Multiple Line Couplings


The 3/32" flow Twin Tube? coupling provides one easy-to-use quick disconnect for two separate fluid lines. The non-valved Twin Tube maintains two individual flow paths in one coupling. Featuring the Colder thumb latch, the Twin Tube can disconnect two lines with the push of a button. The panel mount design keeps a low profile on the front of the equipment panel.


Click Here To Download:
?Colder Products Company General Catalog


Colder's plastic couplings cover a wide range of general-purpose applications. Available in a variety of nominal flow sizes from 1/8" to 1/2". One-hand connection and disconnection and integral terminations make the plastic coupling the choice for ease of use and manufacture.

The 3/32" flow Twin Tube? coupling provides one easy-to-use quick disconnect for two separate fluid lines. The non-valved Twin Tube maintains two individual flow paths in one coupling. Featuring the Colder thumb latch, the Twin Tube can disconnect two lines with the push of a button. The panel mount design keeps a low profile on the front of the equipment panel.



Features

Two line connection
Separate flow paths
CPC thumb latch
Free coupling rotation
Benefits
Fast, efficient operation
Pressure and/or vacuum in one coupling
One-hand connection and disconnection
Eliminates kinked tubing
Applications may include:
Pneumatic controls
Blood pressure monitoring
Ink jet printing
Disk drive components, robotics and wire turning equipment


Click Here To Download:
Colder Products Company General Catalog
