美国CPC塑料快速接头 HFC12 系列快速接头HFC12 Series couplings
CPC - Colder Products Company | Products | 通用连接器 | HFC12 系列接头

详细信息 :

CPC HFC12快速接头已取得专利权,通径为3/8英吋,它的流量与一般1/2英吋通径的快速接头相约。该接头结构精巧,重量轻,HFC接头替代了大量应用中厚重的铜球套式接头。符合人体工学的设计以及大型有罩指锁使该接头便于握住,操作简单。高效的阀门设计流量大, 泄漏少。Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.

CPC HFC12 系列快速接头HFC12 Series couplings

特点
高效阀门
人体工学设计
聚丙烯材料
可兼容
优点
结构精巧,流量大
易于握住,操作简单
抗化学能力强,可经伽玛射线消毒
可与HFC35和HFC57接头配用

规格
压力:真空至60psi,4.2bar
温度:32°F至160°F(0°C至71°C)
材料:主要元件和阀:聚丙烯
指锁:聚丙烯
阀簧(湿润):316不锈钢
外簧:316不锈钢
O型圈:EPDM
穿板式垫圈:EPDM
压缩螺母,夹钳,套管:聚丙烯

颜色:灰色,深灰色指锁

管道尺寸:3/8"至3/4"ID,9.5mm至19.0mm ID
压缩端头规格:3/8"OD或1/2"OD,+0.010/-0.000

警告:压力、温度、化学品和工作环境可影响接头的性能。测试Colder产品是否适宜应用条件属于客户责任。

您知道吗...
Colder公司可为广泛的应用条件提供7,000余种接头,应用范围包括低压空气和液体管线连接、高纯度化学品管理和生物加工接头。请致电86-0769-22300655了解Colder公司是如何让您的连接更清洁、更快速、更安全、更智能!

详细的产品参数可下载中文选型资料-参阅第58页产品选型资料。

产品Bodies

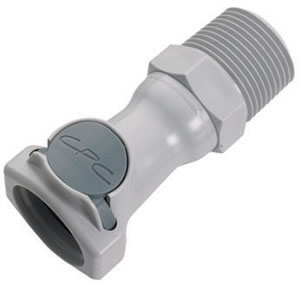

HFC101212

3/4 NPT Non-Valved Coupling Body

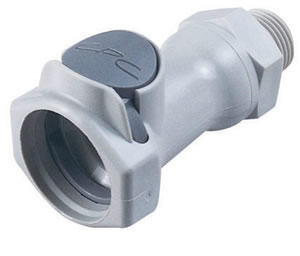

HFC10612

3/8 NPT Non-Valved Coupling Body

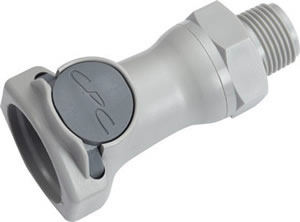

HFC10612BSPT

3/8 BSPT Non-Valved Coupling Body

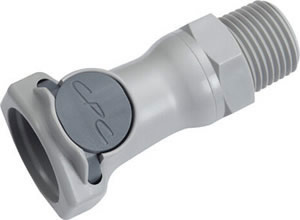

HFC10812

1/2 NPT Non-Valved Coupling Body

HFC12612

3/8 JACO Non-Valved Panel Mount Coupling Body

HFC12812

1/2 JACO Non-Valved Panel Mount Coupling Body

HFC13612

3/8 JACO Non-Valved In-Line Coupling Body

HFC13812

1/2 JACO Non-Valved In-Line Coupling Body

HFC161012

5/8 Hose Barb Non-Valved Panel Mount Coupling Body

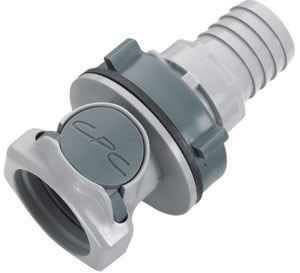

HFC161212

3/4 Hose Barb Non-Valved Panel Mount Coupling Body

HFC16612

3/8 Hose Barb Non-Valved Panel Mount Coupling Body

HFC16812

1/2 Hose Barb Non-Valved Panel Mount Coupling Body

HFC171012

5/8 Hose Barb Non-Valved In-Line Coupling Body

HFC171212

3/4 Hose Barb Non-Valved In-Line Coupling Body

HFC17612

3/8 Hose Barb Non-Valved In-Line Coupling Body

HFC17812

1/2 Hose Barb Non-Valved In-Line Coupling Body

HFCD101212

3/4 NPT Valved Coupling Body

HFCD10612

3/8 NPT Valved Coupling Body

HFCD10612BSPT

3/8 BSPT Valved Coupling Body

HFCD10812

1/2 NPT Valved Coupling Body

HFCD12612

3/8 Compression Valved Panel Mount Coupling Body

HFCD12812

1/2 JACO Valved Panel Mount Coupling Body

HFCD13612

3/8 JACO Valved In-Line Coupling Body

HFCD13812

1/2 JACO Valved In-Line Coupling Body

HFCD161012

5/8 Hose Barb Valved Panel Mount Coupling Body

HFCD161212

3/4 Hose Barb Valved Panel Mount Coupling Body

HFCD16612

3/8 Hose Barb Valved Panel Mount Coupling Body

HFCD16812

1/2 Hose Barb Valved Panel Mount Coupling Body

HFCD171012

5/8 Hose Barb Valved In-Line Coupling Body

HFCD171212

3/4 Hose Barb Valved In-Line Coupling Body

HFCD17612

3/8 Hose Barb Valved In-Line Coupling Body

HFCD17812

1/2 Hose Barb Valved In-Line Coupling Body

Caps & Plugs
HFC312L
HFC Tethered Cap

Caps & Plugs
HFC312
HFC Cap


Inserts插头体

HFC20612

3/8 JACO Non-Valved Coupling Insert

HFC20812

1/2 Compression Non-Valved In-Line Insert

HFC221012

5/8 Hose Barb Non-Valved In-Line Coupling Insert

HFC221212

3/4 Hose Barb Non-Valved In-Line Coupling Insert

HFC22612

3/8 Hose Barb Non-Valved In-Line Coupling Insert

HFC22812

1/2 Hose Barb Non-Valved In-Line Coupling Insert

HFC231212

3/4 Hose Barb Non-Valved Elbow Coupling Insert

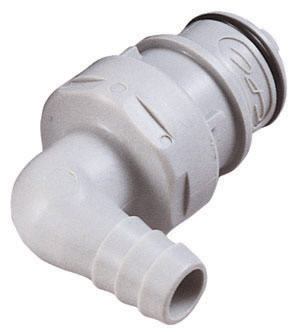

HFC23612

3/8 Hose Barb Non-Valved Elbow Coupling Insert

HFC23812

1/2 Hose Barb Non-Valved Elbow Coupling Insert

HFC241212

3/4 NPT Non-Valved Coupling Insert

HFC24612

3/8 NPT Non-Valved Coupling Insert

HFC24612BSPT

3/8 BSPT Non-Valved Coupling Insert

HFC24812

1/2 NPT Non-Valved Coupling Insert

HFCD20612

3/8 JACO Valved Coupling Insert

HFCD20812

1/2 JACO Valved Coupling Insert

HFCD221012

5/8 Hose Barb Valved In-Line Coupling Insert

HFCD221212

3/4 Hose Barb Valved In-Line Coupling Insert

HFCD22612

3/8 Hose Barb Valved In-Line Coupling Insert

HFCD22812

1/2 Hose Barb Valved In-Line Coupling Insert

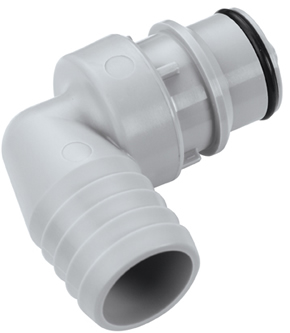

HFCD231212

3/4 Hose Barb Valved Elbow Coupling Insert

HFCD23612

3/8 Hose Barb Valved Elbow Coupling Insert

HFCD23812

1/2 Hose Barb Valved Elbow Coupling Insert

HFCD241212

3/4 NPT Valved Coupling Insert


HFCD24612

3/8 NPT Valved Coupling Insert



HFCD24612BSPT

3/8 BSPT Valved Coupling Insert

HFCD24812

1/2 NPT Valved Coupling Insert

621300

Nut, Panel Mount (HFC)



694300
Panel Nut (HFC)
O-Rings and Seals

621200
Panel Mount Gasket (HFC35 & 57, HFC12)
