智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster



CPC HFC39 系列无菌断开接头Aseptic Disconnect HFC39 Connections
CPC HFC39 aseptic disconnect couplings
HFC39 Series couplings



CPC HFC39 无菌断开接头通过断开阻止外部有机体进入流体培养基,可以不用卡盘和试管焊接 ,自动关闭阀门关闭流体路径以保护重要的培养基,简单易用的指按闩设计提供安全、防泄漏的连接,确保用一只手即可断开。HFC39 Series couplings provide aseptic disconnect functionality. Automatic shutoff valves close off the flow path at disconnection, protecting valuable media while also eliminating the need for pinch clamps and tube welders. An easy-to-use thumb latch design provides a secure, leak-free connection as well as enabling one-handed disconnects.




特点 优点

自动关闭阀门
对预灭菌系统可靠的无菌断开
可听到" 咔哒" 响声
提供安全连接的保证
轻量
易于与单次使用组件集成
无BSE/TSE的材料 符合ADCF要求



产品规格

规格 压力:真空至125psi,8.62bar

温度:-40oF到280oF(-40oC到138oC)
材料:主要部件:聚砜树脂(淡琥珀色),
USP VI 等级认证, ADCF
O型圈:硅树脂(透明),铂金固化,USP VI
等级认证, ADCF
弹簧:316不锈钢

灭菌:
伽玛辐射:大达50k Gy伽玛辐射, 可于接 头连接或断开时灭菌
高压蒸汽灭菌器:大达270oF(132oC) 持续60 分钟,对未连接单元大25 次重复 和对连接单元多1次重复

管道尺寸:1/4",3/8",1/2"内径
6.4mm,9.5mm,12.7mmn内径

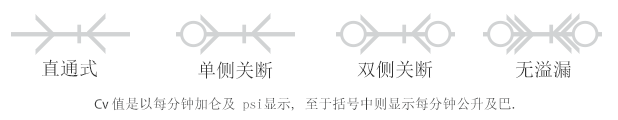

Cv值

single shut-off

Cv ~ 1.6 (23.05) 大

Cv ~ 1.5 (21.61) 大





CP Aseptic Disconnect HFC39 Connections
Source: CPC

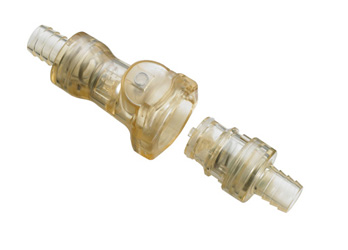

HFC39 aseptic disconnect couplings prevent external organisms from entering into the media flow path upon disconnection. Automatic shutoff valves close off the flow path aseptically protecting valuable sterile media while also eliminating the need for pinch clamps and tube welders. The easy-to-use thumb latch design provides a secure, leak-free connection and enables one-hand disconnects. HFC39 connections are made of polysulfone materials with silicone seals and are ADCF, meet U.S.P. Class VI requirements and can be sterilized using autoclave or gamma.


Click Here To Download:
- Product Sheet: HFC39 Series Couplings — Medical-Grade Polysulfone, 1/4", 3/8", And 1/2" ID
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
- HFC39 Series Product Validation Report

HFC39 aseptic disconnect couplings prevent external organisms from entering into the media flow path upon disconnection. Automatic shutoff valves close off the flow path aseptically protecting valuable sterile media and eliminate the need for pinch clamps and tube welders. The easy-to-use thumb latch design provides a secure, leak-free connection and enables one-hand disconnects. HFC39 connections are made of polysulfone material with silicone seals and are ADCF, meet U.S.P. Class VI requirements and are sterilizable using autoclave or gamma methods.

Features

Validated aseptic disconnect of pre-sterilized systems
Audible "click" when engaged
USP Class VI polysulfone material
Sterilizable by autoclave, Et0, e-beam, or gamma
Lightweight
Benefits
Stops flow and eliminates need for pinch clamps
Confidence of a secure connection
Physical strength, durability and an excellent replacement for stainless steel
Reusable and compatible with your existing processes
Removes extra weight from assemblies
Applications may include:
Bioprocessing
Laboratory tubing connections
Cell culture media transfer
Kidney dialysis equipment
Pharamceutical equipment
Diagnostic manufacturing
Click Here To Download:
- Product Sheet: HFC39 Series Couplings — Medical-Grade Polysulfone, 1/4", 3/8", And 1/2" ID
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
- HFC39 Series Product Validation Report





HFC39 aseptic disconnect couplings产品Bodies

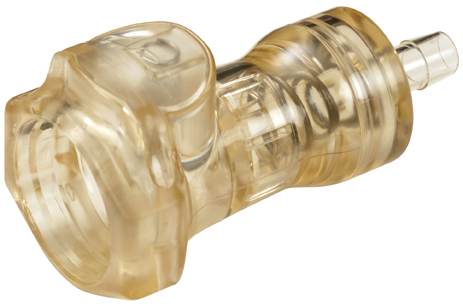

1/4 Hose Barb Valved In-Line Coupling Body
HFCD17439M
1/4 Hose Barb Valved In-Line Coupling Body


3/8 Hose Barb Valved In-Line Coupling Body
HFCD17639M
3/8 Hose Barb Valved In-Line Coupling Body


1/2 Hose Barb Valved In-Line Coupling Body
HFCD17839M
1/2 Hose Barb Valved In-Line Coupling Body

Caps & Plugs

Quick ViewSealing Plug HFC39
HFC30039M
Sealing Plug HFC39


HFC Cap
HFC312
HFC Cap


HFC Tethered Cap
HFC312L
HFC Tethered Cap


Sealing Cap HFC39
HFC32039
Sealing Cap HFC39

Inserts

1/4 Hose Barb Non-Valved In-Line Coupling Insert
HFC22439M
1/4 Hose Barb Non-Valved In-Line Coupling Insert


3/8 Hose Barb Non-Valved In-Line Coupling Insert
HFC22639M
3/8 Hose Barb Non-Valved In-Line Coupling Insert


1/2 Hose Barb Non-Valved In-Line Coupling Insert
HFC22839M
1/2 Hose Barb Non-Valved In-Line Coupling Insert

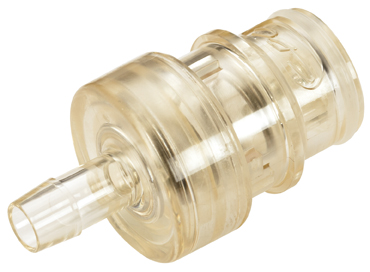

1/4 Hose Barb Valved In-Line Coupling Insert
HFCD22439M
1/4 Hose Barb Valved In-Line Coupling Insert

3/8 Hose Barb Valved In-Line Coupling Insert
HFCD22639M
3/8 Hose Barb Valved In-Line Coupling Insert


1/2 Hose Barb Valved In-Line Coupling Insert
HFCD22839M
1/2 Hose Barb Valved In-Line Coupling Insert
DrumQuik PUR Accessories
SRC
SMC Polycarbonate
MPC
MPX
MPU
Sanitary
HFC39
