Hybrid connector / circular CPC – Colder Products Company CPC医疗 Hybrid Connector
CPC Hybrid Connector混合连接器

详细信息 :

Colder公司的新型Hybrid混合型接头消除了对多连接的需要,简化了远程工具和设备之间的用户接口。特点是采用易于操作的扭锁,一个简单的动作即可将所有部分牢固地连接起来,技术人员可迅速更换需要电源、信号、空气或液体组合的模块化工具、输送管或手动件。


Hybrid连接器采用干式断开技术,目前对于液体和电子线路,设计师可以自信地指定一种连接器即可解决。流线型接口设计使设计工程师可根据要求调整产品。为了节省您宝贵的工程资源,请为您的特定应用选择现货供应的交钥匙解决方案或定制型解决方案。

CPC Mini Hybrid Connector混合连接器视频

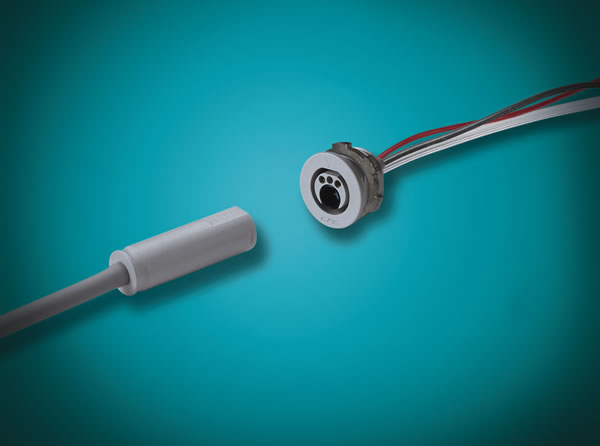

Hybrid Connector technology from CPC eliminates the need for multiple connections between remote tools and a device. For applications requiring a smaller footprint, the new Mini Hybrid provides a compact, single connection point for both air and electrical lines.

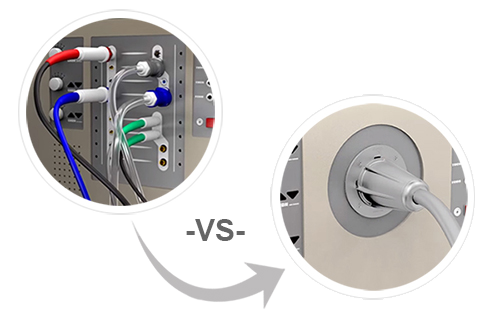

With a breakaway latching mechanism, the Mini Hybrid simplifies the user interface, speeds device setup and enhances user perception of overall device performance. Combining all the connection points into an integrated, proven assembly also improves patient safety by eliminating misconnections.

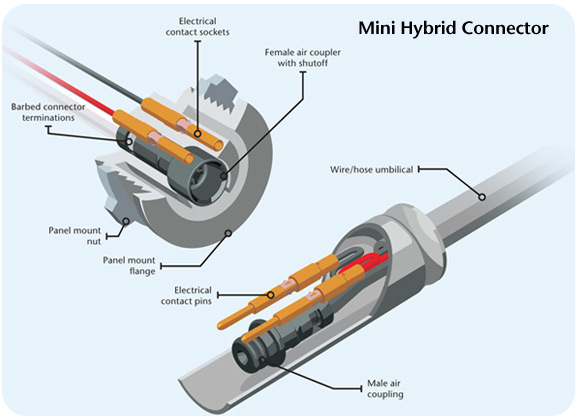

The Mini Hybrid incorporates our reliable SMC coupling platform and features gold-plated brass electrical contacts. Engineers can confidently specify the Mini Hybrid for their pneumatic and low power applications. Save your valuable engineering resources with the off-the-shelf, turnkey solution or work with our design team to create a customized solution for your specific application.


特点
为设备和设备工具/手动件之间的气动、液体、数据和电力传输提供一个单一连接点
采用干式断开技术的无漏截止阀
交钥匙解决方案
现货供应
自定义选项

优点
提高了安全性,使系统对用户更方便
消除了断开时的滴液现象,大程度地减少夹带空气
减少了元件用量
大限度地减少了工程设计量和生产付出
为满足您的独特要求而设计
接头规格
压力:真空至45psi,3.1bar
温度:40℉至100℉(4℃至38℃)
材料:
不润湿接头元件:
玻璃纤维填充聚丙烯和聚甲醛
润湿接头元件:玻璃纤维填充聚丙烯
弹簧:不锈钢
电气触点:镀金黄铜
O型圈:三元乙丙橡胶
管道:聚氯乙烯
颜色:黑色
板端头:板上(2)根1/8"倒钩软管和(4)根带12"尾纤的20ga电线
软管端头:(1)根内径1/8"和(1)根内径1/16"的PVC管和(4)根带3"尾纤的20ga
电线液体管线数量:2
电气规范
电压:大为24VDC
电流:大为3Amps
线规:20AWG
触点数量:4

产品
Bodies

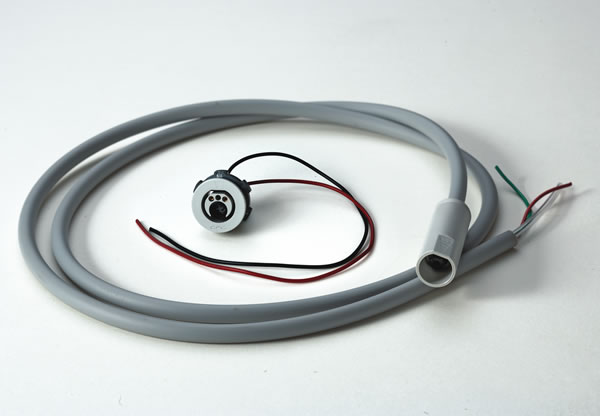

Hybrid (Mini) Connector, Inline body, 4’ (1.2m) umbilical with 1/16” (3.2mm) ID tube, (2) 22 gauge wires


MHQC17000
Hybrid (Mini) Connector, Inline body, 4’ (1.2m) umbilical with 1/16” (3.2mm) ID tube, (2) 22 gauge wires

Inserts

Hybrid (Mini) Connector, Panel Mount insert, 1/16” (3.2mm) ID tube (2) 22 gauge wires, valved


MHQC42000
Hybrid (Mini) Connector, Panel Mount insert, 1/16” (3.2mm) ID tube (2) 22 gauge wires, valved



CPC Colder Products Compan采用混合型Hybrid连接器技术简化连接
定制化解决方案帮助中国制造商量身设计医疗设备



This revolutionary Hybrid Connector from Colder is designed to eliminate the need for multiple connections. It simplifies the user interface between remote tools and a device. It even features an easy-to-use twist latch to secure connection. It can be changed or replaced modular tools, umbilicals or hand pieces that requires a combination of power, signal, air or fluids. It has amazingly unique features such as dry-break technology and Hybrid Connector that allows designers to confidently specify a single connector for both fluids and electronics. The streamlined interface allows to adapt the product to their needs with many customization options available. 这一革命性的混合连接器从冷的目的是消除多个连接的需要。它简化了远程工具与设备之间的用户界面。它甚至具有易于使用的扭锁的安全连接。它可以改变或替换的模块化工具,脐带或手件,需要结合功率,信号,空气或液体。它有惊人的独特的功能,如干打破技术和混合连接器,使设计人员能够自信地指定为液体和电子单连接器。流线型的界面可以适应他们的需要的产品有很多定制选项。



Colder’s Mini Hybrid Connector utilizes a breakaway latch mechanism which simplifies the user interface whilst speeding up setup and increasing the user perception of device function and performance. This device removes the need for multiple connections between a device and remote tools, and is the ideal device for applications that need a smaller footprint. The Mini Hybrid Connector is a compact single-connection point suitable for use with air and electrical lines. . 冷的迷你混合接头采用分离锁机构,简化了用户界面的同时,加快建立和提高设备的功能和性能的用户感知。本装置消除装置和远程工具之间的多个连接的需要,是一种理想的设备,需要一个较小的尺寸的应用。迷你型连接器适用于空气和电气线路紧凑的单个连接点。


This device increases patient safety as it eliminates mis-connections through the use of an integrated proven assembly containing all connection points. This device features the SMC coupling platform with gold-plated brass electrical contacts, and it is perfect for use with pneumatic and low power applications. The Mini Hybrid Connector is available in a turnkey solution model, or can be customized to suit application specifications. 该装置增加了病人的安全,它消除了MIS系统的连接通过一个集成的验证组件包含所有连接点使用。该装置的特点SMC耦合平台与黄铜镀金电触点,它是完美的使用与气动和低功率应用。迷你混合连接器的交钥匙解决方案模型是可用的,或者可以定制以满足应用要求。
