Colder's LC Series chrome-plated brass couplings镀铬黄铜金属接头
CPC - Colder Products Company | Products | 通用连接器 | LC 系列金属快速接头资料下载
耐高温能力 额定温度可达204°C
CPC LC 系列快速接头镀铬黄铜接头结构坚固，可耐用于苛刻的应用环境。作为高温高压环境中的理想选择，LC系列特点为快速方便地进行单手接断操作。该系列接头产品可提供多种配置和端头的灵活选择，
且与PLC聚甲醛及PLC12聚丙烯系列接头均可配用。Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PLC acetal and PLC12 polypropylene couplings. Also available in NSF-listed versions.

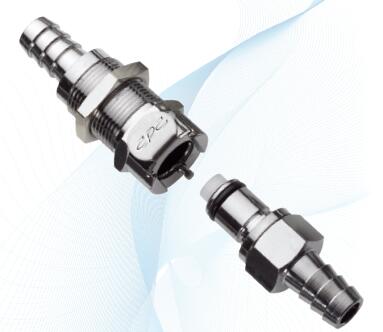

Colder's LC Series chrome-plated brass couplings
CPC LC 系列快速接头镀铬黄铜接头
功能与效益
特点优点
- 黄铜材料
- 耐用，能够承受较高的压力和温度
- 镀铬 漂亮的外观
- 耐高温能力 额定温度可达204°C
- 兼容性好
- 可与PLC系列配合使用
产品规格
- 压力:真空至 250 psi, 17.3 bar
- 温度: -40°C to 82°C
- 材料:
主要元件和阀:镀铬黄铜
指锁: 不锈钢
阀: 聚甲醛
阀簧: 316 不锈钢
外簧和销: 不锈钢
O型圈:
Buna-N丁腈橡胶
涂层:铬
管道尺寸: 1/4" to 3/8"〞内径， 6.4mm to 9.5mm〞内径
警告：压力、温度、化学品和工作环境可影响接头的性能。测试CPC产品是否适宜应用条件属于客户责任。
Cv值
Material:Polypropylene
Tubing Range:1/4"to 3/8" (6.4mm to 9.5mm)
Feature:Chemically resistant for corrosive applications
Cv ~ 1.40 (20.17) 大
Cv ~ 0.82 (11.82) 大
Cv ~ 0.51 (7.35) 大
Legend
产品Bodies
|
|
|
|
LC10004
1/4 NPT Non-Valved Coupling Body |
LC10004BSPT
1/4 BSPT Non-Valved Coupling Body |
LC10006
3/8 NPT Non-Valved Coupling Body |
LC10006BSPT
3/8 BSPT Non-Valved Coupling Body |
|
|
|
|
LC12004
1/4 PTF Non-Valved Panel Mount Coupling Body |
LC12006
3/8 PTF Non-Valved Panel Mount Coupling Body |
LC13004
1/4 PTF Non-Valved In-Line Coupling Body |
LC13006
3/8 PTF Non-Valved In-Line Coupling Body |
|
|
|
|
LC15004
1/4 NPT Non-Valved Panel Mount Coupling Body |
LC16004
1/4 Hose Barb Non-Valved Panel Mount Coupling Body |
LC16005
5/16 Hose Barb Non-Valved Panel Mount Coupling Body |
LC16006
3/8 Hose Barb Non-Valved Panel Mount Coupling Body |
|
|
|
|
LC17004
1/4 Hose Barb Non-Valved In-Line Coupling Body |
LC17005
5/16 Hose Barb Non-Valved In-Line Coupling Body |
LC17006
3/8 Hose Barb Non-Valved In-Line Coupling Body |
LCD10004
1/4 NPT Valved Coupling Body |
|
|
|
|
LCD10004BSPT
1/4 BSPT Valved Coupling Body |
LCD10006
3/8 NPT Valved Coupling Body |
LCD10006BSPT
3/8 BSPT Valved Coupling Body |
LCD12004
1/4 PTF Valved Panel Mount Coupling Body |
|
|
|
|
LCD12006
3/8 PTF Valved Panel Mount Coupling Body |
LCD13004
1/4 PTF Valved In-Line Coupling Body |
LCD13006
3/8 PTF Valved In-Line Coupling Body
|
LCD15004
1/4 NPT Valved Panel Mount Coupling Body |
|
|
|
|
LCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body |
LCD16005
5/16 Hose Barb Valved Panel Mount Coupling Body |
LCD16006
3/8 Hose Barb Valved Panel Mount Coupling Body |
LCD17004
1/4 Hose Barb Valved In-Line Coupling Body |
|
|
|
|
LCD17005
5/16 Hose Barb Valved In-Line Coupling Body |
LCD17006
3/8 Hose Barb Valved In-Line Coupling Body |
PLC300
Coupling Body Plug |
PLC310
Coupling Body Plug |
Inserts
|
|
|
|
LC20004
1/4 PTF Non-Valved In-Line Coupling Insert |
LC20006
3/8 PTF Non-Valved In-Line Coupling Insert
|
LC21004
1/4 PTF Non-Valved Elbow Coupling Insert |
LC21006
3/8 PTF Non-Valved Elbow Coupling Insert |
|
|
|
|
LC22004
1/4 Hose Barb Non-Valved In-Line Coupling Insert |
LC22005
5/16 Hose Barb Non-Valved In-Line Coupling Insert
|
LC22006
3/8 Hose Barb Non-Valved In-Line Coupling Insert |
LC23004
1/4 Hose Barb Non-Valved Elbow Coupling Insert |
LC10004
1/4 NPT Non-Valved Coupling Body
LC10004BSPT
1/4 BSPT Non-Valved Coupling Body
LC10006
3/8 NPT Non-Valved Coupling Body
LC10006BSPT
3/8 BSPT Non-Valved Coupling Body
LC12004
1/4 PTF Non-Valved Panel Mount Coupling Body
LC12006
3/8 PTF Non-Valved Panel Mount Coupling Body
LC13004
1/4 PTF Non-Valved In-Line Coupling Body
LC13006
3/8 PTF Non-Valved In-Line Coupling Body
LC15004
1/4 NPT Non-Valved Panel Mount Coupling Body
LC16004
1/4 Hose Barb Non-Valved Panel Mount Coupling Body
LC16005
5/16 Hose Barb Non-Valved Panel Mount Coupling Body
LC16006
3/8 Hose Barb Non-Valved Panel Mount Coupling Body
LC17004
1/4 Hose Barb Non-Valved In-Line Coupling Body
LC17005
5/16 Hose Barb Non-Valved In-Line Coupling Body
LC17006
3/8 Hose Barb Non-Valved In-Line Coupling Body
LCD10004
1/4 NPT Valved Coupling Body
LCD10004BSPT
1/4 BSPT Valved Coupling Body
LCD10006
3/8 NPT Valved Coupling Body
LCD10006BSPT
3/8 BSPT Valved Coupling Body
LCD12004
1/4 PTF Valved Panel Mount Coupling Body
LCD12006
3/8 PTF Valved Panel Mount Coupling Body
LCD13004
1/4 PTF Valved In-Line Coupling Body
LCD13006
3/8 PTF Valved In-Line Coupling Body
LCD15004
1/4 NPT Valved Panel Mount Coupling Body
LCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body
LCD16005
5/16 Hose Barb Valved Panel Mount Coupling Body
LCD16006
3/8 Hose Barb Valved Panel Mount Coupling Body
LCD17004
1/4 Hose Barb Valved In-Line Coupling Body
LCD17005
5/16 Hose Barb Valved In-Line Coupling Body
LCD17006
3/8 Hose Barb Valved In-Line Coupling Body
PLC300
Coupling Body Plug
PLC310
Coupling Body Plug
Inserts
LC20004
1/4 PTF Non-Valved In-Line Coupling Insert
LC20006
3/8 PTF Non-Valved In-Line Coupling Insert
LC21004
1/4 PTF Non-Valved Elbow Coupling Insert
LC21006
3/8 PTF Non-Valved Elbow Coupling Insert
LC22004
1/4 Hose Barb Non-Valved In-Line Coupling Insert
LC22005
5/16 Hose Barb Non-Valved In-Line Coupling Insert
LC22006
3/8 Hose Barb Non-Valved In-Line Coupling Insert
LC23004
1/4 Hose Barb Non-Valved Elbow Coupling Insert
|
