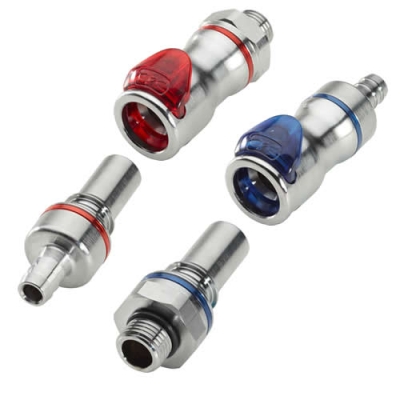

美国CPC LQ6系列液体冷却无泄漏快速接头
CPC LQ6 Series Couplings for liquid cooling applications
数据中心及计算机服务器液体冷却用高效快速插拔接头

LQ6系列快速接头

CPC LQ6系列接头特别为液体冷却应用设计,使用了已申请专利的阀门新技术,开创了这类专用接头先河。保证封闭的系统设计提供超可靠及无滴漏的连接,可反复连接和断开, 更能够承受长期使用。CPC 的速接头配备自动无泄漏截止阀和整体终端,保证安全﹑可靠和易于使用。 理想的液体冷却应用包括电子芯片制造和测试设备、服务器、pcg桌面游戏、数据中心、激光冷却,以及需要冷却的医疗设备,如MRI系统、电力系统、高端医疗设备。 Designed specifically for liquid cooling applications, the LQ6 Series Couplings are the first of their kind, utilizing new patent-pending liquid cooling valve technology. The guaranteed closed-system design provides ultra-reliable, dripless connections and disconnections able to withstand long-term, repeated use. Dripless quick disconnect couplings from CPC feature automatic non-spill shutoff valves and integral terminations for safety, ease-of-use and reliability. Ideal liquid cooling applications include electronics chip fabrication and test equipment, servers, PC/desktop gaming, data centers, laser cooling; and in medical devices that need to be cooled such as MRI systems, power systems, high-end medical machines.

CPC LQ6系列液体冷却无泄漏快速接头
CPC LQ6 Series Couplings for liquid cooling applications

CPC Liquid cooling for electronic QDs from CPC get even cooler Video


功能与效益

无溢漏设计 无溢漏的液体冷却用连接器保证安全﹑可靠﹑无滴漏的连接。
在压力下断开也无溢漏
连接后提供冗余的密封额外防止泄漏
彩色编码为冷却管路提供即时视觉上的辨别
在连接状态下密封圈没有摩擦
即使长时间处于连接状态,但在断开连接后不会有滴漏发生,安全可靠
坚固耐用
能经受长期﹑反复的使用
旋转允许管道移动
消除管道扭结

产品规格

压力: 真空至8.3 巴
温度: -17 °C至115°C
Maximum Flow at Disconnect: 15.1升/每分钟

材料
主外壳组件镀铬铜
阀门和拇指按锁聚砜
阀门弹簧(润湿)302不锈钢
外部弹簧302不锈钢
密封圈三元乙丙橡胶

颜色
镀铬铜配冷色调蓝或暖色调红

管道尺寸
3/8" 至 1/2" 管内径, 9.5mm 至 12.7mm管内径

润滑油
Krytox? PFPE

溢出
在0 psi 的压力下,断开连接后少于0.05毫升
在120 psi 的压力下,断开连接后少于0.125毫升

夹杂空气
每次连接少于0.42毫升

警告:压力、温度、化学品和工作环境可影响接头的性能。测试Colder产品是否适宜其应用环境属于客户责任。

Cv值


Cv ~ 2.2 (33.2) max Cv ~ 2.2 (33.2) 最大

图例

直通式 单侧关断 双侧关断 无溢漏

Cv值是以每分钟加仑及 psi显示, 至于括号中则显示每分钟公升及巴

产品Bodies母头

LQ6D10006BLU

3/8 NPT Valved Liquid Cooling Coupling Body, Cool Blue

LQ6D10006RED

3/8 NPT Valved Liquid Cooling Coupling Body, Warm Red

LQ6D13008BLU

3/8 ID x 1/2 OD PTF Valved Liquid Cooling Coupling Body, Cool Blue

LQ6D13008RED

3/8 ID x 1/2 OD PTF Valved In-Line Liquid Cooling Coupling Body, Warm Red

LQ6D17006BLU

3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue

LQ6D17006RED

3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red

LQ6D17008BLU

1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue

LQ6D17008RED

1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red

LQ6D30006BLU

3/8 SAE Valved Liquid Cooling Coupling Body, Cool Blue

LQ6D30006RED

3/8 SAE Valved Liquid Cooling Coupling Body, Warm Red

LQ6D30008BLU

1/2 SAE Valved Liquid Cooling Coupling Body, Cool Blue

LQ6D30008RED

1/2 SAE Valved Liquid Cooling Coupling Body, Warm Red

Inserts公头

LQ6D20008BLU

3/8 ID x 1/2 OD PTF Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

LQ6D20008RED

3/8 ID x 1/2 OD PTF Valved In-Line Liquid Cooling Coupling Insert, Warm Red

LQ6D22006BLU

3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

LQ6D22006RED

3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red

LQ6D22008BLU

1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue

LQ6D22008RED

1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red

LQ6D24006BLU

3/8 NPT Valved Liquid Cooling Coupling Insert, Cool Blue

LQ6D24006RED

3/8 NPT Valved Liquid Cooling Coupling Insert, Warm Red

LQ6D46006BLU

3/8 SAE Valved Liquid Cooling Coupling Insert, Cool Blue

LQ6D46006RED

3/8 SAE Valved Liquid Cooling Coupling Insert, Warm Red

LQ6D46008BLU

1/2 SAE Valved Liquid Cooling Coupling Insert, Cool Blue

LQ6D46008RED

1/2 SAE Valved Liquid Cooling Coupling Insert, Warm Red
