CPC Colder Products Company接头 MC系列镀铬黄铜快速接头 - 经久耐用，可耐受高温高压，方便进行单手连接和断开
MC Series chrome-plated brass couplings Catalog

详细信息 ：

Colder公司MC系列镀铬黄铜接头结构坚固，可耐用于苛刻的应用环境。作为高温高压环境中的理想选择，MC系列特点为快速方便地进行单手接断操作。该系列接头产品可提供多种外形结构和端头的灵活选择，且与PMC聚甲醛及PMC12聚丙烯系列接头均可配用。CPC MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperatures or pressures, MC Series couplings feature one-hand operation for swift and easy connects and disconnects.These couplings offer the flexibility of multiple configurations and terminations and mate with both PMC acetal and PMC12 polypropylene couplings. Also available in NSF-listed versions.

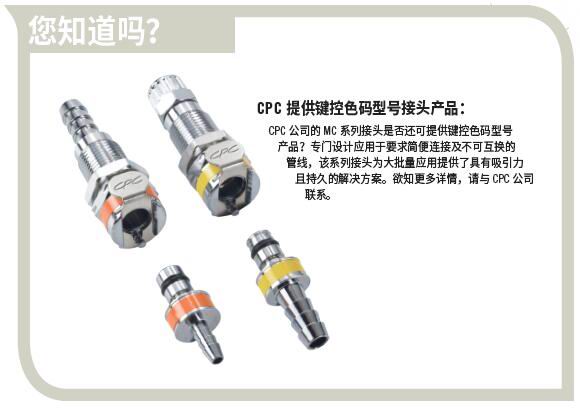

CPC MC Series chrome-plated brass couplings
CPC MC系列镀铬黄铜接头

特点 优点

铜材
耐高温能力
Colder指锁
兼容性好
结构持久耐用，可耐受高温和高压 经久耐用，可耐受高温高压，方便进行单手连接和断开。
该型号产品额定温度可达 400°F（204°C）
可单手连接和断开
MC可与PMC和PMC12系列接头配用

规格
压力：真空至250psi，17.3bar
温度： -40°F至180°F（-40°C至82°C）（还可提供额定温度达400°F的高温型）
材料：
主要元件：
镀铬黄铜
指锁按钮：不锈钢
阀：聚甲醛
阀簧：316不锈钢
外簧和销：不锈钢
O型圈：Buna-N丁晴橡胶
涂层：铬

管道尺寸： 1/8"至1/4"内径，3.2mm至6.4mm内径
警告：压力、温度、化学品和工作环境可影响接头的性能。测试Colder产品是否适宜其应用环境属于客户责任。

- MC接头，CPC接头，COLEDR接头

MC1002 1/8 NPT Non-Valved Coupling Body	MC1002BSPT 1/8 BSPT Non-Valved Coupling Body	MC1004 1/4 NPT Non-Valved Coupling Body	MC1004BSPT 1/4 BSPT Non-Valved Coupling Body
MC12025 5/32 PTF Non-Valved Panel Mount Coupling Body	MC1204 1/4 PTF Non-Valved Panel Mount Coupling Body	MC1304 1/4 PTF Non-Valved In-Line Coupling Body	MC1502 1/8 NPT Non-Valved Panel Mount Coupling Body
MC1602 1/8 Hose Barb Non-Valved Panel Mount Coupling Body	MC1603 3/16 Hose Barb Non-Valved Panel Mount Coupling Body	MC1604 1/4 Hose Barb Non-Valved Panel Mount Coupling Body	MC1702 1/8 Hose Barb Non-Valved In-Line Coupling Body
MC1703 3/16 Hose Barb Non-Valved In-Line Coupling Body	MC1704 1/4 Hose Barb Non-Valved In-Line Coupling Body	MC181032 10-32 Non-Valved Panel Mount Coupling Body	MCD1002 1/8 NPT Valved Coupling Body
MCD1002BSPT 1/8 BSPT Valved Coupling Body	MCD1004 1/4 NPT Valved Coupling Body	MCD1004BSPT 1/4 BSPT Valved Coupling Body	MCD12025 5/32 PTF Valved Panel Mount Coupling Body
MCD1304 1/4 PTF Valved In-Line Coupling Body	MCD1502 1/8 NPT Valved Panel Mount Coupling Body	MCD1602 1/8 Hose Barb Valved Panel Mount Body	MCD1603 3/16 Hose Barb Valved Panel Mount Coupling Body
MCD1604 1/4 Hose Barb Valved Panel Mount Body	MCD1702 1/8 Hose Barb Valved In-Line Coupling Body	MCD1703 3/16 Hose Barb Valved In-Line Coupling Body	MCD1704 1/4 Hose Barb Valved In-Line Coupling Body
MCD181032 10-32 Valved Panel Mount Coupling Body	PMC31 Coupling Body Plug	MCD1204 1/4 PTF Valved Panel Mount Coupling Body

Inserts

DSM2202 1/8 Hose Barb Non-Valved Nu-Seal Coupling Insert	MC20025 5/32 PTF Non-Valved In-Line Coupling Insert	MC2004 1/4 PTF Non-Valved In-Line Coupling Insert	MC2006 3/8 PTF Non-Valved In-Line Coupling Insert
MC21025 5/32 PTF Non-Valved Elbow Coupling Insert	MC2104 1/4 PTF Non-Valved Elbow Coupling Insert	MC2202 1/8 Hose Barb Non-Valved In-Line Coupling Insert	MC2203 3/16 Hose Barb Non-Valved In-Line Coupling Insert
MC2204 1/4 Hose Barb Non-Valved In-Line Coupling Insert	MC2302 1/8 Hose Barb Non-Valved Elbow Coupling Insert	MC2304 1/4 Hose Barb Non-Valved Elbow Coupling Insert	MC2402 1/8 NPT Non-Valved Coupling Insert
MC2402BSPT 1/8 BSPT Non-Valved Coupling Insert	MC2404 1/4 NPT Non-Valved Coupling Insert	MC2602 1/8 NPT Non-Valved Coupling Insert	MC2604 1/4 NPT Non-Valved Coupling Insert
MC2604BSPP 1/4 BSPP Non-Valved Coupling Insert	MC281032 10-32 Non-Valved Coupling Insert	MC4004 1/4 PTF Non-Valved Panel Mount Coupling Insert	MC4202 1/8 Hose Barb Non-Valved Panel Mount Coupling Insert
MC4203 3/16 Hose Barb Non-Valved Panel Mount Coupling Insert	MC4204 1/4 Hose Barb Non-Valved Panel Mount Coupling Insert	MCD20025 5/32 PTF Valved Coupling Insert	MCD2004 1/4 PTF Valved Coupling Insert
MCD2006 3/8 PTF Valved In-Line Coupling Insert	MCD21025 5/32 PTF Valved Elbow Coupling Insert	MCD2104 1/4 PTF Valved Elbow Coupling Insert	MCD2202 1/8 Hose Barb Valved Coupling Insert
MCD2203 3/16 Hose Barb Valved In-Line Coupling Insert	MCD2204 1/4 Hose Barb Valved Coupling Insert	MCD2302 1/8 Hose Barb Valved Elbow Coupling Insert	MCD2304 1/4 Hose Barb Valved Elbow Coupling Insert
MCD2402 1/8 NPT Valved Coupling Insert	MCD2402BSPT 1/8 BSPT Valved Coupling Insert	MCD2404 1/4 NPT Valved Coupling Insert	MCD2602 1/8 NPT Valved Coupling Insert
MCD2604 1/4 NPT Valved Coupling Insert	MCD2604BSPP 1/4 BSPP Valved Coupling Insert	MCD281032 10-32 Valved Coupling Insert	MCD4004 1/4 PTF Valved Panel Mount Coupling Insert
MCD4202 1/8 Hose Barb Valved Panel Mount Coupling Insert	MCD4203 3/16 Hose Barb Valved Panel Mount Coupling Insert	MCD4204 1/4 Hose Barb Valved Panel Mount Coupling Insert	PMC32 Coupling Insert Cap
100900 Panel Nut (MC)	100901 Panel Nut (MC)	3520800 Panel Nut (MC, Polypropylene)	664400 Panel Nut (MC, Acetal)
