智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster



CPC - Colder Products Company | Products | 通用连接器 | PLC12 系列聚丙烯材料快速接头

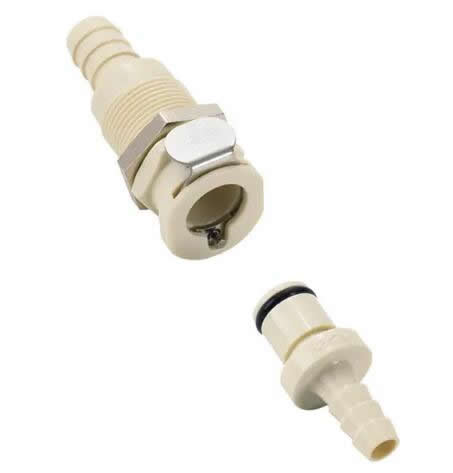

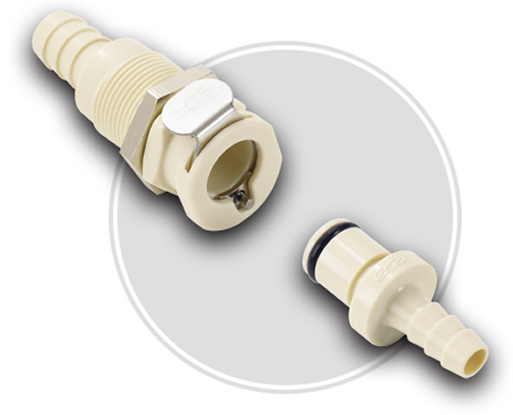

CPC PLC12 series plastic quick disconnect couplings

聚丙烯材料耐化学腐蚀,可经伽玛射线消毒接头

1/4〞流量聚丙烯PLC12提供了许多与PLC相同配置的选项。为适用于要求更苛刻的应用条件,聚丙烯材料增加了产品的抗化学性。PLC12系列接头可经伽玛射线灭菌。 CPC的塑料快速断开接头涵盖了广泛的通用应用。它们提供 1/8“ 至 1/2” 标称流量,具有单手连接和断开功能。整体端接使塑料联轴器成为易于使用和制造的选择。PLC12 系列接头提供支持 RFID 的功能IdentiQuik科技。基于 RFID 的 IdentiQuik 接头重新定义了控制、保护和简化流体处理过程的可能性。IdentiQuik技术允许流体和信息的可靠传输,以识别设备类型或连接的介质,验证线路连接的准确性或捕获流体和产品数据。CPC's plastic quick disconnect couplings cover a wide range of general purpose applications. Available in 1/8" to 1/2" nominal flow, they feature one-hand connection and disconnection. Integral terminations make the plastic coupling the choice for ease of use and manufacture. PLC12 series couplings are available with RFID-enabled IdentiQuik technology. RFID-based IdentiQuik couplings redefine what's possible for controlling, protecting and streamlining fluid handling processes. IdentiQuik technology allows the robust transfer of fluid and information to identify device type or connected media, verify line connection accuracy or capture fluid and product data.

CPC - Colder Products Company | Products | 通用连接器 | PLC12 系列聚丙烯材料快速接头

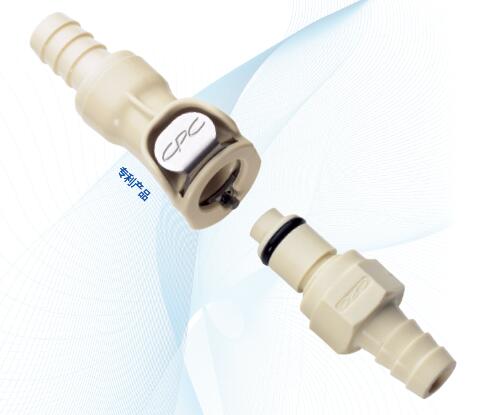

CPC PLC12 series plastic quick disconnect couplings



功能与效益 特点 优点

聚丙烯材料耐化学腐蚀,可经伽玛射线消毒
三元乙丙橡胶O型圈耐化学性强
CPC指锁单手连接和断开
整体端头
漏点少,装配时间短,安装快捷
聚丙烯
三元乙丙橡胶O型圈
较冷释放按钮
集成连接器
耐化学腐蚀,可使用伽马射线灭菌
具有更高的耐化学性
单手连接和断开连接
无泄漏,安装长度更短,安装速度更快

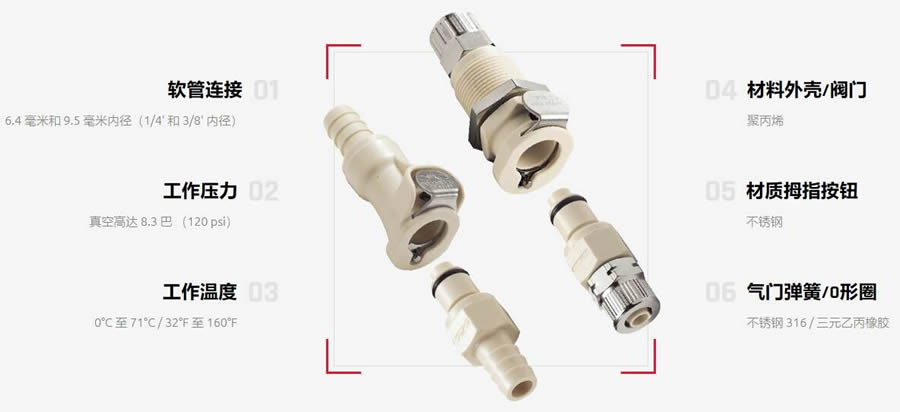

操作条件(流体输送)
压力: 真空至 120 psi,8.3 巴
温度: 32°F 至 160°F 连续,-0°C 至 71°C 连续
材料
主要部件及阀门: 聚丙烯
拇指闩锁: 不锈钢
气门弹簧: 316 不锈钢
外部弹簧和销: 不锈钢
O型圈: 三元乙丙橡胶
其他
颜色: 杏仁
油管范围: 1/4“ 至 3/8”, 6.4mm 至 9.5mm
识别奎克规格
射频通信范围: 约1”
接口: RS232 和 USB
工作电压: RS-232: 8-24V
USB:5V
功耗: 最大 1.2W
无线射频识别标签: ISO 15693,13.56MHz,112字节可编程
温度: 32oF 至 150oF (0oC 至 65oC)
简历值
Cv ~ 1.40 (20.17) 最大值
Cv ~ 0.82 (11.82) 最大值
Cv ~ 0.51 (7.35) 最大值
Cv 值基于 gpm 和 psi,以及 Ipm 和 bar(显示在括号中)。

警告:压力、温度、化学品和工作环境可影响接头的 性能。测试CPC产品是否适宜应用条件属于客户责 任。请按右图指示。



PLC12 快速接头应用可能包括:

电池填充设备
消毒剂
喷墨打印
化学计量泵、制药和半导体化学加工



PLC12 快速接头系列涵盖了广泛的标准应用。它们有 1/8“ 和 1/2” 标称直径可供选择。单手连接和断开以及内置连接 - 您易于操作和安装的首选。 Colder的塑料接头涵盖了广泛的通用型 应用。提供从 1/8“ 到 1/2".单手连接和断开以及集成端接 使塑料联轴器成为易于使用和制造的选择。1/4“ 流动聚丙烯 PLC12 提供许多与 PLC 相同的配置选项。聚丙烯材料为更苛刻的应用增加了更高的耐化学性。PLC12 接头也可进行伽马灭菌。

Products Bodies

PLC1000412
1/4 NPT Non-Valved Coupling Body
PLC1000412BSPT
1/4 MBSPT Non-Valved Coupling Body
PLC1000612
3/8 MNPT Non-Valved Coupling Body
PLC1000612BSPT
3/8 MBSPT Non-Valved Coupling Body
PLC1200612
3/8 PTF Non-Valved Panel Mount Coupling Body
PLC1300612
3/8 PTF Non-Valved In-Line Coupling Body
PLC1600412
1/4 Hose Barb Non-Valved Panel Mount Coupling Body
PLC1600612
3/8 Hose Barb Non-Valved Panel Mount Coupling Body
PLC1700412
1/4 Hose Barb Non-Valved In-Line Coupling Body
PLC1700612
3/8 Hose Barb Non-Valved In-Line Coupling Body
PLCD1000412
1/4 NPT Valved Coupling Body
PLCD1000412BSPT
1/4 MBSPT Valved Coupling Body
PLCD1000612
3/8 NPT Valved Coupling Body
PLCD1000612BSPT
3/8 MBSPT Valved Coupling Body
PLCD1200612
3/8 PTF Valved Panel Mount Coupling Body
PLCD1300612
3/8 PTF Valved In-Line Coupling Body
PLCD1600412
1/4 Hose Barb Valved Panel Mount Coupling Body
PLCD1600612
3/8 Hose Barb Valved Panel Mount Coupling Body
PLCD1700412
1/4 Hose Barb Valved In-Line Coupling Body
PLCD1700612
3/8 Hose Barb Valved In-Line Coupling Body

PLCD17040612
1/4 Softube Valved In-Line Coupling Body
PLCD17060812
3/8 Softube Valved In-Line Coupling Body




Inserts

IPLCDT2200400
1/4 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID
IPLCDT2200600
3/8 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID
IPLCDT2300400
1/4 Hose Barb Valved Elbow IdentiQuik Coupling Insert with RFID
IPLCDT2300600
3/8 Hose Barb Valved Elbow IdentiQuik Coupling Insert with RFID
IPLCT2200400
1/4 Hose Barb Non-Valved IdentiQuik Coupling Insert with RFID
IPLCT2200600
3/8 Hose Barb Non-Valved IdentiQuik Coupling Insert with RFID
IPLCT2300400
1/4 Hose Barb Non-Valved Elbow IdentiQuik Coupling Insert with RFID
IPLCT2300600
3/8 Hose Barb Non-Valved Elbow IdentiQuik Coupling Insert with RFID
PLC2000612
3/8 PTF Non-Valved In-Line Coupling Insert
PLC2100612
3/8 PTF Non-Valved Elbow Coupling Insert
PLC2200412
1/4 Hose Barb Non-Valved In-Line Coupling Insert
PLC2200612
3/8 Hose Barb Non-Valved In-Line Coupling Insert
PLC2300412
1/4 Hose Barb Non-Valved Elbow Coupling Insert
PLC2300612
3/8 Hose Barb Non-Valved Elbow Coupling Insert
PLC2400412
1/4 NPT Non-Valved Coupling Insert
PLC4200412
1/4 Hose Barb Non-Valved Panel Mount Coupling Insert
PLC4200612
3/8 Hose Barb Non-Valved Panel Mount Coupling Insert
PLCD2000612
3/8 PTF Valved In-Line Coupling Insert
PLCD200M812
8mm PTF Valved In-Line Coupling Insert
PLCD2100612
3/8 PTF Valved Elbow Coupling Insert
PLCD2200412
1/4 Hose Barb Valved In-Line Coupling Insert
PLCD2200612
3/8 Hose Barb Valved In-Line Coupling Insert
PLCD22040612
1/4 SofTube Valved Coupling Insert
PLCD22060812
3/8 SofTube Valved Coupling Insert
PLCD2300412
1/4 Hose Barb Valved Elbow Coupling Insert
PLCD2300612
3/8 Hose Barb Valved Elbow Coupling Insert
PLCD2400412
1/4 NPT Valved Coupling Insert
PLCD4200412
1/4 Hose Barb Valved Panel Mount Coupling Insert

PLCD4200612
3/8 Hose Barb Valved Panel Mount Coupling Insert
3545600
Panel Nut (LC, Polypropylene)
520300
Panel Nut (LC, Acetal)




PLC12 series couplings are available with RFID-enabled IdentiQuik? technology. RFID-based IdentiQuik couplings

IPLCDR1700400
1/4 Hose Barb Valved In-Line IdentiQuik Coupling Reader with RFID, RS-232
IPLCDR1700401
1/4 Hose Barb Valved In-Line IdentiQuik Coupling Reader with RFID, USB
IPLCDR1700600
3/8 Hose Barb Valved In-Line IdentiQuik Coupling Reader with RFID, RS232
IPLCDR1700601
3/8 Hose Barb Valved In-Line IdentiQuik Coupling Reader with RFID, USB



材质:聚丙烯
管道尺寸:1/4"to 3/8" (6.4mm to 9.5mm)
产品特点:适用于耐化学腐蚀性的应用
Cv ~ 1.40 (20.17) 大

Cv ~ 0.82 (11.82) 大

Cv ~ 0.51 (7.35) 大

Legend

产品

Bodies

PLC1000412

1/4 NPT Non-Valved Coupling Body


PLC1000412BSPT

1/4 MBSPT Non-Valved Coupling Body


PLC1000612

3/8 MNPT Non-Valved Coupling Body


PLC1000612BSPT

3/8 MBSPT Non-Valved Coupling Body


PLC1200612

3/8 PTF Non-Valved Panel Mount Coupling Body


PLC1300612

3/8 PTF Non-Valved In-Line Coupling Body


PLC1600412

1/4 Hose Barb Non-Valved Panel Mount Coupling Body


PLC1600612

3/8 Hose Barb Non-Valved Panel Mount Coupling Body


PLC1700412

1/4 Hose Barb Non-Valved In-Line Coupling Body


PLC1700612

3/8 Hose Barb Non-Valved In-Line Coupling Body


PLCD1000412

1/4 NPT Valved Coupling Body


PLCD1000412BSPT

1/4 MBSPT Valved Coupling Body


PLCD1000612

3/8 NPT Valved Coupling Body


PLCD1000612BSPT

3/8 MBSPT Valved Coupling Body


PLCD1200612

3/8 PTF Valved Panel Mount Coupling Body


PLCD1300612

3/8 PTF Valved In-Line Coupling Body


PLCD1600412

1/4 Hose Barb Valved Panel Mount Coupling Body


PLCD1600612

3/8 Hose Barb Valved Panel Mount Coupling Body


PLCD1700412

1/4 Hose Barb Valved In-Line Coupling Body


PLCD1700612

3/8 Hose Barb Valved In-Line Coupling Body


PLCD17040612

1/4 Softube Valved In-Line Coupling Body


PLCD17060812

3/8 Softube Valved In-Line Coupling Body

Inserts

IPLCDT2200400

1/4 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID, RS-232


IPLCDT2200600

3/8 Hose Barb Valved In-Line IdentiQuik Coupling Insert with RFID, RS-232


IPLCDT2300400

1/4 Hose Barb Valved Elbow IdentiQuik Coupling Insert with RFID, RS-232


IPLCDT2300600

3/8 Hose Barb Valved Elbow IdentiQuik Coupling Insert with RFID, RS-232


IPLCT2200400

1/4 Hose Barb Non-Valved IdentiQuik Coupling Insert with RFID, RS-232


IPLCT2200600

3/8 Hose Barb Non-Valved IdentiQuik Coupling Insert with RFID, RS-232


IPLCT2300400

1/4 Hose Barb Non-Valved Elbow IdentiQuik Coupling Insert with RFID, RS-232


IPLCT2300600

3/8 Hose Barb Non-Valved Elbow IdentiQuik Coupling Insert with RFID, RS-232


PLC2000612

3/8 PTF Non-Valved In-Line Coupling Insert


PLC2100612

3/8 PTF Non-Valved Elbow Coupling Insert


PLC2200412

1/4 Hose Barb Non-Valved In-Line Coupling Insert


PLC2200612

3/8 Hose Barb Non-Valved In-Line Coupling Insert


PLC2300412

1/4 Hose Barb Non-Valved Elbow Coupling Insert


PLC2300612

3/8 Hose Barb Non-Valved Elbow Coupling Insert


PLC2400412

1/4 NPT Non-Valved Coupling Insert


PLC4200412

1/4 Hose Barb Non-Valved Panel Mount Coupling Insert


PLC4200612

3/8 Hose Barb Non-Valved Panel Mount Coupling Insert


PLCD2000612

3/8 PTF Valved In-Line Coupling Insert
