智能流体处理产品带您走得更远更快
Smart fluid handling to take you forward,faster



CPC PMC12系列聚丙烯快速接头Polypropylene Plastic Connectors
CPC PMC12 Series polypropylene couplings
CPC PMC12 plastic quick disconnect couplings

详细信息 :

1/8"流量聚丙烯PMC12提供了许多与PMC相同配置的选项。聚丙烯材料增加了抗化学性,可经伽玛射线灭菌。PMC12还可以与小径刚性管配用。可提供的类型有1/4-28底端平口式和1/4-28UNF螺纹式,在每次进行管连接时,这种接头消除了普通压紧螺母需要的频繁旋钮操作。CPC PMC12 Series polypropylene couplings have a 1/8" flow are used in a wide variety of general-purpose applications. These quick disconnect couplings offer many of the same configuration options as acetal PMC couplings but the polypropylene material adds greater chemical resistance for more demanding applications. PMC12 couplings are also gamma sterilizable. Patented and patent pending. These couplings offer the flexibility of multiple configurations and terminations and mate with both PMC acetal and LC metal couplings.



CPC PMC12系列聚丙烯快速接头Polypropylene Plastic Connectors
CPC PMC12 Series polypropylene couplings

特点

聚丙烯材料
EPDMO型圈
Colder指锁
整体端头

优点

耐受化学品,可经伽玛射线灭菌
抗化学能力强
可单手连接和断开
漏点少,装配短,安装快捷

规格
压力:真空至120psi,8.3bar
温度: 32°F至160°F(0°C至71°C)
材料: 主要元件和阀:聚丙烯
指锁按钮:不锈钢
阀簧:316不锈钢
外簧和销:不锈钢
O型圈:EPDM

灭菌: 伽玛射线:最高辐射量为50kGy
颜色:杏仁色
管道尺寸:
微孔至1/4"内径,微孔至6.4mm内径

警告:压力、温度、化学品和工作环境可影响接头的性能。测试Colder产品是否适宜其应用环境属于客户责任。

PMC12接头,CPC接头,美国CPC



PMC100212

1/8 NPT Non-Valved Coupling Body

PMC100212BSPT

1/8 MBSPT Non-Valved Coupling Body

PMC100412

1/4 MNPT Non-Valved Coupling Body

PMC100412BSPT

1/4 MBSPT Non-Valved Coupling Body

PMC120412

1/4 PTF Non-Valved Panel Mount Coupling Body

PMC130412

1/4 PTF Non-Valved In-Line Coupling Body

PMC160112

1/16 Hose Barb Non-Valved Panel Mount Coupling Body

PMC160212

1/8 Hose Barb Non-Valved Panel Mount Coupling Body

PMC160412

1/4 Hose Barb Non-Valved Panel Mount Coupling Body


PMC170112

1/16 Hose Barb Non-Valved In-Line Coupling Body

PMC170212

1/8 Hose Barb Non-Valved In-Line Coupling Body

PMC170412

1/4 Hose Barb Non-Valved In-Line Coupling Body

PMCD100212

1/8 NPT Valved Coupling Body

PMCD100212BSPT

1/8 MBSPT Valved Coupling Body

PMCD100412

1/4 NPT Valved Coupling Body

PMCD100412BSPT

1/4 MBSPT Valved Coupling Body

PMCD120412

1/4 PTF Valved Panel Mount Coupling Body

PMCD130412

1/4 PTF Valved In-Line Coupling Body

PMCD160112

1/16 Hose Barb Valved Panel Mount Coupling Body

PMCD160212

1/8 Hose Barb Valved Panel Mount Coupling Body

PMCD160412

1/4 Hose Barb Valved Panel Mount Coupling Body

PMCD170112

1/16 Hose Barb Valved In-Line Coupling Body

PMCD170212

1/8 Hose Barb Valved In-Line Coupling Body

PMCD170412

1/4 Hose Barb Valved In-Line Coupling Body


PMCD18042812

1/4 -28 Flat Bottom Port Valved Panel Mount Coupling Body

PMCD19042812

1/4 -28 Flat Bottom Port Valved In-Line Coupling Body





Inserts

DSM2202

1/8 Hose Barb Non-Valved Nu-Seal Coupling Insert

PMC200412

1/4 PTF Non-Valved Coupling Insert

PMC210412

1/4 PTF Non-Valved Elbow Coupling Insert

PMC220112

1/16 Hose Barb Non-Valved In-Line Coupling Insert

PMC220212

1/8 Hose Barb Non-Valved In-Line Coupling Insert

PMC220412

1/4 Hose Barb Non-Valved In-Line Coupling Insert

PMC230212

1/8 Hose Barb Non-Valved Elbow Coupling Insert

PMC230412

1/4 Hose Barb Non-Valved Elbow Coupling Insert

PMC240212

1/8 NPT Non-Valved Coupling Insert

PMC24042812

1/4-28 Flat Bottom Port Non-Valved In-Line Coupling Insert

PMC24082012

5/16 SAE-5 Non-Valved In-Line Coupling Insert

PMC400412

1/4" Ferruleless Polytube Fitting, PTF Non-Valved Panel Mount Coupling Insert

PMC420112

1/16" Hose Barb Non-Valved Panel Mount Coupling Insert

PMC420212

1/8" Hose Barb Non-Valved Panel Mount Coupling Insert

PMC420412
1/4" Hose Barb Non-Valved Panel Mount Coupling Insert
PMCD200412
1/4 PTF Valved In-Line Coupling Insert
PMCD2102512
5/32 PTF Valved Elbow Coupling Insert
PMCD210412
1/4 PTF Valved Elbow Coupling Insert
PMCD220112
1/16 Hose Barb Valved In-Line Coupling Insert
PMCD220212
1/8 Hose Barb Valved In-Line Coupling Insert
PMCD220412
1/4 Hose Barb Valved In-Line Coupling Insert
PMCD230212
1/8 Hose Barb Valved Elbow Coupling Insert
PMCD230412
1/4 Hose Barb Valved Elbow Coupling Insert
PMCD240212
1/8 NPT Valved Coupling Insert
PMCD24042812
1/4 -28 Flat Bottom Port Valved In-Line Coupling Insert
PMCD24082012
5/16 SAE-5 Valved In-Line Coupling Insert
PMCD400412
1/4" Ferruleless Polytube Fitting, PTF Valved Panel Mount Coupling Insert
PMCD420112
1/16" Hose Barb Valved Panel Mount Coupling Insert
PMCD420212
1/8" Hose Barb Valved Panel Mount Coupling Insert
PMCD420412
1/4" Hose Barb Valved Panel Mount Coupling Insert
PMCD48042812
1/4 -28 Flat Bottom Port Valved Panel Mount Coupling Insert
100900
Panel Nut (MC)

100901
Panel Nut (MC)
3520800
Panel Nut (MC, Polypropylene)
664400
Panel Nut (MC, Acetal)
2418900
1/4-28 Nut, 1/16 Tubing (PMC 12)

2419000
1/4-28 Nut, 1/8 Tubing (PMC 12)
2419199
1/4-28 Nut, 1/16 Tubing (PMC 12)
2419299
1/4-28 Nut, 1/8 Tubing (PMC 12)






CPC offers more options for its polypropylene plastic connectors
CPC为其聚丙烯塑料连接器提供了更多的选择

CPC offers more options for its polypropylene plastic connectors
Posted by Mary Gannon on Friday, February 13, 2015


(Colder Products Co.), St. Paul, Minn., announces the further expansion of its PMC12 series quick disconnect couplings with options to simplify connections for plastic manifolds. With the new SAE straight thread port options, OEMs can now easily incorporate quick disconnect couplings into their plastic manifolds applications.

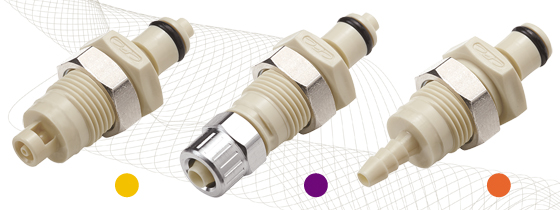

PMC12 plastic quick disconnect couplings

“The mounting style of the new PMC12 SAE straight thread ports offers several advantages over pipe threads including a quicker and more repeatable installation, and eliminates the need for thread tape or sealant,” says Grant Wilhelm, senior design engineer for medical markets at CPC. “SAE straight threads feature a more consistent mounting depth because the threads are not tapered and a robust o-ring on the straight thread that provides a secure seal.”

The new polypropylene PMC12 with SAE straight thread ports are perfect for threading couplings into acrylic manifolds that can easily be cracked if excessive force is used when sealing the couplings to the manifold. The SAE straight thread ports eliminate the need for a thread sealant, which is typically required for NPT pipe threads, thus making SAE straight thread ports a cleaner solution.

New PMC12 plastic quick disconnect couplings with SAE straight thread ports are ideal for applications within In Vitro Diagnostics (IVD) including reagent handling systems, and in printing and ink handling industries.



CPC再次扩展聚丙烯塑料快速插拔接头系列
CPC PMC12系列体外诊断、印刷和油墨处理行业理想选择
耐化学性,PMC12系列及其面板安装嵌件是用聚丙烯制造的,还可用伽马射线消毒

核心提示:塑料管道快速插拔接头和普通接头的领先供应商CPC将于4月17日至20日在上海举行的中国国际医疗器械博览会上推出其新的面板安装型PMC12系列。PMC12系列产品CPC的PMC12系列阵容扩大,便于原始设备制造商将灵活的管道连接方式直接集成到其设备或器械中。为了提高耐化学性,PMC12系列及其面板安装嵌件是用聚丙烯制造的,还可用伽马射线消毒。


塑料管道快速插拔接头和普通接头的领先供应商CPC将于4月17日至20日在上海举行的中国国际医疗器械博览会上推出其新的面板安装型PMC12系列。


PMC12系列产品


CPC的PMC12系列阵容扩大,便于原始设备制造商将灵活的管道连接方式直接集成到其设备或器械中。为了提高耐化学性,PMC12系列及其面板安装嵌件是用聚丙烯制造的,还可用伽马射线消毒。


CPC亚太区销售总监陈志聪Ernest Chan表示:“新的面板安装型PMC12快速插拔接头提供各种-端头,包括软管倒钩和--PTF 快拧式。PMC12系列备有带阀门和不带阀门配置,--可满足客户的独特流体处理需求。面板安装-端头可靠地安装在器械或设备内部的管道中,因此可以方便地连接到外管套件。”

医疗设备的小型化要求在体外诊断应用中能将小量缓冲溶液和试剂精确地分配。CPC的面板安装型PMC12塑料快速插拔接头不但能和强度高的酸和溶剂保持兼容性,而且小巧紧凑,因此是用于体外诊断的理想选择。

此外,这系列的接头也可以用于印刷和油墨处理行业
