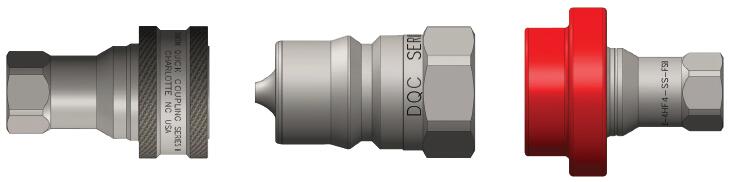

Dixon H Series Hydraulic Couplings H系列液压快速接头技术选型资料下载
Dixon Quick Couplings H SERIES Hydraulic Couplings PDF Catalog
尺寸: 1/8” 至 2 1/2”
材质: 钢，铜 303 & 316 不锈钢
Standards: ISO 7241 Series ‘B’
标准
ISO 7241 系列 ‘B’
ANSI B93.113M-B
互换Interchange
Parker 60 series, Aeroquip/Eaton FD45, Tema IB series, Snap-Tite 72 series, Faster
HNV series, Hansen HK series Parker 60 系列, Aeroquip/Eaton FD45, Tema IB 系列, Snap-Tite 72 系列, Faster HNV 系列, Hansen HK 系列
Markets & Uses
市场&应用
- 石油平台(液压供给管线，夹钳和液压回路) Oil platforms (Hydraulic supply lines, tongs and hydraulic circuits)
Construction equipment (IT vehicle attachments, hand tools)
- 建筑施工设备(IT车辆配件，手持工具)
- 运输 (自倾车辆, 除雪车，一般工业拖车)Industrial (Pneumatic tools, hydraulic tools, directional drilling, carpet cleaning)
- 工业 (气动工具，液压工具，定向钻孔，地毯清洁)
特点:
钢制部件使用符合ROHS标准的三价铬进行电镀处理 Steel componentry is plated using ROHS Compliant Trivalent Chrome
Replacement seal kits
可替换密封套件
Optional elastomer or aluminium dust plugs & caps
可选配ElastomerTM或铝制防尘堵盖或防尘帽
Nitrile (Buna-N) seals standard providing a temperature range of -60°C to +121°C
丁腈橡胶 密封件标准温度范围为-60°C 至 +121°C
Stainless steel balls maximise corrosion resistance
不锈钢滚珠经最大限度防锈处理
Steel coupler sleeves hardened to resist deformation
钢制接头经硬化处理以防止变形
1/8” to 2 1/2” brass couplers have a redundant O-ring sealing system
1/8” to 2 1/2” 铜制接头配有多重O形圈密封系统
1 1/4” to 2 1/2” steel & SS couplers have a redundant O-ring sealing system
1 1/4” 至 2 1/2” 钢制和不锈钢接头配有多重O形圈密封系统
(Dual O-ring/no PTFE back up rings)
(双O形圈/无聚四氟乙烯 支撑环)
H-系列 液压接头 H-Series Hydraulic Couplings 3
Dixon Quick Couplings H-SERIES
Dixon快速接头
H-系列 ISO系列“B”互换部件
阀门密封件在溢流和增压情况下保证其密封??性
钢制软管接头经淬硬处理以提高其性能和抗压痕性
高性能滚花套管
不锈钢弹簧经最大化防锈处理
不锈钢定位环经最大化防锈处理
360° valve retaining clip.
360° 阀门卡箍
Full hexagonal ends.
六角接头
* Several competitors only
* 只配备一把扳手
H-Series Hydraulic Couplings H-系列 液压接头
H-SERIES Interchange Data:
互换:
- Interchangeable to ISO7241 Series 'B'
- Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV' Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
- 可与ISO7241 B系列产品互换
- Parker 60系列, Snap-Tite 72系列, Hansen HK 系列, Faster 系列 'HNV' Aeroquip/Eaton FD45,Stucchi 系列 IRB/IRBO/IRBX
材质:
- 使用脱氧实心钢或铜制物料，303#不锈钢或316#不锈钢棒料机加工制成。
- 不锈钢滚珠、定位环和制动弹簧均为不锈钢以确保最大程度的防锈，延长使用寿命。
- 钢制部件电镀使用符合ROHS的三价铬
- 钢制接套经淬火处理，以防止变形，保证其使用寿命。
- 钢制软管接头经淬硬处理以提高其性能和抗压痕性。
- 丁腈橡胶 密封件标准温度范围为-40°F to +250°F(-40°C 至 +121°C).
- 1/8 " 至 1" 钢制和不锈钢制接头配有聚四氟乙烯 抗挤压挡圈。
- 1/8 " 至 2 1/2 " 铜制接头配有多重O形圈密封系统 (双O形圈/无T聚四氟乙烯 支撑环)
- 1 1/4 " 至 2 1/2 " 钢制和不锈钢制接头配有多重O形圈密封系统 (双O形圈/无聚四氟乙烯 支撑环)
- 阀门密封件的卷皱部分是为了在过流和增压情况下保证其密闭性。
DQC H-Series ISO-B Poppet Valve Female Threaded Coupler
Select a Product
Part Number Material Seal Thread Thread Size Body Size Length
Part Number Material Seal Thread Thread Size Body Size Length
型号 |
材料 |
密封 |
螺纹 |
螺纹尺寸 |
阀体尺寸 |
长度 |
| 1HF1 |
Steel |
|
Female NPTF |
1/8"-27 |
1/8" |
1.90" |
| 1HF1-B |
Brass |
|
Female NPTF |
1/8"-27 |
1/8" |
1.90" |
| 1HF1-S |
303 Stainless Steel |
|
Female NPTF |
1/8"-27 |
1/8" |
1.90" |
| 1HF1-SS |
316 Stainless Steel |
|
Female NPTF |
1/8"-27 |
1/8" |
1.90" |
| 1HOF2 |
Steel |
|
Female ORB |
7/16"-20 |
1/8" |
1.90" |
| 2HBF2 |
Steel |
|
Female BSPP |
1/4"-19 |
1/4" |
2.26" (57.4mm) |
| 2HBF2-B |
Brass |
|
Female BSPP |
1/4"-19 |
1/4" |
2.26" (57.4mm) |
| 2HBF2-S |
303 Stainless Steel |
|
Female BSPP |
1/4"-19 |
1/4" |
2.26" (57.4mm) |
| 2HBF2-SS |
316 Stainless Steel |
|
Female BSPP |
1/4"-19 |
1/4" |
2.26" (57.4mm) |
| 2HF2 |
Steel |
|
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
| 2HF2-B |
Brass |
|
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
| 2HF2-S |
303 Stainless Steel |
|
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
| 2HF2-SS |
316 Stainless Steel |
|
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
| 2HOF3 |
Steel |
|
Female ORB |
9/16"-18 |
1/4" |
2.29" (58.2mm) |
| 3HBF3 |
Steel |
|
Female BSPP |
3/8"-19 |
3/8" |
2.51" (63.8mm) |
| 3HBF3-B |
Brass |
|
Female BSPP |
3/8"-19 |
3/8" |
2.51" (63.8mm) |
| 3HBF3-S |
303 Stainless Steel |
|
Female BSPP |
3/8"-19 |
3/8" |
2.51" (63.8mm) |
| 3HBF3-SS |
316 Stainless Steel |
|
Female BSPP |
3/8"-19 |
3/8" |
2.51" (63.8mm) |
| 3HF3 |
Steel |
|
Female NPTF |
3/8"-18 |
3/8" |
2.51" (63.8mm) |
| 3HF3-B |
Brass |
|
Female NPTF |
3/8"-18 |
3/8" |
2.51" (63.8mm) |
| 3HF3-S |
303 Stainless Steel |
|
Female NPTF |
3/8"-18 |
3/8" |
2.51" (63.8mm) |
| 3HF3-SS |
316 Stainless Steel |
|
Female NPTF |
3/8"-18 |
3/8" |
2.51" (63.8mm) |
| 3HOF4 |
Steel |
|
Female ORB |
3/4"-16 |
3/8" |
2.62" (66.5mm) |
| 4HBF4 |
Steel |
|
Female BSPP |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HBF4-B |
Brass |
|
Female BSPP |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HBF4-S |
303 Stainless Steel |
|
Female BSPP |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HBF4-SS |
316 Stainless Steel |
|
Female BSPP |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HF4 |
Steel |
|
Female NPTF |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HF4-B |
Brass |
|
Female NPTF |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HF4-S |
303 Stainless Steel |
|
Female NPTF |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HF4-SS |
316 Stainless Steel |
|
Female NPTF |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
| 4HOF5 |
Steel |
|
Female ORB |
7/8"-14 |
1/2" |
2.90" (73.7mm) |
| 6HBF6 |
Steel |
|
Female BSPP |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HBF6-B |
Brass |
|
Female BSPP |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HBF6-S |
303 Stainless Steel |
|
Female BSPP |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HBF6-SS |
316 Stainless Steel |
|
Female BSPP |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HF6 |
Steel |
|
Female NPTF |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HF6-B |
Brass |
|
Female NPTF |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HF6-S |
303 Stainless Steel |
|
Female NPTF |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HF6-SS |
316 Stainless Steel |
|
Female NPTF |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
| 6HOF6 |
Steel |
|
Female ORB |
1-1/16"-12 |
3/4" |
3.69" (93.7mm) |
| 8HBF8 |
Steel |
|
Female BSPP |
1"-11 |
1" |
4.13" (104.9mm) |
| 8HBF8-B |
Brass |
|
Female BSPP |
1"-11 |
1" |
4.13" (104.9mm) |
| 8HBF8-S |
303 Stainless Steel |
|
Female BSPP |
1"-11 |
1" |
4.13" (104.9mm) |
| 8HBF8-SS |
316 Stainless Steel |
|
Female BSPP |
1"-11 |
1" |
4.13" (104.9mm) |
| 8HF8 |
Steel |
|
Female NPTF |
1"- 11-1/2 |
1" |
4.13" (104.9mm) |
| 8HF8-B |
Brass |
|
Female NPTF |
1"- 11-1/2 |
1" |
4.13" (104.9mm) |
| 8HF8-S |
303 Stainless Steel |
|
Female NPTF |
1"- 11-1/2 |
1" |
4.13" (104.9mm) |
| 8HF8-SS |
316 Stainless Steel |
|
Female NPTF |
1"- 11-1/2 |
1" |
4.13" (104.9mm) |
| 8HOF8 |
Steel |
|
Female ORB |
1-5/16"-12 |
1" |
4.19" (106.3mm) |
| 10HBF10-SS |
316 Stainless Steel |
|
Female BSPP |
1-1/4"-11 |
1-1/4" |
4.43" (112.5mm) |
| F-2HF2 |
Steel |
FKM |
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
DQC H-Series ISO-B High Volume Female Coupler
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| 10HF10-S |
303 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.43" (112.5mm) |
| 12HBF12-S |
303 Stainless Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.81" (122.2mm) |
| 12HF10-S |
303 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 12HF12-S |
303 Stainless Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 10HF10-SS |
316 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.43" (112.5mm) |
| 12HF12-SS |
316 Stainless Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 12HBF12-SS |
316 Stainless Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.81" (122.2mm) |
| 10HF10-B |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.43" (112.5mm) |
| 12HF10-B |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 12HBF12-B |
Brass |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.81" (122.2mm) |
| 12HF12-B |
Brass |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 20HF16-B |
Brass |
Female NPTF |
2"- 11-1/2 |
2-1/2" |
5.57" (141.5mm) |
| 10HF10 |
Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.43" (112.5mm) |
| 12HF10 |
Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 12HBF12 |
Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.81" (122.2mm) |
| 20HF24 |
Steel |
Female NPTF |
3"-8 |
2-1/2" |
6.96" (176.8mm) |
| 20HF16 |
Steel |
Female NPTF |
2"- 11-1/2 |
2-1/2" |
5.57" (141.5mm) |
| 10HBF10 |
Steel |
Female BSPP |
1-1/4"-11 |
1-1/4" |
4.43" (112.5mm) |
| 12HF12 |
Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.81" (122.2mm) |
| 20HF20 |
Steel |
Female NPTF |
2-1/2"-8 |
2-1/2" |
6.04" (153.4mm) |
| 12HOF12 |
Steel |
Female ORB |
1-7/8"-12 |
1-1/2" |
4.81" (122.2mm) |
| 12HOF10 |
Steel |
Female ORB |
1-5/8"-12 |
1-1/2" |
4.81" (122.2mm) |
DQC H-Series ISO-B Steel Mill 'Slide Gate' Female Threaded Coupler
Product Information
- Material : Steel
- Thread : Female NPTF
- Thread Size : 1/2"-14
- Body Size : 1/2"
- Length : 2.86" (72.6mm)
Select a Product
DQC H-Series ISO-B Food Grade Nylon Flanged Female Threaded Coupler
Product Information
Thread: Female NPTF
Thread Size: 1/2"-14
Body Size: 1/2"
Length: 2.86" (72.6mm)
Part Number Material
D-4HF4-S-FNS 303 Stainless Steel
D-4HF4-SS-FNS 316 Stainless Steel
DQC H-Series ISO-B Food Grade Silicone Flanged Female Threaded Coupler
Product Information
Thread: Female NPTF
Thread Size: 1/2"-14
Body Size: 1/2"
Length: 2.86" (72.6mm)
Part Number Material
D-4HF4-S-FSB 303 Stainless Steel
D-4HF4-SS-FSB 316 Stainless Steel
DQC H-BOP Series Blowout Preventer Safety Female Coupler
Product Information
Seal: FKM
Thread: Female NPTF
Select a Product
Part Number Material Thread Size Body Size Length Flow
Part Number Material Thread Size Body Size Length Flow
| 3HF3-BOP |
Steel |
3/8"- 18 |
3/8" |
2.50" |
12 GPM |
| 3HF3-SS-BOP |
316 Stainless Steel |
3/8"- 18 |
3/8" |
2.50" |
12 GPM |
| 4HF4-BOP |
Steel |
1/2"- 14 |
1/2" |
2.86" (72.6 mm) |
15 GPM |
| 4HF4-SS-BOP |
316 Stainless Steel |
1/2"- 14 |
1/2" |
2.86" (72.6 mm) |
15 GPM |
| 6HF6-BOP |
Steel |
3/4"- 14 |
3/4" |
3.55" (90.2 mm) |
29 GPM |
| 6HF6-SS-BOP |
316 Stainless Steel |
3/4"- 14 |
3/4" |
3.55" (90.2 mm) |
29 GPM |
| 8HF8-BOP |
Steel |
1"- 11-1/2 |
1" |
4.13" (104.9 mm) |
50 GPM |
| 8HF8-SS-BOP |
316 Stainless Steel |
1"- 11-1/2 |
1" |
4.13" (104.9 mm) |
|
DQC H-BOP Series Blowout Preventer Safety Female Plug
Product Information
- Seal : FKM
- Thread : Female NPTF
Select a Product
Part Number Material Thread Size Body Size Length Flow
| H3F3-BOP |
Steel |
3/8"- 18 |
3/8" |
1.53" |
12 GPM |
| H3F3-SS-BOP |
316 Stainless Steel |
3/8"- 18 |
3/8" |
1.53" |
12 GPM |
| H4F4-BOP |
Steel |
1/2"- 14 |
1/2" |
1.94" (49.3 mm) |
15 GPM |
| H4F4-SS-BOP |
316 Stainless Steel |
1/2"- 14 |
1/2" |
1.94" (49.3 mm) |
15 GPM |
| H6F6-BOP |
Steel |
3/4"- 14 |
3/4" |
2.41" (61.2 mm) |
29 GPM |
| H6F6-SS-BOP |
316 Stainless Steel |
3/4"- 14 |
3/4" |
2.41" (61.2 mm) |
29 GPM |
| H8F8-BOP |
Steel |
1"- 11-1/2 |
1" |
2.87" (72.9 mm) |
50 GPM |
| H8F8-SS-BOP |
316 Stainless Steel |
1"- 11-1/2 |
1" |
2.87" (72.9 mm) |
50 GPM |
DQC H-Series ISO-B Female Plug
Select a Product
Part Number Material Seal Thread Thread Size Body Size Length
Part Number Material Seal Thread Thread Size Body Size Length
| F-H2F2 |
Steel |
FKM |
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
| F-H2F2-B |
Brass |
FKM |
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
| F-H3F3-B |
Brass |
FKM |
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
| H1F1 |
Steel |
|
Female NPTF |
1/8"-27 |
1/8" |
1.28" |
| H1F1-B |
Brass |
|
Female NPTF |
1/8"-27 |
1/8" |
1.28" |
| H1F1-S |
303 Stainless Steel |
|
Female NPTF |
1/8"-27 |
1/8" |
1.28" |
| H1F1-SS |
316 Stainless Steel |
|
Female NPTF |
1/8"-27 |
1/8" |
1.28" |
| H1OF2 |
Steel |
|
Female ORB |
7/16"-20 |
1/8" |
1.28" |
| H2BF2 |
Steel |
|
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4mm) |
| H2BF2-B |
Brass |
|
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4mm) |
| H2BF2-S |
303 Stainless Steel |
|
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4mm) |
| H2BF2-SS |
316 Stainless Steel |
|
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4mm) |
| H2F2 |
Steel |
|
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
| H2F2-B |
Brass |
|
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
| H2F2-S |
303 Stainless Steel |
|
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
| H2F2-SS |
316 Stainless Steel |
|
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
| H2OF3 |
Steel |
|
Female ORB |
9/16"-18 |
1/4" |
1.61" (40.9mm) |
| H3BF3 |
Steel |
|
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2mm) |
| H3BF3-B |
Brass |
|
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2mm) |
| H3BF3-S |
303 Stainless Steel |
|
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2mm) |
| H3BF3-SS |
316 Stainless Steel |
|
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2mm) |
| H3F3 |
Steel |
|
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
| H3F3-B |
Brass |
|
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
| H3F3-S |
303 Stainless Steel |
|
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
| H3F3-SS |
316 Stainless Steel |
|
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
| H3OF4 |
Steel |
|
Female ORB |
3/4"-16 |
3/8" |
1.79" (45.5mm) |
| H4BF4 |
Steel |
|
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
| H4BF4-B |
Brass |
|
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
| H4BF4-S |
303 Stainless Steel |
|
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
| H4BF4-SS |
316 Stainless Steel |
|
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
| H4F4 |
Steel |
|
NPTF |
1/2"- 14 |
1/2" |
1.94" (49.3mm) |
| H4F4-B |
Brass |
|
Female NPTF |
1/2"- 14 |
1/2" |
1.94" (49.3mm) |
| H4F4-S |
303 Stainless Steel |
|
Female NPTF |
1/2"- 14 |
1/2" |
1.94" (49.3mm) |
| H4F4-SS |
316 Stainless Steel |
|
Female NPTF |
1/2"- 14 |
1/2" |
1.94" (49.3mm) |
| H4OF5 |
Steel |
|
Female ORB |
7/8"-14 |
1/2" |
1.94" (49.3mm) |
| H6BF6 |
Steel |
|
Female BSPP |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6BF6-B |
Brass |
|
Female BSPP |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6BF6-S |
303 Stainless Steel |
|
Female BSPP |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6BF6-SS |
316 Stainless Steel |
|
Female BSPP |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6F6 |
Steel |
|
Female NPTF |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6F6-B |
Brass |
|
Female NPTF |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6F6-S |
303 Stainless Steel |
|
Female NPTF |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6F6-SS |
316 Stainless Steel |
|
Female NPTF |
3/4"-14 |
3/4" |
2.44" (61.2mm) |
| H6OF6 |
Steel |
|
Female ORB |
1-1/16"-12 |
3/4" |
2.58" (61.2mm) |
| H8BF8 |
Steel |
|
Female BSPP |
1"-11 |
1" |
2.87" (72.9mm) |
| H8BF8-B |
Brass |
|
Female BSPP |
1"-11 |
1" |
2.87" (72.9mm) |
| H8BF8-S |
303 Stainless Steel |
|
Female BSPP |
1"-11 |
1" |
2.87" (72.9mm) |
| H8BF8-SS |
316 Stainless Steel |
|
Female BSPP |
1"-11 |
1" |
2.87" (72.9mm) |
| H8F8 |
Steel |
|
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
| H8F8-B |
Brass |
|
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
| H8F8-S |
303 Stainless Steel |
|
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
| H8F8-SS |
316 Stainless Steel |
|
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
| H8OF8 |
Steel |
|
Female ORB |
1-5/16"-12 |
1" |
2.87" (72.9mm) |
DQC H-Series ISO-B High Volume Female Plug
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| H10BF10 |
Steel |
Female BSPP |
1-1/4"-11 |
1-1/4" |
4.25" (108.0mm) |
| H10F10 |
Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.25" (108.0mm) |
| H10F10-B |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.25" (108.0mm) |
| H10F10-S |
303 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.25" (108.0mm) |
| H10F10-SS |
316 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.25" (108.0mm) |
| H12BF12 |
Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.76" (120.9mm) |
| H12BF12-B |
Brass |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.76" (120.9mm) |
| H12BF12-S |
303 Stainless Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.76" (120.9mm) |
| H12BF12-SS |
316 Stainless Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.76" (120.9mm) |
| H12F10 |
Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12F10-B |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12F10-S |
303 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12F12 |
Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12F12-B |
Brass |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12F12-S |
303 Stainless Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12F12-SS |
316 Stainless Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
4.76" (120.9mm) |
| H12OF10 |
Steel |
Female ORB |
1-5/8"-12 |
1-1/2" |
4.76" (120.9mm) |
| H12OF12 |
Steel |
Female ORB |
1-7/8"-12 |
1-1/2" |
4.76" (120.9mm) |
| H20F16 |
Steel |
Female NPTF |
2"- 11-1/2 |
2-1/2" |
5.48" (139.2mm) |
| H20F16-B |
Brass |
Female NPTF |
2"- 11-1/2 |
2-1/2" |
5.48" (139.2mm) |
| H20F20 |
Steel |
Female NPTF |
2-1/2"-8 |
2-1/2" |
5.95" (151.1mm) |
| H20F24 |
Steel |
Female NPTF |
3"-8 |
2-1/2" |
6.87" (174.5mm) |
DQC H-BOP Series Blowout Preventer Safety Female Plug
Product Information
- Seal : FKM
- Thread : Female NPTF
Select a Product
Part Number Material Thread Size Body Size Length Flow
Part Number Material Thread Size Body Size Length Flow
| H3F3-BOP |
Steel |
3/8"- 18 |
3/8" |
1.53" |
12 GPM |
| H3F3-SS-BOP |
316 Stainless Steel |
3/8"- 18 |
3/8" |
1.53" |
12 GPM |
| H4F4-BOP |
Steel |
1/2"- 14 |
1/2" |
1.94" (49.3 mm) |
15 GPM |
| H4F4-SS-BOP |
316 Stainless Steel |
1/2"- 14 |
1/2" |
1.94" (49.3 mm) |
15 GPM |
| H6F6-BOP |
Steel |
3/4"- 14 |
3/4" |
2.41" (61.2 mm) |
29 GPM |
| H6F6-SS-BOP |
316 Stainless Steel |
3/4"- 14 |
3/4" |
2.41" (61.2 mm) |
29 GPM |
| H8F8-BOP |
Steel |
1"- 11-1/2 |
1" |
2.87" (72.9 mm) |
50 GPM |
| H8F8-SS-BOP |
316 Stainless Steel |
1"- 11-1/2 |
1" |
2.87" (72.9 mm) |
50 GPM |
DQC H-Series ISO-B Food Grade Female Threaded Plug
Product Information
Thread: Female NPTF
Thread Size: 1/2"-14
Body Size: 1/2"
Length: 1.94" (49.3mm)
Part Number
Material
D-H4F4-S 303 Stainless Steel
D-H4F4-SS 316 Stainless Steel
D-H4F4-SV-8 Steel
超低温系列产品
3180038393
