Dixon HS-系列 液压接头 HS-Series Hydraulic Couplings
Dixon Quick Couplings
HS-SERIES液压接头
互换:
- Interchangeable to ISO7241 Series 'B'
- Parker 60-Series Steam Couplings
- 可与ISO7241 B系列产品互换
- Parker 60系列, 蒸汽接头
HS-系列 液压接头 HS-Series Hydraulic Couplings |
HS-SERIES液压接头技术资料下载
材质:
- 使用脱氧实心钢或铜制物料,303#不锈钢或316#不锈钢棒料机加工制成。
- 不锈钢滚珠、定位环和制动弹簧均为不锈钢以确保最大程度的防锈,
延长使用寿命。
- 钢制部件电镀使用符合ROHS的三价铬
- 大直径钢制蒸汽接套经硬化处理以防止变形并最大化增加接头使用寿命。
- 钢制软管接头经淬硬处理以提高其性能和抗压痕性。
- 所有接头都标配有蒸汽接套。

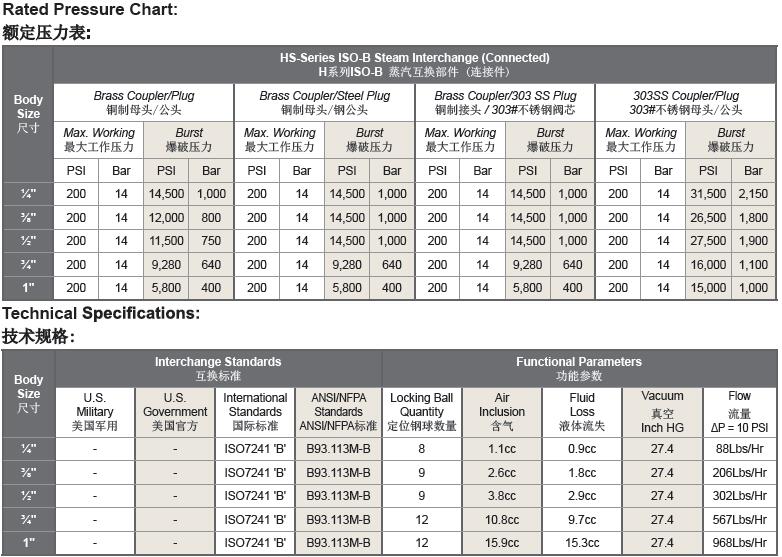

密封件:
- 三元乙丙橡胶蒸汽 密封件标准温度范围为-70°F 至 +400°F (-57°C 至 +204°C。
- 铜制接头配有多重O形圈密封系统 (双O形圈/无聚四氟乙烯 支撑环)
- 不锈钢接头配有1个O形圈/聚四氟乙烯抗挤压挡圈密封系统。
- 阀门密封件的卷皱部分是为了在过流和增压情况下保证其密闭性。
DQC HS-Series ISO-B Steam Interchange Female Coupler
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
2HSBF2-B |
Brass |
Female BSPP |
1/4"-19 |
1/4" |
2.26" |
2HSBF2-S |
303 Stainless Steel |
Female BSPP |
1/4"-19 |
1/4" |
2.26" (57.4mm) |
2HSF2-B |
Brass |
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
2HSF2-S |
303 Stainless Steel |
Female NPTF |
1/4"-18 |
1/4" |
2.26" (57.4mm) |
3HSBF3-B |
Brass |
Female BSPP |
3/8"-19 |
3/8" |
2.51" |
3HSBF3-S |
303 Stainless Steel |
Female BSPP |
3/8"-19 |
3/8" |
2.51" |
3HSF3-B |
Brass |
Female NPTF |
3/8"-18 |
3/8" |
2.51" (63.8mm) |
3HSF3-S |
303 Stainless Steel |
Female NPTF |
3/8"-18 |
3/8" |
2.51" (63.8mm) |
4HSBF4-B |
Brass |
Female BSPP |
1/2"-14 |
1/2" |
2.86" |
4HSBF4-S |
303 Stainless Steel |
Female BSPP |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
4HSF4-B |
Brass |
Female NPTF |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
4HSF4-S |
303 Stainless Steel |
Female NPTF |
1/2"-14 |
1/2" |
2.86" (72.6mm) |
6HSBF6-B |
Brass |
Female BSPP |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
6HSBF6-S |
303 Stainless Steel |
Female BSPP |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
6HSF6-B |
Brass |
Female NPTF |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
6HSF6-S |
303 Stainless Steel |
Female NPTF |
3/4"-14 |
3/4" |
3.55" (90.2mm) |
8HSBF8-B |
Brass |
Female BSPP |
1"-11 |
1" |
4.13" (104.9mm) |
8HSBF8-S |
303 Stainless Steel |
Female BSPP |
1"-11 |
1" |
4.13" (104.9mm) |
8HSF8-B |
Brass |
Female NPTF |
1"- 11-1/2 |
1" |
4.13" (104.9mm) |
8HSF8-S |
303 Stainless Steel |
Female NPTF |
1"- 11-1/2 |
1" |
4.13" (104.9mm) |
PS-12HF12-B |
Brass |
Female NPTF |
1-1/2"- 11 1/2" |
1-1/2" |
|
DQC HS-Series ISO-B Steam Interchange Female Plug
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
HS2BF2 |
Steel |
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4mm) |
HS2BF2-B |
Brass |
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4 mm) |
HS2BF2-S |
303 Stainless Steel |
Female BSPP |
1/4"-19 |
1/4" |
1.55" (39.4mm) |
HS2F2 |
Steel |
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
HS2F2-B |
Brass |
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
HS2F2-S |
303 Stainless Steel |
Female NPTF |
1/4"-18 |
1/4" |
1.55" (39.4mm) |
HS3BF3 |
Steel |
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2 mm) |
HS3BF3-B |
Brass |
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2 mm) |
HS3BF3-S |
303 Stainless Steel |
Female BSPP |
3/8"-19 |
3/8" |
1.70" (43.2 mm) |
HS3F3 |
Steel |
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
HS3F3-B |
Brass |
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
HS3F3-S |
303 Stainless Steel |
Female NPTF |
3/8"-18 |
3/8" |
1.70" (43.2mm) |
HS4BF4 |
Steel |
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3 mm) |
HS4BF4-B |
Brass |
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3 mm) |
HS4BF4-S |
303 Stainless Steel |
Female BSPP |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
HS4F4 |
Steel |
Female NPTF |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
HS4F4-B |
Brass |
Female NPTF |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
HS4F4-S |
303 Stainless Steel |
Female NPTF |
1/2"-14 |
1/2" |
1.94" (49.3mm) |
HS6BF6 |
Steel |
Female BSPP |
3/4"-14 |
3/4" |
2.43" (61.7mm) |
HS6BF6-B |
Brass |
Female BSPP |
3/4"-14 |
3/4" |
2.43" (61.7mm) |
HS6BF6-S |
303 Stainless Steel |
Female BSPP |
3/4"-14 |
3/4" |
2.43" (61.7mm) |
HS6F6 |
Steel |
Female NPTF |
3/4"-14 |
3/4" |
2.43" (61.7mm) |
HS6F6-B |
Brass |
Female NPTF |
3/4"-14 |
3/4" |
2.43" (61.7mm) |
HS6F6-S |
303 Stainless Steel |
Female NPTF |
3/4"-14 |
3/4" |
2.43" (61.7mm) |
HS8BF8 |
Steel |
Female BSPP |
1"-11 |
1" |
2.87" (72.9 mm) |
HS8BF8-B |
Brass |
Female BSPP |
1"-11 |
1" |
2.87" (72.9mm) |
HS8BF8-S |
303 Stainless Steel |
Female BSPP |
1"-11 |
1" |
2.87" (72.9mm) |
HS8F8 |
Steel |
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
HS8F8-B |
Brass |
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
HS8F8-S |
303 Stainless Steel |
Female NPTF |
1"- 11-1/2 |
1" |
2.87" (72.9mm) |
PS-H12F12-B |
Brass |
Female NPTF |
1-1/2"- 11 1/2" |
1-1/2" |
|
|
