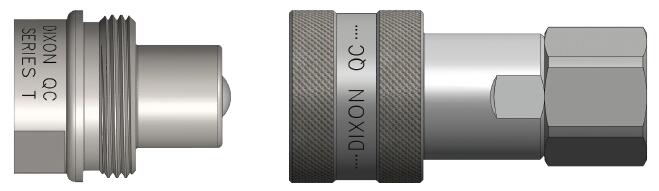

DIXON T系列液压快速接头 T-Series Hydraulic Couplings
T SERIES Dixon Quick CouplingsDixon快速接头
T Series T系列快速接头
产品选项
FNPT, BSPP & BSPT
可选带阀或无阀产品Valved / Unvalved
提动阀Poppet valves
DIXON T系列液压快速接头 T-Series Hydraulic Couplings技术资料下载
T SERIES Dixon Quick CouplingsDixon快速接头
密封材料选项 :Seal material options (Viton?, Mil-Nitrile, Kalrez?) (Viton?, Mil-Nitrile, Kalrez?)
尺寸 1/4” 和 3/8”
材质Body Materials:
钢和316不锈钢Steel and 316 Stainless Steel
Seals Temp Range: Polyurethane - (-40°C to +82°C)
密封件温度范围 聚氨酯- (-40°C 至 +82°C)
Nitrile - (-40°C to + 121°C)
腈- (-40°C 至 + 121°C)
互换Interchange:
Parker Pioneer 3000 Series, Enerpac? C604, Stucci IVHP, Hansen W556000, Snap-Tite 76 Series, DNP PVM.
Parker /Pioneer 3000 系列, Enerpac? C604, Stucci IVHP, Hansen W556000, Snap-Tite 76系列, DNP PVM.
市场&应用Applications:
1、液压泵设备，液压支架式千斤顶，液压瓶式千斤顶Hydraulic pumping equipment, Hydraulic toe jacks, Hydraulic bottle jacks
2、救援切割设备，液压抬升装置Rescue cutting equipment, Hydraulic jack up units
特点Features:
ROHS Compliant Trivalent Chrome plating
使用符合ROHS标准的三价铬进行电镀处理
Upgraded design improving performance and reliability
改善设计以提高产品性能

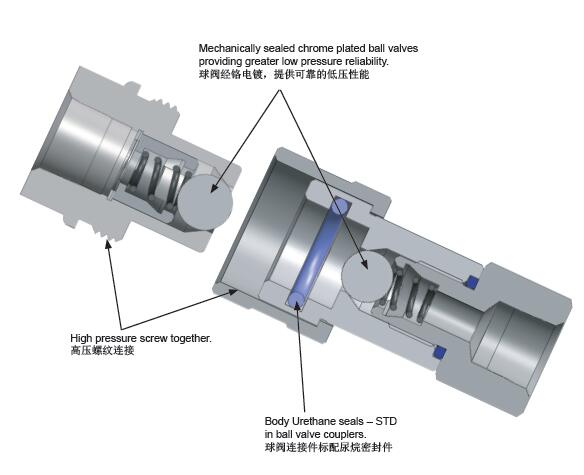

Mechanically seated ball valve providing greater low pressure reliability
镀铬球阀的机械密封提供可靠的低压性能
Nitrile seals standard in poppet valve couplings
提动阀标配腈制密封件
Steel nipples machined from soild high strength steel.
钢制软管接头由高强度实心钢机加工制成
Polyurethane seal is standard in ball valve couplers - resists extrusion when subjected to
high pressure
球阀标配有聚氨酯密封件以防止高压喷出
T-系列 液压接头 T-Series Hydraulic Couplings
T-SERIES
Interchange Data
互换:
- High Pressure Screw-Together Interchange
- Parker/Pioneer 3000-Series, Enerpac C604, Stucchi IVHP
- Hansen WS56000, Snap-Tite 76-Series, DNP PVM
- 高压螺纹连接互换部件
- Parker/Pioneer 3000-系列, Enerpac C604, Stucchi IVHP
- Hansen WS56000, Snap-Tite 76-系列, DNP PVM
Materials
材质:
- Machined components are manufactured using solid steel or 316 stainless steel bar stock.
- Chrome steel ball valve is mechanically seated to improve low pressure sealing performance.
- Steel nipples are machined from solid high strength steel bar stock.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- 部件为脱氧实心钢或由316不锈钢棒料机加工制成。
- 镀铬球阀的机械密封提供可靠的低压性能。
- 钢制软管接头由高强度钢棒料机加工制成。
- 钢制部件电镀使用符合ROHS的三价铬
Seal Components:
密封件:
- Urethane seal is standard in ball valve couplers and provides resistance to extrusion when subjected to high pressure - temperature range -40°F to +180°F (-40°C to +82°C).
- Nitrile seals are standard in poppet valve couplings, providing a temperature range of -40°F to +250°F (-40°C to +121°C).
- 球阀接头标配尿烷制密封件以防止在高温环境下挤压变形，温度 范围为-40°F 至 +180°F (-40°C至+82°C)
- 提动阀接头标配腈类密封件，温度范围为-40°F 至 +250°F (-40°C至+121°C)
DQC T-Series Male NPTF Poppet Coupler
Product Information
Thread: Male NPTF
Thread Size: 3/8"-18
Body Size: 3/8"
Length: 2.78" (70.7mm)
Part Number
Material
3TM3-PV Steel
3TM3-SS-PV 316 Stainless Steel
DQC T-Series Male NPTF Ball Coupler
Product Information
Thread: Male NPTF
Part Number
Material
Thread Size
Body Size
Length
2TM2 Steel 1/4"-18 1/4" 2.16" (54.9mm)
3TM3 Steel 3/8"-18 3/8" 2.59" (65.8mm)
3TM3-SS 316 Stainless Steel 3/8"-18 3/8" 2.59" (65.8mm)
DQC T-Series Female NPTF Ball Plug
Product Information
Thread: Female NPTF
Part Number
Material
Thread Size
Body Size
Length
T2F2 Steel 1/4"-18 1/4" 1.29" (32.9mm)
T3F3 Steel 3/8"-18 3/8" 1.56" (39.7mm)
T3F3-SS 316 Stainless Steel 3/8"-18 3/8" 1.56" (39.7mm)
DQC T-Series Female NPTF Poppet Plug
Product Information
Thread: Female NPTF
Thread Size: 3/8"-18
Body Size: 3/8"
Length: 1.53" (38.9mm)
Select a Product
Part Number
Material
T3F3-PV Steel
T3F3-SS-PV 316 Stainless Steel
|
