DIXON WS-系列 液压接头 WS-Series Hydraulic Couplings 75
Dixon Quick Couplings WS-SERIES
Dixon快速接头
WS Series Wingstyle Interchange
WS系列 翼形高压部件
产品选项：
FNPT, BSPP & ORB
Blowout prevention (BOP) models
防井喷类型（BOP）
密封材料选项 (Viton?, EPDM, Silicone, Kalrez?, Nitrile compounds)
Size: 3/4” to 2”
尺寸 3/4” 至 2”
DIXON WS系列液压快速接头WS Series Hydraulic Couplings | Dixon Quick Couplings WS SERIES
Dixon
WS Series Wingstyle Interchange WS系列 翼形高压部件技术资料下载
材质：
高强度钢和316不锈钢High tensile steel and 316 stainless steel
Standards:
标准：
符合挪威船级社（DNV）接头标准Det Norske Vertias (DNV) Compliance for coupling applications
劳氏船级社标准NAO 0601041/1 API 16D BOP服务（5分钟700°C火焰防护）
互换Interchange：
Snap-Tite 75 系列, Hydraulics Incorporated STV 系列
市场&应用Markets & Uses:
1 、石油平台(液压供给管线，防喷保护，管钳，顶部驱动装置)
Oil platforms (Hydraulic supply lines, blow out prevention, pipe spinners, top drivers)
2、Construction (Pile drivers, tampers, hydraulic hammers)
建筑施工设备(打桩机、夯土机、液压锤)
3、Offshore (Supply Reels, platform jack-up systems, water pump systems
海上工程 (卷缆设备, 自升式平台系统，水泵系统)
特点
钢制产品工作压力为5000PSI，316不锈钢产品工作压力为1750PSI
Blow out prevention safety coupling for oil platform BOP systems
防井喷保护安全接头适用于油井平台BOP系统
Aluminium dust caps/plugs with SS bead chain
铝制防尘帽/堵盖配有不锈钢珠链
View ports available on request (except for BOP models)
如需要可配备检视孔（除BOP类型外）
Steel componentry plated using ROHS Compliant Trivalent Chrome
钢制部件使用符合ROHS标准的三价铬进行电镀

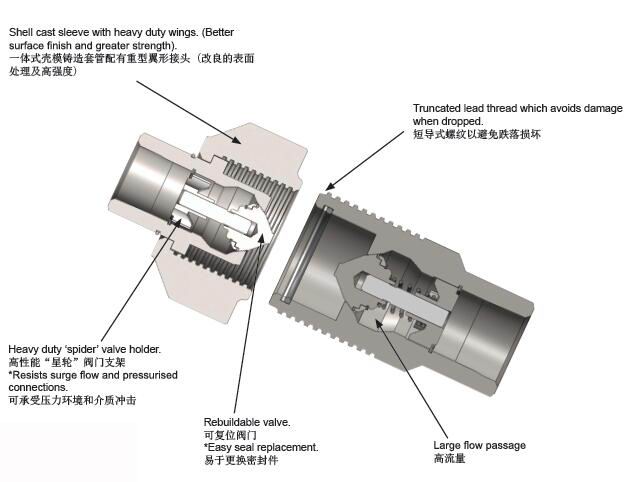

Truncated lead threads to avoid drop damage
短导式螺纹以避免跌落损坏
One piece Shell Cast sleeve with heavy duty wings
一体式壳模铸造套管配有重型翼形接头
Main valve seal is housed to improve seal integrity during pressured connection &
disconnection
内置主阀门密封件在压力连接和断开的情况下以改善密封完整性
DIXON WS系列液压快速接头 WS-Series Hydraulic Couplings | Dixon Quick Couplings WS-SERIES Dixon快速接头WS Series Wingstyle Interchange WS系列 翼形高压部件 | 防井喷类型（BOP） Blowout prevention (BOP) models 符合挪威船级社（DNV）接头标准 劳氏船级社标准NAO 0601041/1 API 16D BOP服务（5分钟700°C火焰防护）Snap-Tite 75 系列, Hydraulics Incorporated STV 系列 | 石油平台(液压供给管线，防喷保护，管钳，顶部驱动装置)Oil platforms (Hydraulic supply lines, blow out prevention, pipe spinners, top drivers) | Construction (Pile drivers, tampers, hydraulic hammers)建筑施工设备(打桩机、夯土机、液压锤) | Offshore (Supply Reels, platform jack-up systems, water pump systems 海上工程 (卷缆设备, 自升式平台系统，水泵系统)
WS-系列 液压接头 WS-Series Hydraulic Couplings
WS-SERIES
互换Interchange Data:
- High Pressure Wingstyle Interchange
- Snap-Tite 75-Series, Hydraulics Inc. Series-5TV
- 高压翼型互换部件
- Snap-Tite 75-系列, Hydraulics Inc. 系列-5TV
材质Materials:
- 部件为脱氧实心钢或由316不锈钢棒料机加工制成。
- 不锈钢滚珠、定位环和制动弹簧均为不锈钢以确保最大程度的防锈，延长使用
寿命。
- 钢制部件电镀使用符合ROHS的三价铬
- 高强度钢制翼型螺母外壳利用螺纹实现连接和断开操作。
- 316不锈钢软管接头连接螺纹经涂层处理，以防止连接和断开操作中的磨损。
- 1?” 和 1?”316不锈钢接头配有六角螺母型连接套管。
密封件Seal Components:
- 标配丁腈橡胶，温度范围为-40°F 至 +250°F (-40°C至+121°C)
- 聚四氟乙烯抗挤压挡圈保护主接头O形圈免受动态冲压损伤。
- 主阀门密封件为封装，以提增压条件下连接和断开操作是阀门的密闭性。
- 防井喷（BOP）接头含防火级Viton?密封件，经劳氏船级社测试证明符合API 16D标准可经受 700°C（1300°F）高温（证书编号NAO 0601041/1）。
WS-Series High Pressure Wingstyle Female Coupler
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| 6WSBF6 |
Steel |
Female BSPP |
3/4"-14 |
3/4" |
2.76" (70.1mm) |
| 6WSBF6-SS |
316 Stainless Steel |
Female BSPP |
3/4"-14 |
3/4" |
2.76" (70.1mm) |
| 6WSF4 |
Steel |
Female NPTF |
1/2"-14 |
3/4" |
2.76" (70.1mm) |
| 6WSF6 |
Steel |
Female NPTF |
3/4"-14 |
3/4" |
2.76" (70.1mm) |
| 6WSF6-SS |
316 Stainless Steel |
Female NPTF |
3/4"-14 |
3/4" |
2.76" (70.1mm) |
| 6WSOF6 |
Steel |
Female ORB |
1-1/16"-12 |
3/4" |
2.76" (70.1mm) |
| 8WSBF8 |
Steel |
Female BSPP |
1"-11 |
1" |
3.45" (87.6mm) |
| 8WSBF8-SS |
316 Stainless Steel |
Female BSPP |
1"-11 |
1" |
3.45" (87.6mm) |
| 8WSF8 |
Steel |
Female NPTF |
1"- 11-1/2 |
1" |
3.45" (87.6mm) |
| 8WSF8-SS |
316 Stainless Steel |
Female NPTF |
1"- 11-1/2 |
1" |
3.45" (87.6mm) |
| 8WSOF8 |
Steel |
Female ORB |
1-5/16"-12 |
1" |
3.45" (87.6mm) |
| 10WSBF10 |
Steel |
Female BSPP |
1-1/4"-11 |
1-1/4" |
4.40" (111.8mm) |
| 10WSBF10-SS |
316 Stainless Steel |
Female BSPP |
1-1/4"-11 |
1-1/4" |
4.40" (111.8mm) |
| 10WSF10 |
Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.40" (111.8mm) |
| 10WSF10-SS |
316 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
4.40" (111.8mm) |
| 10WSOF10 |
Steel |
Female ORB |
1-5/8"-12 |
1-1/4" |
4.40" (111.8mm) |
| 12WSBF12 |
Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
5.13" (130.3mm) |
| 12WSBF12-SS |
316 Stainless Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
5.13" (130.3mm) |
| 12WSF12 |
Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
5.13" (130.3mm) |
| 12WSF12-SS |
316 Stainless Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
5.13" (130.3mm) |
| 12WSOF12 |
Steel |
Female ORB |
1-7/8"-12 |
1-1/2" |
5.13" (130.3mm) |
| 16WSBF16 |
Steel |
Female BSPP |
2"-11 |
2" |
6.09" (154.7mm) |
| 16WSBF16-SS |
316 Stainless Steel |
Female BSPP |
2"-11 |
2" |
6.09" (154.7mm) |
| 16WSF16 |
Steel |
Female NPTF |
2"- 11-1/2 |
2" |
6.09" (154.7mm) |
| 16WSF16-SS |
316 Stainless Steel |
Female NPTF |
2"- 11-1/2 |
2" |
6.09" (154.7mm) |
| 16WSOF16 |
Steel |
Female ORB |
2-1/2"- 12 |
2" |
6.09" (154.7mm) |
WS-Series High Pressure Wingstyle Code 62 Flange Pad Coupler
Product Information
Material: Steel
Part Number
Port
Body Size
6WSFP6 3/4" 3/4"
8WSFP8 1" 1"
10WSFP10 1 1/4" 1 1/4"
12WSFP12 1 1/2" 1 1/2"
16WSFP16 2" 2"
WS-Series High Pressure Wingstyle Code 62 Flange Head Coupler
Product Information
Description: High Pressure Wingstyle Interchange Code 62 Flange Head Coupler
Material: Steel
Part Number
Size
Port
Body Size
6WSFH6 3/4" 3/4" 3/4"
8WSFH8 1" 1"
10WSFH10 1 1/4" 1 1/4"
12WSFH12 1 1/2" 1 1/2"
16WSFH16 2" 2"
DQC WS-BOP Series High Pressure Wingstyle Female Coupler
Product Information
Thread: Female NPTF
Select a Product
Part Number Material Thread Size Body Size Length
WS-Series High Pressure Wingstyle Female Plug
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| WS6BF6 |
Steel |
Female BSPP |
3/4"-14 |
3/4" |
3.27" (83.1mm) |
| WS6BF6-SS |
316 Stainless Steel |
Female BSPP |
3/4"-14 |
3/4" |
3.27" (83.1mm) |
| WS6F4 |
Steel |
Female NPTF |
1/2"-14 |
3/4" |
3.27" (83.1mm) |
| WS6F6 |
Steel |
Female NPTF |
3/4"-14 |
3/4" |
3.27" (83.1mm) |
| WS6F6-SS |
316 Stainless Steel |
Female NPTF |
3/4"-14 |
3/4" |
3.27" (83.1mm) |
| WS6OF6 |
Steel |
Female ORB |
1-1/16"-12 |
3/4" |
3.27" (83.1mm) |
| WS8BF8 |
Steel |
Female BSPP |
1"-11 |
1" |
4.18" (106.2mm) |
| WS8BF8-SS |
316 Stainless Steel |
Female BSPP |
1"-11 |
1" |
4.18" (106.2mm) |
| WS8F8 |
Steel |
Female NPTF |
1"- 11-1/2 |
1" |
4.18" (106.2mm) |
| WS8F8-SS |
316 Stainless Steel |
Female NPTF |
1"- 11-1/2 |
1" |
4.18" (106.2mm) |
| WS8OF8 |
Steel |
Female ORB |
1-5/16"- 12 |
1" |
4.18" (106.2mm) |
| WS10BF10 |
Steel |
Female BSPP |
1-1/4"-11 |
1-1/4" |
5.38" (136.7mm) |
| WS10BF10-SS |
316 Stainless Steel |
Female BSPP |
1-1/4"-11 |
1-1/4" |
5.38" (136.7mm) |
| WS10F10 |
Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
5.38" (136.7mm) |
| WS10F10-SS |
316 Stainless Steel |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
5.38" (136.7mm) |
| WS10OF10 |
Steel |
Female ORB |
1-5/8"-12 |
1-1/4" |
5.38" (136.7mm) |
| WS12BF12 |
Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
5.98" (151.9mm) |
| WS12BF12-SS |
316 Stainless Steel |
Female BSPP |
1-1/2"-11 |
1-1/2" |
5.98" (151.9mm) |
| WS12F12 |
Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
5.98" (151.9mm) |
| WS12F12-SS |
316 Stainless Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
5.98" (151.9mm) |
| WS12OF12 |
Steel |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
5.98" (151.9mm) |
| WS16BF16 |
Steel |
Female BSPP |
2"-11 |
2" |
7.05" (179.1mm) |
| WS16BF16-SS |
316 Stainless Steel |
Female BSPP |
2"-11 |
2" |
7.05" (179.1mm) |
| WS16F16 |
Steel |
Female NPTF |
2"- 11-1/2 |
2" |
7.05" (179.1mm) |
| WS16F16-SS |
316 Stainless Steel |
Female NPTF |
2"- 11-1/2 |
2" |
7.05" (179.1mm) |
| WS16OF16 |
Steel |
Female NPTF |
2-1/2"- 12 |
2" |
7.05" (179.1mm) |
DQC WS-BOP Series High Pressure Wingstyle Female Plug
Product Information
Select a Product
Part Number Material Thread Size Body Size Length
|
