DIXON W-系列 液压接头 W-Series Hydraulic Couplings
Dixon Quick Couplings W-SERIES
Dixon快速接头
W-Series Wingstyle Interchange
W-系列 翼形 互换部件
DIXON W-系列 液压快速接头 W-Series Hydraulic Couplings产品技术资料下载
Dixon Quick Couplings W-SERIES Wingstyle Hydraulic Couplings
产品选项
Hex-nut threaded sleeve
内六角螺纹套管
配有法兰 (对应半截式软管接头)
Brass dust caps & plugs c/w SS bead chain
铜制防尘帽&堵盖 C/W SS 珠链
Size: 3/4” to 1 1/2”
尺寸 3/4” 至 11/2”
材质Body Materials:
Brass body with steel wing nut
铜制主体配钢制翼形螺母
密封件选项Seal Options:
Nitrile (Buna-N) seals standard (-40°C - + 121°C)
丁腈橡胶标准温度范围为-40°C至+121°C
W-Series Hydraulic Couplings PDF Catalog
互换Interchange:
Parker 6100 Series, Aeroquip 5100 Series, Faster FB-Series, Snap-Tite 78 Series
Parker 6100 系列, Aeroquip 5100系列, Faster FB-系列, Snap-Tite 78系列
市场&应用Markets & Uses:
1、石油平台(定向钻孔，夹钳和液压回路)Oil platforms (Drill Pipe Rig, Tongs & hydraulic supply lines)
2、建筑施工设备(液压清扫设备，辅助供电和排水/便携泵系统)Construction equipment (Hydraulic sweepers, auxilary supply lines and dewatering/portable pump systems)
3、运输 (自倾车辆, 厢式货车和半挂车) Mobile transport ( dump trailer, walking floow and roll off trailers)
4、救援设备Rescue equipment
特点:
External connected ‘O’ ring indicator
外部连接O形圈标识
New 1“ steel body added to range
新增加1” 钢制主体部件
Coupler valve sleeve constructed of brass for reliable non-seize performance
铜制接头阀门套管为所有尺寸部件提供可靠性能
Flanged bonded coupler valve - prolongs coupling life
带法兰接头阀门提高部件使用寿命
3/4” & 1” couplings have PTFE back-up ring on valve sleeve to extend service life
3/4” & 1” 在接头阀门套管上配有聚四氟乙烯 支持环以提高部件使用寿命
3/4” & 11/2” nipple valve seal is bonded to the valve face to improve seal integrity & prolong
service life.
3/4” & 11/2” 软管接头阀门密封件与阀门表面粘合以改善密封完整性，提高使用寿命
W-系列 液压接头 W-Series Hydraulic Couplings
W-SERIES
互换Interchange Data:
- Aeroquip 5100-Series, Parker 6100-Series
- Snap-Tite 78-Series, Faster Series-FB,Safeway S51-Series
- Aeroquip 5100-系列, Parker 6100-系列
- Snap-Tite 78-系列, Faster系列-FB,Safeway S51-系列
材质:
- Machined components are manufactured using solid steel and brass bar stock.
- Stainless steel retaining rings, and springs maximize corrosion resistance and extend service life.
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Rugged steel cast wing nut for threaded connect and disconnect operation.
- For steel models, coupler valve sleeve and nipple valve are constructed of brass.
- 部件为脱氧实心钢或由铜棒料机加工制成。
- 不锈钢滚珠、定位环和制动弹簧均为不锈钢以确保最大程度的防锈，延长使用寿命。
- 钢制部件电镀使用符合ROHS的三价铬
- 高强度钢制翼型螺母外壳利用螺纹实现连接和断开操作。
- 钢制模具、接头阀门套管和软管接头阀门均为铜制。

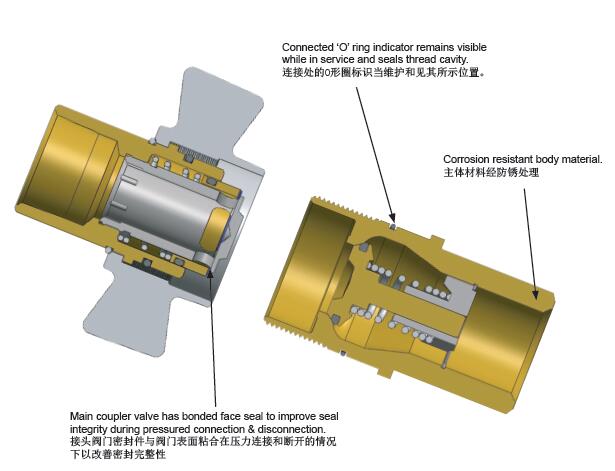

Seal Components:
密封件
- 标配腈（丁钠橡胶）密封件，温度范围为-40°F 至 +250°F (-40°C至+121°C)
- 3/4” 和 1”接头其套管配有聚四氟乙烯支撑环以提高其使用寿命。
- 主接头阀门其密封件为粘合型，以提增压条件下连接和断开操作是阀门的密闭性。
- 3/4” 和 1 1/2”软管接头阀门其密封件为粘合型，以提高其密封性，并延长其使用寿命。
- 堵盖配有外部O形圈连接时，保证其连接的完整性并起到防污作用。
- 接头主体的多重O形圈使得软管接头实现二次密封。
尽管翼型接头可以在压力的情况下连接和断开，仍建议在连接的情况下暂时切断液压源以保证操作者的安全。如果不可能将回路中的液压源切断，一旦在接头连接过程中应用液压源，操作者必须清楚其外部环境以保证液压附件或工具不会对其造成危险。W系列接头不建议用于额定压力下的连续性液压脉冲应用。

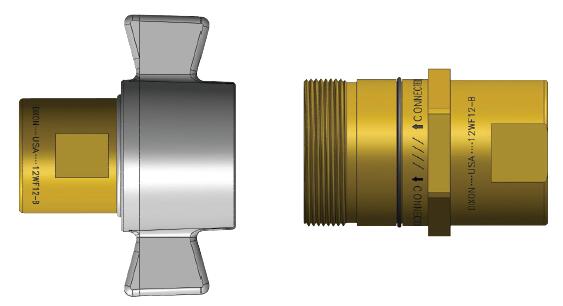

DQC W-Series Wingstyle Interchange Female Coupler
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| 2WF1-B |
Brass |
Female NPTF |
1/8"-27 |
1/4" |
2" (50.8 mm) |
| 3WF2-B |
Brass |
Female NPTF |
1/4"-18 |
3/8" |
2.33" (59.2 mm) |
| 3WF3-B |
Brass |
Female NPTF |
3/8"-18 |
3/8" |
2.33" (59.2 mm) |
| 6WBF4-B |
Brass |
Female BSPP |
1/2"-14 |
3/4" |
2.73" (69.3 mm) |
| 6WBF6-B |
Brass |
Female BSPP |
3/4"-14 |
3/4" |
2.73" (69.3 mm) |
| 6WF4-B |
Brass |
Female NPTF |
1/2"-14 |
3/4" |
2.73" (69.3 mm) |
| 6WF6-B |
Brass |
Female NPTF |
3/4"-14 |
3/4" |
2.73" (69.3 mm) |
| 8WBF8-B |
Brass |
Female BSPP |
1"-11 |
1" |
3.33" (84.6 mm) |
| 8WF8 |
Steel |
Female NPTF |
1"- 11-1/2 |
1" |
3.33" (84.6 mm) |
| 8WF8-B |
Brass |
Female NPTF |
1"- 11-1/2 |
1" |
3.33" (84.6 mm) |
| 10WBF10-B |
Brass |
Female BSPP |
1-1/4"-11 |
1-1/4" |
3.64" (92.5 mm) |
| 10WF10-B |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
3.64" (92.5 mm) |
| 12WBF12-B |
Brass |
Female BSPP |
1-1/2"-11 |
1-1/2" |
4.08" (103.6 mm) |
| 12WF12-B |
Brass |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
3.67" (93.2mm) |
DQC W-Series Wingstyle Interchange Hex-Nut Female Coupler
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| 2WF1-B-HN |
Brass |
Female NPTF |
1/8" |
1/4" |
2.00" (50.8 mm) |
| 3WF2-B-HN |
Brass |
Female NPTF |
1/4" |
3/8" |
2.33" (59.18 mm) |
| 3WF3-B-HN |
Brass |
Female NPTF |
3/8" |
3/8" |
2.33" (59.18 mm) |
| 6WBF4-B-HN |
Brass |
Female BSPP |
1/2"-14 |
3/4" |
2.73" (69.3 mm) |
| 6WBF6-B-HN |
Brass |
Female BSPP |
3/4"-14 |
3/4" |
2.73" (69.3 mm) |
| 6WF4-B-HN |
Brass |
Female NPTF |
1/2"-14 |
3/4" |
2.73" (69.3 mm) |
| 6WF6-B-HN |
Brass |
Female NPTF |
3/4"-14 |
3/4" |
2.73" (69.3 mm) |
| 8WBF8-B-HN |
Brass |
Female BSPP |
1"-11 |
1" |
3.33" (84.6 mm) |
| 8WF8-B-HN |
Brass |
Female NPTF |
1"- 11-1/2 |
1" |
3.33" (84.6 mm) |
| 8WF8-HN |
Steel |
Female NPTF |
1"- 11-1/2 |
1" |
3.33" (84.6 mm) |
| 10WBF10-B-HN |
Brass |
Female BSPP |
1-1/4"-11 |
1-1/4" |
3.64" (92.5 mm) |
| 10WF10-B-HN |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
3.64" (92.5 mm) |
| 12WBF12-B-HN |
Brass |
Female BSPP |
1-1/2"-11 |
1-1/2" |
3.67" (93.2 mm) |
| 12WF12-B-HN |
Brass |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
3.67" (93.2 mm) |
DQC W-Series Wingstyle Interchange Female Plug
Select a Product
Part Number Material Thread Thread Size Body Size Length
Part Number Material Thread Thread Size Body Size Length
| W2F1-B |
Brass |
Female NPTF |
1/8"-27 |
1/4" |
1.88" (47.8 mm) |
| W3F2-B |
Brass |
Female NPTF |
1/4"-18 |
3/8" |
2.30" (58.4 mm) |
| W3F3-B |
Brass |
Female NPTF |
3/8"-18 |
3/8" |
2.4" (61 mm) |
| W6BF4-B |
Brass |
Female BSPP |
1/2"-14 |
3/4" |
2.85" (72.4 mm) |
| W6BF6-B |
Brass |
Female BSPP |
3/4"-14 |
3/4" |
2.85" (72.4 mm) |
| W6F4-B |
Brass |
Female NPTF |
1/2"-14 |
3/4" |
2.85" (72.4 mm) |
| W6F6-B |
Brass |
Female NPTF |
3/4"-14 |
3/4" |
2.85" (72.4 mm) |
| W8BF8-B |
Brass |
Female BSPP |
1"-11 |
1" |
3.15" (80.0 mm) |
| W8F8 |
Steel |
Female NPTF |
1"- 11-1/2 |
1" |
3.15" (80.0 mm) |
| W8F8-B |
Brass |
Female NPTF |
1"- 11-1/2 |
1" |
3.15" (80.0 mm) |
| W10BF10-B |
Brass |
Female BSPP |
1-1/4"-11 |
1-1/4" |
3.39" (86.1 mm) |
| W10F10-B |
Brass |
Female NPTF |
1-1/4"- 11-1/2 |
1-1/4" |
3.39" (86.1 mm) |
| W12BF12-B |
Brass |
Female BSPP |
1-1/2"-11 |
1-1/2" |
3.74" (95 mm) |
| W12F12-B |
Brass |
Female NPTF |
1-1/2"- 11-1/2 |
1-1/2" |
3.74" (95 mm) |
DQC W-Series Wingstyle Interchange Dust Cap
Product Information
Material: Steel
Select a Product
Part Number
Body Size
W2DC 1/4"
W3DC 3/8"
W6DC 3/4"
W8DC 1"
W10DC 1-1/4"
W12DC 1-1/2"
DQC W-Series Wingstyle Interchange Dust Plug
Product Information
Material: Steel
Select a Product
Part Number
Body Size
2WDP 1/4"
3WDP 3/8"
6WDP 3/4"
8WDP 1"
10WDP 1-1/4"
12WDP 1-1/2"
|
