Sendx倾角传感器通过感知地球加速度在其测量轴上的分量大小，对载体倾斜角度的反应，产生相应变化的电信号，从而测量出物体角度信息。倾角传感器有较稳定的零位置，可以准确的测量绝对校对（相对零位），避免较大程度误差。产品在需要做角度测量、零位调整、水平调整和倾角姿态记录的行业有广泛的应用。Sendx的倾角传感器由微机械加速度计传感器、温度传感器、A/D转换器、微处理器和存储器等组成。产品设计紧凑，体积小,能够在-40~100℃的工作范围内稳定的输出信号。测量的角度范围高可达±120°，高分辨率可达到0.001°，输出方式有RS485、CANOpen、Modbus、Profibus和各种模拟方式，可以便利地与市场主流的测量和控制装置连接 -- 西安嘉岳自动化技术有限公司 | 西安嘉岳 | 西安嘉岳公司产品代理sendx倾角传感器。
Sendx tilt sensor products measures the target object's angle information by the changes of electrical signals which are triggered by the acceleration(due to gravity) on the measurement axis. The tilt sensor has stable zero position, which can be used to calibrate the tilt information(relative to zero) of the target. Sendx tilt sensor products have a wide range of applications in angle measurement, the zero position adjustment, horizontal adjustment and angle posture recording industry.
Sendx tilt sensor consists of MEMS accelerometer sensor, temperature sensor, A/D converter, microprocessor and memory. The products have compact design and can be used in the -40~100 ℃ temperature range with very stable output signals. The range ability of the product can reach up to ± 120°,the highest resolution can reach up to 0.001°.We have output signals for choices, such as RS485, CANOpen, Modbus, Profibus and various analogue signals. The products are compatible with most of the measurement of control devices in the market.
|
|

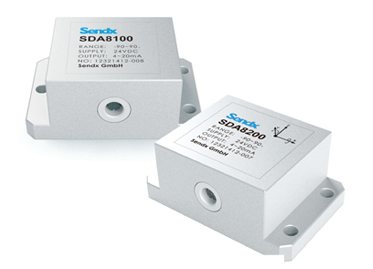

德国斯德克Sendx TYPE：SDA8100倾角传感器
- 角度范围：
0~±10°; ±20°; ±30°; ±40°; ±50°; ±60°…±120°
- 输出信号：
4 ~ 20mA; 0 ~ 5Vdc; 0.5 ~ 4.5Vdc; RS485;
CANOpen; Modbus; Profibus
- 综合精度：0.1%F.S; 0.25%F.S; 0.50%F.S
应用于航空、高速列车、工程机械和船舶等领域
|
德国斯德克Sendx TYPE：SDA8200倾角传感器
- 角度范围：
0~±10°; ±20°; ±30°; ±40°; ±50°; ±60°…±120°
- 输出信号：
4 ~ 20mA; 0 ~ 5Vdc; 0.5 ~ 4.5Vdc; RS485;
CANOpen; Modbus; Profibus
- 综合精度：0.1%F.S; 0.25%F.S; 0.50%F.S
应用于航空、高速列车、工程机械和船舶等领域 |
德国斯德克Sendx是西安嘉岳自动化技术有限公司代理的工业传感器品牌之一，所有倾角传感器产品均为原装正品，Sendx原厂质量保证。如果您对斯德克Sendx倾角传感器系列产品的价格、厂家、型号、图片以及产品选型有任何疑问，欢迎[联系我们]获取有关德国斯德克Sendx倾角传感器系列产品的新信息。
