CPC Tentube coupling快速接头 Tentube使用简单的滑锁可以连接和断开多十条管线
CPC快速接头 Tentube快速接头

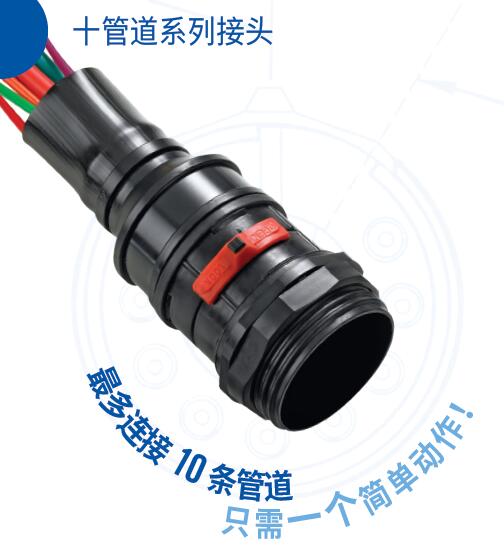

Tentube接头为多十条单独的流体管线提供了一种使用方便的快速接头。板式或管线的安装构型,配合装备有截止阀门的内接头母座,大程度地提高了设计灵活性。Tentube使用简单的滑锁可以连接和断开多十条管线。接头母座和插嘴通过键槽配合,这样可以保证管道的方位正确。使用三种正常尺寸的聚甲醛或聚砜插嘴可以承接不同流体和管道规格的管。The Tentube coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch. Tubing orientation is ensured by keying the coupling body and insert. Different fluids and tubing sizes can be accommodated by using acetal or polypropylene inserts in three popular sizes.

CPC Tentube coupling PDF Catalog
CPC 十管路接头 十管十连接头技术资料下载





CPC的十管十连除了有TwinTube双管道系列和Sixtube六管道系列之外,还有牛哄哄的Tentube接头。Tentube为多十条单独的流体管线提供使用方便的快速连接方案。板式或管线的安装构型配合装备有截止阀门的内接头母座,大程度地提高了设计灵活性,并通过简单的滑锁可以连接和断开多十条管线。 使用CPC的多管道连接器,可以轻松地连接二条、六条甚至十条独立的流体管道。这些高效的解决方案可确保正确的管道流向,并配有多种端头、材料和指锁选项,大限度地提高您的设计灵活性。

十管十连特点

多可连接十条线路
单独流道
插头部分通过键槽插接到接头母
座上
聚甲醛或聚丙烯插嘴
优点
操作快速、高效
一个接头内并存压力和/或真空部分
可保证线路方位正确
高设计灵活性
规格
压力:真空至100psi,6.9bar(每条管线)
温度:
聚甲醛配件插嘴:-40°F至180°F(-40°C至82°C)
聚丙烯配件插嘴:30°F至180°F(0°C至82°C)
材料:
主要元件:尼龙
阀:聚甲醛
阀簧:316不锈钢
配件插嘴:聚甲醛或聚丙烯
O型圈:聚甲醛配合丁腈橡胶,聚丙烯配合三
元乙丙橡胶
穿板式转接头:聚甲醛
管套:聚甲醛
颜色:主要元件:黑色,红色锁定闩
管涂层:黑色
穿板式转接头:黑色
管道尺寸:1/16"至1/8"ID,1.6mm至3.2mmID

Tentube,CPC接头,美国CPC



Products Bodies

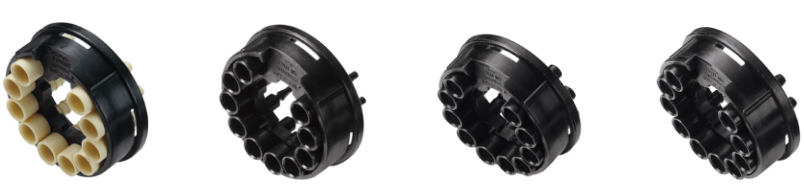

TFB10
Tentube Coupling Body Without Fitting Inserts
TFB1001
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
TFB100112
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
TFB1002
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
TFB100212
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
TFB10M3
Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
TFBD1001
Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
TFBD1002
Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
TFBD10M3
Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies

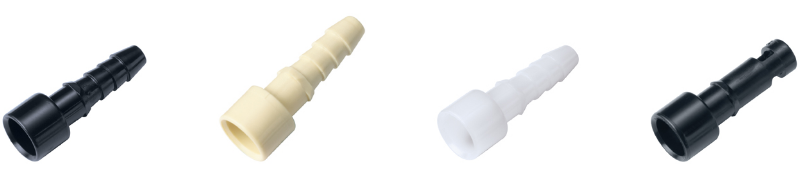

TFF01
1/16 Hose Barb Non-Valved Fitting Body
TFF0112
1/16 Hose Barb Non-Valved Fitting Body
TFF01MWHT
1/16 Hose Barb Non-Valved Fitting Body
TFF02
1/8 Hose Barb Non-Valved Fitting Body
TFF0212
1/8 Hose Barb Non-Valved Fitting Body
TFF02MWHT
1/8 Hose Barb Non-Valved Fitting Body
TFFD01
1/16 Hose Barb Valved Fitting Body
TFFD01MWHT
1/16 Hose Barb Valved Fitting Body
TFFD02
1/8 Hose Barb Valved Fitting Body
TFFD02MWHT
1/8 Hose Barb Valved Fitting Body
TFFDM3
3mm Hose Barb Valved Fitting Body
TFFDM3MWHT
3mm Hose Barb Valved Fitting Body
3mm Hose Barb Non-Valved Fitting Body
TFFM3
3mm Hose Barb Non-Valved Fitting Body
TFFM3MWHT
M3 Hose Barb Non-Valved Fitting Body
Fittings, Valves and Accessories

Tentube Panel Mount Adapter and Nut
TPM10


TS10
Tentube Tube Shroud




Inserts

TMB10
Tentube Coupling Insert Without Fitting Inserts
TMB1001
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
TMB100112
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
TMB1002
Non-Valved Coupling Insert with 1/8 Hose Barb With Male Fitting Inserts
TMB100212
Non-Valved Coupling Insert with 1/8 Hose Barb With Male Fitting Inserts
TMB10M3
Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
TMF01
1/16 Hose Barb Non-Valved Fitting Insert
TMF0112
1/16 Hose Barb Non-Valved Fitting Insert
TMF01MWHT
1/16 Hose Barb Non-Valved Fitting Insert
TMF02
1/8 Hose Barb Non-Valved Fitting Insert
TMF0212
1/8 Hose Barb Non-Valved Fitting Insert
TMF02MWHT
1/8 Hose Barb Non-Valved Fitting Insert

TMFM3
3mm Hose Barb Non-Valved Fitting Insert
TMFM3MWHT
M3 Hose Barb Non-Valved Fitting Insert
TT1001
1/16 Hose Barb Non-Valved Tentube Assembly




Tentube Coupling Body Without Fitting Inserts
TFB10
Tentube Coupling Body Without Fitting Inserts


Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
TFB1001
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies


Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
TFB100112
Non-Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies


Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
TFB1002
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies

Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
TFB100212
Non-Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies


Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
TFB10M3
Non-Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies


Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies
TFBD1001
Valved Coupling Body with 1/16 Hose Barb Female Fitting Bodies


Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies
TFBD1002
Valved Coupling Body with 1/8 Hose Barb Female Fitting Bodies

Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies
TFBD10M3
Valved Coupling Body with 3mm Hose Barb Female Fitting Bodies


1/16 Hose Barb Non-Valved Fitting Body
TFF01
1/16 Hose Barb Non-Valved Fitting Body


1/16 Hose Barb Non-Valved Fitting Body
TFF0112
1/16 Hose Barb Non-Valved Fitting Body


1/16 Hose Barb Non-Valved Fitting Body
TFF01MWHT
1/16 Hose Barb Non-Valved Fitting Body

1/8 Hose Barb Non-Valved Fitting Body
TFF02
1/8 Hose Barb Non-Valved Fitting Body


1/8 Hose Barb Non-Valved Fitting Body
TFF0212
1/8 Hose Barb Non-Valved Fitting Body


1/8 Hose Barb Non-Valved Fitting Body
TFF02MWHT
1/8 Hose Barb Non-Valved Fitting Body


1/16 Hose Barb Valved Fitting Body
TFFD01
1/16 Hose Barb Valved Fitting Body

1/16 Hose Barb Valved Fitting Body
TFFD01MWHT
1/16 Hose Barb Valved Fitting Body


1/8 Hose Barb Valved Fitting Body
TFFD02
1/8 Hose Barb Valved Fitting Body


1/8 Hose Barb Valved Fitting Body
TFFD02MWHT
1/8 Hose Barb Valved Fitting Body


3mm Hose Barb Valved Fitting Body
TFFDM3
3mm Hose Barb Valved Fitting Body

3mm Hose Barb Valved Fitting Body
TFFDM3MWHT
3mm Hose Barb Valved Fitting Body


3mm Hose Barb Non-Valved Fitting Body
TFFM3
3mm Hose Barb Non-Valved Fitting Body


M3 Hose Barb Non-Valved Fitting Body
TFFM3MWHT
M3 Hose Barb Non-Valved Fitting Body

Fittings, Valves and Accessories

Tentube Panel Mount Adapter and Nut
TPM10
Tentube Panel Mount Adapter and Nut


Tentube Tube Shroud
TS10
Tentube Tube Shroud

Inserts

Tentube Coupling Insert Without Fitting Inserts
TMB10
Tentube Coupling Insert Without Fitting Inserts


Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
TMB1001
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts


Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts
TMB100112
Non-Valved Coupling Insert with 1/16 Hose Barb Male Fitting Inserts


Non-Valved Coupling Insert with 1/8 Hose Barb With Male Fitting Inserts
TMB1002
Non-Valved Coupling Insert with 1/8 Hose Barb With Male Fitting Inserts

Non-Valved Coupling Insert with 1/8 Hose Barb With Male Fitting Inserts
TMB100212
Non-Valved Coupling Insert with 1/8 Hose Barb With Male Fitting Inserts


Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts
TMB10M3
Non-Valved Coupling Insert with 3mm Hose Barb Male Fitting Inserts


1/16 Hose Barb Non-Valved Fitting Insert
TMF01
1/16 Hose Barb Non-Valved Fitting Insert


1/16 Hose Barb Non-Valved Fitting Insert
TMF0112
1/16 Hose Barb Non-Valved Fitting Insert

1/16 Hose Barb Non-Valved Fitting Insert
TMF01MWHT
1/16 Hose Barb Non-Valved Fitting Insert


1/8 Hose Barb Non-Valved Fitting Insert
TMF02
1/8 Hose Barb Non-Valved Fitting Insert


1/8 Hose Barb Non-Valved Fitting Insert
TMF0212
1/8 Hose Barb Non-Valved Fitting Insert


1/8 Hose Barb Non-Valved Fitting Insert
TMF02MWHT
1/8 Hose Barb Non-Valved Fitting Insert

3mm Hose Barb Non-Valved Fitting Insert
TMFM3
3mm Hose Barb Non-Valved Fitting Insert


M3 Hose Barb Non-Valved Fitting Insert
TMFM3MWHT
M3 Hose Barb Non-Valved Fitting Insert

Other

1/16 Hose Barb Non-Valved Tentube Assembly
TT1001
1/16 Hose Barb Non-Valved Tentube Assembly


Products
1/16 Hose Barb Non-Valved Tentube Assembly
TT100112
1/16 Hose Barb Non-Valved Tentube Assembly


1/8 Hose Barb Non-Valved Tentube Assembly
TT1002
1/8 Hose Barb Non-Valved Tentube Assembly


1/8 Hose Barb Non-Valved Tentube Assembly
TT100212
1/8 Hose Barb Non-Valved Tentube Assembly


3mm Hose Barb Non-Valved Tentube Assembly
TT10M3
3mm Hose Barb Non-Valved Tentube Assembly

1/16 Hose Barb Valved Tentube Assembly
TTD1001
1/16 Hose Barb Valved Tentube Assembly


1/8 Hose Barb Valved Tentube Assembly
TTD1002
1/8 Hose Barb Valved Tentube Assembly


3mm Hose Barb Valved Tentube Assembly
TTD10M3
3mm Hose Barb Valved Tentube Assembly
