美国CPC LQ6系列液体冷却无泄漏快速接头
CPC LQ6 Series Couplings for liquid cooling applications
数据中心及计算机服务器液体冷却用高效快速插拔接头
美国CPC塑料快速接头 通用接头 LQ6系列
LQ6系列
LQ6系列接头特别为液体冷却应用设计,使用了已申请专利的阀门新技术,开创了这类专用接头先河。保证封闭的系统设计提供超可靠及无滴漏的连接,可反复连接和断开, 更能够承受长期使用。CPC 的速接头配备自动无泄漏截止阀和整体终端,保证安全﹑可靠和易于使用。理想的液体冷却应用包括电子芯片制造和测试设备、服务器、pcg桌面游戏、数据中心、激光冷却,以及需要冷却的医疗设备,如MRI系统、电力系统、高端医疗设备。
Designed specifically for liquid cooling applications, the LQ6 Series Couplings are the first of their kind, utilizing new patent-pending liquid cooling valve technology. The guaranteed closed-system design provides ultra-reliable, dripless connections and disconnections able to withstand long-term, repeated use. Dripless quick disconnect couplings from CPC feature automatic non-spill shutoff valves and integral terminations for safety, ease-of-use and reliability. Ideal liquid cooling applications include electronics chip fabrication and test equipment, servers, PC/desktop gaming, data centers, laser cooling; and in medical devices that need to be cooled such as MRI systems, power systems, high-end medical machines.
CPC LQ6系列液体冷却无泄漏快速接头
CPC LQ6 Series Couplings for liquid cooling applications
CPC Liquid cooling for electronic QDs from CPC get even cooler Video
优势
无溢漏设计 在压力下断开也无溢漏
无溢漏的液体冷却用连接器保证安全﹑可靠﹑无滴漏的连接。
连接后提供冗余的密封 额外防止泄漏
彩色编码 为冷却管路提供即时视觉上的辨别
坚固耐用 能经受长期﹑反复的使用
旋转允许管道移动 消除管道扭结
在连接状态下密封圈没有摩擦 即使长时间处于连接状态,但在断开连接后不会有滴漏发生,安全可靠
材料
主外壳组件 镀铬铜
阀门和拇指按锁 聚砜
外部弹簧 302不锈钢
密封圈 三元乙丙橡胶
颜色
镀铬铜配冷色调蓝或暖色调红
管道尺寸
3/8" 至 1/2" 管内径, 9.5mm 至 12.7mm管内径
溢出
在0 psi 的压力下,断开连接后少于0.05毫升

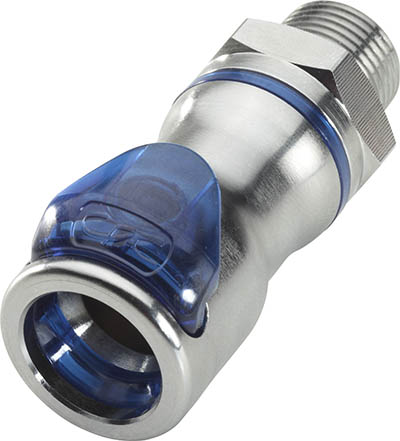

3/8 NPT带阀冷却液耦合体,COOL BLUE
零件编号:LQ6D10006BLU
材质:铜
材料表面处理:镀铬
压力范围:真空至120磅,8.3条
颜色:铬与酷蓝
温度。范围:0°F至240°F(-17℃至115℃)
安装选项:螺纹
密封选择:EPDM
气门弹簧:302不锈钢
阀门选项:瓣
溢出:<每断开额定0 PSI0.05毫升; <0.125立方厘米
应用:美国CPC接头,CPC接头,CPC快速接头,刀片服务器
产品Bodies母头
|
|
|
|
LQ6D10006BLU
3/8 NPT Valved Liquid Cooling Coupling Body, Cool Blue |
LQ6D10006RED
3/8 NPT Valved Liquid Cooling Coupling Body, Warm Red |
LQ6D13008BLU
3/8 ID x 1/2 OD PTF Valved Liquid Cooling Coupling Body, Cool Blue |
LQ6D13008RED
3/8 ID x 1/2 OD PTF Valved In-Line Liquid Cooling Coupling Body, Warm Red |
|
|
|
|
LQ6D17006BLU
3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue |

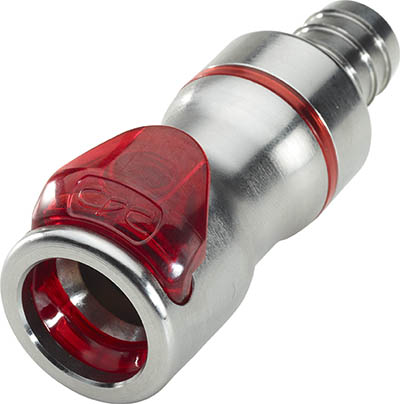

LQ6D17006RED
3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red |
LQ6D17008BLU
1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue |
LQ6D17008RED
1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red |
|
|
|
|
LQ6D30006BLU
3/8 SAE Valved Liquid Cooling Coupling Body, Cool Blue |
LQ6D30006RED
3/8 SAE Valved Liquid Cooling Coupling Body, Warm Red |
LQ6D30008BLU
1/2 SAE Valved Liquid Cooling Coupling Body, Cool Blue |
LQ6D30008RED
1/2 SAE Valved Liquid Cooling Coupling Body, Warm Red |
Inserts公头
|
|
|
|
LQ6D20008BLU
3/8 ID x 1/2 OD PTF Valved In-Line Liquid Cooling Coupling Insert, Cool Blue |
LQ6D20008RED
3/8 ID x 1/2 OD PTF Valved In-Line Liquid Cooling Coupling Insert, Warm Red
|
LQ6D22006BLU
3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue |
LQ6D22006RED
3/8 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red |
|
|
|
|
LQ6D22008BLU
1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue |
LQ6D22008RED
1/2 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red |
LQ6D24006BLU
3/8 NPT Valved Liquid Cooling Coupling Insert, Cool Blue |
LQ6D24006RED
3/8 NPT Valved Liquid Cooling Coupling Insert, Warm Red |
|
|
|
|
LQ6D46006BLU
3/8 SAE Valved Liquid Cooling Coupling Insert, Cool Blue
|
LQ6D46006RED
3/8 SAE Valved Liquid Cooling Coupling Insert, Warm Red |
LQ6D46008BLU
1/2 SAE Valved Liquid Cooling Coupling Insert, Cool Blue |
LQ6D46008RED
1/2 SAE Valved Liquid Cooling Coupling Insert, Warm Red |
数据中心及计算机服务器液体冷却用高效快速插拔接头
如何以高效、有效且安全的冷却系统消除服务器散发的废热,在数据中心基础设施设计过程中越来越引起人们的关注。多数数据中心设施都采用大型空调系统和大量的循环空气消除废热。但是以制冷空气冷却服务器的方法成本高、效率低。很多时候,电费是数据中心的大运行开支。此外,计算机服务器运行更快,数据中心机架密度更高,想通过气流实现有效冷却变得不太现实。
因此,服务器制造商们转而采用液体冷却系统,试图以更高效的方式消除热量。这一理念其实并不新奇。早在20世纪60年代中期,第一台超级计算机就已经采用液体冷却防止设备发生自毁。随着计算机向着更高效的方向发展,并且所产生的废热越来越少,空气冷却开始变得实用起来。然而,当今的微型处理芯片体积越来越小、功能达到了前所未有的强大,但与此同时所产生的热量也越来越多。随着CPU时钟频率和机架功率密度的提高,制造商们又再次选择以液体冷却方式消除余热。另外,水性循环液体的去热效率比气流高30倍,因此采用液体冷却能够大大降低运行成本。尽管液体冷却的技术仍然在发展,如今的液体冷却应用正经历逐步调整,以适应数据中心运行的需要,并且逐步模块化,以便于进行维护,实现和空气冷却系统一样简便,并防止在服务器更换时产生滴漏、泄漏或溢出。
服务器用典型液体冷却系统包括一块板式热交换器,直接安装在服务器微型处理器、CPU或者其他热量集中区域。热交换器可以将CPU散发的热量传输到一般由水和乙二醇混合液组成的循环液体上。温度较低或者处于室温的液体向板式热交换器供应,吸收热量后的液体则通过挠性管运出。吸收热量后的液体终将流向中央液体-空气或液体-液体热交换器,该热交换器可配有冷却器系统,有些型号也可能没有冷却器系统。
关键部件
液体冷却系统有一样关键部件——快速插拔接头。这种快速插拔接头将挠性管连接起来,挠性管的作用是将冷却液输送至各个服务器,并回收到服务器机架上的中央歧管,服务器机架终和中央液体-空气或液体-液体热交换器相连。当需要维护或更换服务器时,接头应易于断开,并且不会有冷却液滴落或溢到敏感电子器件上。应在选择服务器或其他高端计算机液体冷却用快速插拔接头时,应采用如下设计和性能,以确保可靠性、便利性和实惠性。
Connectors for liquid-cooling applications
Posted by Mary Gannon on Thursday, November 21, 2013
LQ6 series connectors from Colder Products Co. (CPC), St. Paul, Minn., are designed specifically for liquid cooling applications, featuring a new patent-pending valve technology that helps deliver reliability, security and ease-of-use to cooling applications where a drip-free connection is critical.
Colder-LQ6 ConnectorsTubes“The rugged and robust design of the new LQ6 Series makes it possible for the couplings to withstand long-term use with ultra-reliable protection from drips at disconnect,” says Dennis Downs, specialty industrial business unit manager for Colder. “Although the LQ6 can be connected and disconnected thousands of times, what really makes it different is its reliability in applications with long periods in the connected state.”
LQ6 Series couplings include non-spill shutoff valves that allow disconnection from the cooling line, even under pressure, with no spills or drips. The valve design provides redundant sealing when connected, providing added protection against leaks. With its intuitive, ergonomic thumb latch, the LQ6 provides users an audible click to ensure that a reliable connection has been made. In addition, LQ6 color-coding of chrome with cool blue or warm red provides instant visual difference between cooling lines.
The LQ6 Series couplings are constructed from chrome-plated brass, polysulfone and stainless steel materials that ensure dependable strength and chemical compatibility for a wide range of applications. Designed specifically for cooling applications requiring multiple connect and disconnect cycles, LQ6 Series quick disconnect couplings are available in an assortment of configurations. Ideal liquid cooling applications include electronics chip fabrication and test equipment, servers, PC/desktop gaming, data centers, laser cooling; and in medical devices that need to be cooled such as MRI systems, power systems, high-end medical machines.
