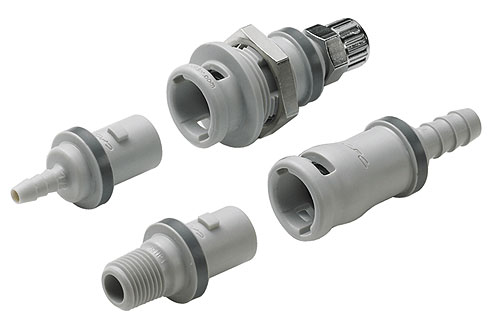

CPC NS212 Series couplings twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves
CPC NS212 Series couplings pdf catalog download



CPC NS212系列接头跟CPC其它无溢漏系列的接头一样,为提供快速、安全、真正无泄漏管线连接而设计。NS212提供了一种快速、旋接式接头,带一体式锁紧装置和双面无泄漏截止阀。NS212 亦具有抗化学性,是许多应用的理想产品。CPC NS212 Series couplings were built on the company’s proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS212 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS212 is also chemically resistant making it ideal for a diverse range of applications.



CPC NS2 SERIES - POLYPROPYLENE QUICK CONNECT/DISCONNECT
NS2 Series non-spill couplings PDF Catalog



NS212 系列接头建立在公司经过验证的防溢阀平台之上,旨在提供快速、安全和几乎无泄漏的流体管路连接。NS212 是一种简单的扭转连接接头,带有集成锁定机构和双面防溢截止阀。NS212 还具有耐化学性,使其成为各种应用的理想选择。NS2 系列防溢流接头可实现快速、安全且几乎无泄漏的流体管路连接。对于印刷和墨水管理、分析仪器、电子冷却和其他应用,快速接头传输大量流体,但它们在物理上占用的空间很小。快速接头使用扭转连接锁定机制。双面无泄漏截止阀增加了安全性和便利性。接头提供软管倒钩端接,可用于管道1/8英寸(3.2 毫米)和 1/4英寸(6.4 毫米)内径。配置包括管螺纹、直插式和面板安装。



特点与优势

特征 好处
高效、无泄漏设计
带压断开,无泄漏
多种密封材料

广泛的化学兼容性,适用于各种应用

扭转连接锁定

简单、无泄漏的紧密连接空间

紧凑的设计

小连接器中的高流量

超低空气夹杂物

最大限度地减少污染物,减少清洗管线的需要





规格和 Cv 值

操作条件(流体输送)

压力: 温度: 流量:
真空至 45 psi, 3.1 bar
32°F 至 120°F(0°C 至 49°C)
Cv~0.45

材料

主要部件和阀门: 气门弹簧: 密封材料:
玻璃填充聚丙烯
316不锈钢
EPDM(FKM/Simriz FFKM 可选)

其他

颜色: 油管尺寸: 溢出: 包含:
灰色带黑色调标准
1/8" 至 1/4" (3.2mm 至 6.4mm)
<0.025 cc 每次断开
每次连接 0.009 cc

CV值

CV ~0.45
Cv 值基于 gpm 和 psi,以及 Ipm 和 bar(显示在括号中)。



功能与效益

FeaturesBenefits
Efficient, non-spill designDisconnect under pressure with no spills
Multiple seal materials
Broad chemical compatibility for diverse applications

Twist-to-connect locking
Easy, non-spill connections in tight

spaces

Compact design
High flow in a small connector

Ultra low air inclusion
Minimizes contaminants, reduces the need to purge lines

产品规格

Pressure:Vacuum to 45 psi, 3.1 bar
Temperature:32° F to 120° F/0° C to 49°C
Flow capacity: Cv~0.45
Spillage:<0.025 cc/disconnect
Inclusion:0.009 cc/connect
Materials:
Main components and valves:Glass-filled polypropylene
Valve spring: 316 stainless steel
Seal material: EPDM (FKM/Simriz FFKM optional)
Color:Gray with black accent standard
Tubing Sizes:1/8" to 1/4" (3.2mm to 6.4mm)

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility
to test the suitability of Colder products in their own application conditions. Use the graphs above as a guide.

Cv值


Cv ~0.45

Legend




NS2 Series non-spill couplings create fast, safe, and virtually leak-free fluid line connections. For printing and ink management, analytical instrumentation, electronic cooling, and other applications, the couplings transfer large amounts of fluid, yet they physically take up little space. The couplings’ use a twist-to-connect locking mechanism.Double-sided non-spill shutoff valves add safety and convenience. The couplings offer hose barb terminations and are available for tubing in 1/8 in. (3.2 mm) and 1/4 in. (6.4 mm) ID. Configurations include pipe thread, in-line and panel mount.

产品Bodies母头

NS2D100212

1/8 NPT Valved Coupling Body

NS2D120412

1/4 PTF Valved Panel Mount Coupling Body

NS2D130412

1/4 PTF Valved In-Line Coupling Body

NS2D160212

1/8 Hose Barb Valved Coupling Body

NS2D160412

1/4 Hose Barb Valved Coupling Body

NS2D170212

1/8 Hose Barb Valved In-Line Coupling Body

NS2D170412

1/4 Hose Barb Valved In-Line Coupling Body



Inserts公头

NS2D200412

1/4 PTF Valved In-Line Coupling Insert

NS2D220212

1/8 Hose Barb Valved In-Line Coupling Insert

NS2D220412

1/4 Hose Barb Valved In-Line Coupling Insert

NS2D240212

1/8 NPT Valved Coupling Insert

NS2D1002121/8" Male NPTBody - ValvedEPDMPolypropylene
NS2D1204121/4" OD Ferruless Poly-TubeBody - Panel Mount - ValvedEPDMPolypropylene
NS2D1304121/4" OD Ferruless Poly-TubeBody - ValvedEPDMPolypropylene
NS2D1602121/8" Hose BarbBody - Panel Mount - ValvedEPDMPolypropylene
NS2D1604121/4" Hose BarbBody - Panel Mount - ValvedEPDMPolypropylene
NS2D1702121/8" Hose BarbBody - ValvedEPDMPolypropylene
NS2D1704121/4" Hose BarbBody - ValvedEPDMPolypropylene
NS2D2004121/4" OD Ferruless Poly-TubeInsert - ValvedEPDMPolypropylene
NS2D2202121/8" Hose BarbInsert - ValvedEPDMPolypropylene
NS2D2204121/4" Hose BarbInsert - ValvedEPDMPolypropylene
NS2D240212 1/8" Male NPT Insert - Valved EPDM Polypropylene





NS2 快速接头在小尺寸、安全和经济的情况下提供经济高效、高流量的流体管路传输

明尼苏达州圣保罗 - 2007 年 1 月 15 日 - Colder Products Company 的新型紧凑型、无溢出快速断开快速接头为用户提供具有快速、安全且几乎无泄漏的流体管路连接。正在申请专利的 NS2 快速接头是印刷和墨水管理、分析仪器、电子冷却和许多其他应用的绝佳选择,可在较小的占地面积内提供高流量的流体传输。

Colder 工业市场业务部经理 Andy Hass 表示:“这款 NS2 系列快速断开接头建立在我们行业领先的防溢阀平台之上,体现了我们对易于使用的高质量接头的承诺和持续投资。”产品公司。“对于需要安全输送流体的应用,NS2 提供了一种简单的扭转连接锁定机构和双面防溢截止阀,以增加安全性和便利性。”

NS2 满足了对更小、更具成本效益的工业快速接头的需求。较小的快速接头可以替代较大的快速接头,为用户提供适用于各种快速接头应用的低成本、节省空间的选择。新的接头还提供非常低的空气夹杂物 - 连接时将空气引入接头 - 最大限度地减少污染物并减少清洗流体管线的需要。

Colder NS2 系列快速断开接头提供软管倒钩端接,可用于内径为 1/8" (3.2mm) 和 1/4" (6.4mm) 的管道。配置包括管螺纹、直插式和面板安装。无箍压缩终端连接到 ?" OD (6.4mm) 和 0.17" ID (4.3mm) 半刚性管。压力范围从真空到 45 psi (3.1 bar),工作温度范围从 32° F (0° C) 到 120° F (49° C)。

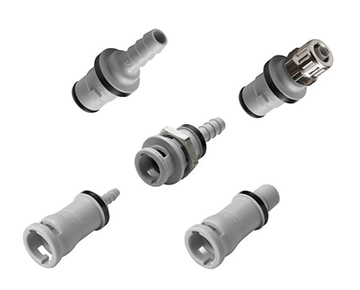

NS2 Series 1/8" Flow Dry Break, Quick Disconnect Coupling, Colder Products Company
# ITEM

NS2D100212 1/8" Male NPT Body - Valved EPDM Polypropylene
NS2D120412 1/4" OD Ferruless Poly-Tube Body - Panel Mount - Valved EPDM Polypropylene
NS2D130412 1/4" OD Ferruless Poly-Tube Body - Valved EPDM Polypropylene
NS2D160212 1/8" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D160412 1/4" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D170212 1/8" Hose Barb Body - Valved EPDM Polypropylene
NS2D170412 1/4" Hose Barb Body - Valved EPDM Polypropylene
NS2D200412 1/4" OD Ferruless Poly-Tube Insert - Valved EPDM Polypropylene
NS2D220212 1/8" Hose Barb Insert - Valved EPDM Polypropylene
NS2D220412 1/4" Hose Barb Insert - Valved EPDM Polypropylene



NS2D100212

1/8 NPT Valved Coupling Body

NS2D120412

1/4 PTF Valved Panel Mount Coupling Body

NS2D130412

1/4 PTF Valved In-Line Coupling Body


NS2D160212

1/8 Hose Barb Valved Coupling Body

NS2D160412

1/4 Hose Barb Valved Coupling Body


NS2D170212

1/8 Hose Barb Valved In-Line Coupling Body

NS2D170412

1/4 Hose Barb Valved In-Line Coupling Body

Inserts

NS2D200412

1/4 PTF Valved In-Line Coupling Insert


NS2D220212

1/8 Hose Barb Valved In-Line Coupling Insert


NS2D220412

1/4 Hose Barb Valved In-Line Coupling Insert


NS2D240212

1/8 NPT Valved Coupling Insert



NS2 Couplings
APRIL 15, 2009 BY COUPLING


The NS2 Series non-spill couplings create fast, safe, and virtually leak-free fluid line connections. For printing and ink management, analytical instrumentation, electronic cooling, and other applications, the couplings transfer large amounts of fluid, yet they physically take up little space. The couplings' use a twist-to-connect locking mechanism.
