CPC - Colder Products Company | Products | 通用连接器 | PLC 系列聚甲醛热塑快速接头

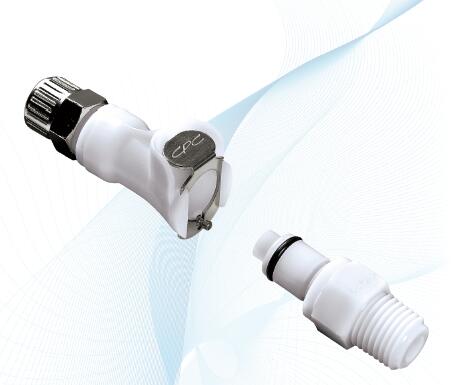

CPC PLC quick disconnect coupling
1/4" 流量 PLC 系列经证明在全世界的应用成千上万，可提供广泛的尺寸和配置选择。PLC接头是用聚甲醛热塑注模而成，可耐受大部分的温和化学溶液。PLC系列单手连接/断开以及整体端头的特点使PLC成为便于使用和生产的首选产品。CPC PLC 系列还可提供RFID（无线射频识别）选项。The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations.CPC PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. These couplings offer the flexibility of multiple configurations and terminations and mate with both LC metal and PLC12 polypropylene couplings. Also available in NSF-listed versions.
CPC - Colder Products Company 通用连接器 | PLC 系列聚甲醛热塑快速接头
CPC PLC quick disconnect coupling
功能与效益
特点 优点
Colder指锁单手连接和断开
整体端头
漏点少，装配时间短，安装快捷
咔哒声音
保证可靠的连接
兼容可与LC和PLC12系列
配用
产品规格 规格
压力：真空至120 psi，8.3 bar
温度：-40°F 至 180°（-40°C 至 82°C）
材料：
主要元件和阀：聚甲醛
指锁按钮：不锈钢
阀簧：316 不锈钢
外簧和销：不锈钢
O 型圈：Buna-N 丁晴橡胶
颜色：天然白色，也可提供其它颜色
管道尺寸：1/4" 至 3/8"内径，6.4mm 至 9.5mm 内径
JG管道规格：管公差：1/4" 外径，+ 0.001/-0.004 | 3/8" 外径，+0.001/-0.004
管类型：塑料管：聚乙烯、尼龙、聚氨酯。对于带JG
端头的软管或薄壁管，建议使用管支架。
金属管：铜管和低碳钢管

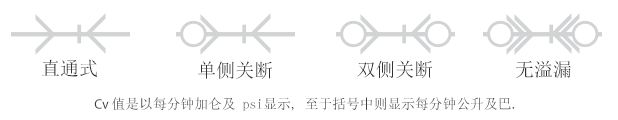

Cv值
Cv ~ 1.40 (20.17) 大
Cv ~ 0.82 (11.82) 大
Cv ~ 0.51 (7.35) 大
Legend产品
PLC 系列产品
 |
|
|
|
PLC10004
1/4 NPT Non-Valved Coupling Body
|
PLC10004BSPT
1/4 BSPT Non-Valved Coupling Body |
PLC10006
3/8 NPT Non-Valved Coupling Body |
PLC10006BSPT
3/8 BSPT Non-Valved Coupling Body |
 |
 |
|
 |
PLC11004
1/4 JG Non-Valved Panel Mount Coupling Body |
PLC12004
1/4 PTF Non-Valved Panel Mount Coupling Body |
PLC12006
3/8 PTF Non-Valved Panel Mount Coupling Body |
PLC120M10
10mm PTF Non-Valved Panel Mount Coupling Body |
 |
 |
 |
 |
PLC120M8
8mm PTF Non-Valved Panel Mount Coupling Body |
PLC13004
1/4 PTF Non-Valved In-Line Coupling Body |
PLC13006
3/8 PTF Non-Valved In-Line Coupling Body |
PLC130M10
10mm PTF Non-Valved In-Line Coupling Body |
 |
 |
 |
 |
PLC130M8
8mm PTF Non-Valved In-Line Coupling Body |
PLC14004
1/4 JG Non-Valved In-Line Coupling Body |
PLC14006
3/8 JG Non-Valved In-Line Coupling Body |
PLC16004
1/4 Hose Barb Non-Valved Panel Mount Coupling Body
|
 |
 |
 |
 |
PLC16005
5/16 Hose Barb Non-Valved Panel Mount Coupling Body |
PLC16006
3/8 Hose Barb Non-Valved Panel Mount Coupling Body |
PLC17004
1/4 Hose Barb Non-Valved In-Line Coupling Body
|
PLC17005
5/16 Hose Barb Non-Valved In-Line Coupling Body |
 |
 |
 |
|
PLC17006
3/8 Hose Barb Non-Valved In-Line Coupling Body |
PLC300
Coupling Body Plug |
PLC310
Coupling Body Plug |
PLCD10004
1/4 NPT Valved Coupling Body |
|
 |
 |
|
PLCD10004BSPT
1/4 BSPT Valved Coupling Body |
PLCD10006
3/8 NPT Valved Coupling Body |
PLCD10006BSPT
3/8 BSPT Valved Coupling Body |
PLCD11004
1/4 JG Valved Panel Mount Coupling Body |
|
 |
|
|
PLCD12004
1/4 PTF Valved Panel Mount Coupling Body
|
PLCD12006
3/8 PTF Valved Panel Mount Coupling Body |
PLCD120M10
10mm PTF Valved Panel Mount Coupling Body |
PLCD120M8
8mm PTF Valved Panel Mount Coupling Body |
|
 |
 |
 |
PLCD13004
1/4 PTF Valved In-Line Coupling Body |
PLCD13006
3/8 PTF Valved In-Line Coupling Body |
PLCD130M10
10mm PTF Valved In-Line Coupling Body |
PLCD130M8
8mm PTF Valved In-Line Coupling Body |
|
 |
|
 |
PLCD14004
1/4 JG Valved In-Line Coupling Body |
PLCD14006
3/8 JG Valved In-Line Coupling Body |
PLCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body |
PLCD16005
5/16 Hose Barb Valved Panel Mount Coupling Body |
|
 |
 |
 |
PLCD16006
3/8 Hose Barb Valved Panel Mount Coupling Body |
PLCD17004
1/4 Hose Barb Valved In-Line Coupling Body |
PLCD17005
5/16 Hose Barb Valved In-Line Coupling Body |
PLCD17006
3/8 Hose Barb Valved In-Line Coupling Body |
Inserts公头插头体
 |
 |
 |
 |
PLC20004
1/4 PTF Non-Valved In-Line Coupling Insert |
PLC20006
3/8 PTF Non-Valved In-Line Coupling Insert |
PLC200M10
10mm PTF Non-Valved In-Line Coupling Insert |
PLC200M8
8mm PTF Non-Valved In-Line Coupling Insert |
 |
 |
|
 |
PLC21006
3/8 PTF Non-Valved Elbow Coupling Insert |
PLC22004
1/4 Hose Barb Non-Valved In-Line Coupling Insert |
PLC22005
5/16 Hose Barb Non-Valved In-Line Coupling Insert |
PLC22006
3/8 Hose Barb Non-Valved In-Line Coupling Insert |
 |
|
 |
|
PLC23004
1/4 Hose Barb Non-Valved Elbow Coupling Insert |
PLC23006
3/8 Hose Barb Non-Valved Elbow Coupling Insert |
PLC24004
1/4 NPT Non-Valved Coupling Insert
|
PLC24004BSPT
1/4 BSPT Non-Valved Coupling Insert |
|
|
 |
|
PLC24006
3/8 NPT Non-Valved Coupling Insert |
PLC24006BSPT
3/8 BSPT Non-Valved Coupling Insert |
PLC29004
1/4 JG Non-Valved In-Line Coupling Insert |
PLC29006
3/8 JG Non-Valved In-Line Coupling Insert |
 |
 |
|
|
PLC320
Coupling Insert Cap |
PLC40004
1/4 PTF Non-Valved Panel Mount Coupling Insert |
PLC40006
3/8 PTF Non-Valved Panel Mount Coupling Insert |
PLC400M10
10mm PTF Non-Valved Panel Mount Coupling Insert |
|
 |
 |
|
PLC400M8
8mm PTF Non-Valved Panel Mount Coupling Insert |
PLC41004
1/4 JG Non-Valved Panel Mount Coupling Insert |
PLC42004
1/4 Hose Barb Non-Valved Panel Mount Coupling Insert |
PLC42005
5/16 Hose Barb Non-Valved Panel Mount Coupling Insert |
|
|
 |
 |
PLC42006
3/8 Hose Barb Non-Valved Panel Mount Coupling Insert |
PLCD20004
1/4 PTF Valved In-Line Coupling Insert |
PLCD20006
3/8 PTF Valved In-Line Coupling Insert |
PLCD200M10
10mm PTF Valved In-Line Coupling Insert |
 |
|
|
 |
PLCD200M8
8mm PTF Valved In-Line Coupling Insert
|
PLCD21006
3/8 PTF Valved Elbow Coupling Insert |
PLCD22004
1/4 Hose Barb Valved In-Line Coupling Insert |
PLCD22005
5/16 Hose Barb Valved In-Line Coupling Insert |
|
 |
|
|
PLCD22006
3/8 Hose Barb Valved In-Line Coupling Insert |
PLCD23004
1/4 Hose Barb Valved Elbow Coupling Insert |
PLCD23006
3/8 Hose Barb Valved Elbow Coupling Insert |
PLCD24004
1/4 NPT Valved Coupling Insert |
|
 |
 |
|
PLCD24004BSPT
1/4 BSPT Valved Coupling Insert |
PLCD24006
3/8 NPT Valved Coupling Insert |
PLCD24006BSPT
3/8 BSPT Valved Coupling Insert |
PLCD29004
1/4 JG Valved In-Line Coupling Insert |
 |
|
 |
 |
PLCD29006
3/8 JG Valved In-Line Coupling Insert |
PLCD40004
1/4 PTF Valved Panel Mount Coupling Insert |
PLCD40006
3/8 PTF Valved Panel Mount Coupling Insert |
PLCD400M10
10mm PTF Valved Panel Mount Coupling Insert
|
 |
|
|
 |
PLCD400M8
8mm PTF Valved Panel Mount Coupling Insert |
PLCD41004
1/4 JG Valved Panel Mount Coupling Insert
|
PLCD42004
1/4 Hose Barb Valved Panel Mount Coupling Insert |
PLCD42005
5/16 Hose Barb Valved Panel Mount Coupling Insert |
 |
 |
 |
|
PLCD42006
3/8 Hose Barb Valved Panel Mount Coupling Insert |
3545600
Panel Nut (LC, Polypropylene) |
520300
Panel Nut (LC, Acetal) |
|
PLC10004
1/4 NPT Non-Valved Coupling Body
PLC10004BSPT
1/4 BSPT Non-Valved Coupling Body
PLC10006
3/8 NPT Non-Valved Coupling Body
PLC10006BSPT
3/8 BSPT Non-Valved Coupling Body
PLC11004
1/4 JG Non-Valved Panel Mount Coupling Body
PLC12004
1/4 PTF Non-Valved Panel Mount Coupling Body
PLC12006
3/8 PTF Non-Valved Panel Mount Coupling Body
PLC120M10
10mm PTF Non-Valved Panel Mount Coupling Body
PLC120M8
8mm PTF Non-Valved Panel Mount Coupling Body
PLC13004
1/4 PTF Non-Valved In-Line Coupling Body
PLC13006
3/8 PTF Non-Valved In-Line Coupling Body
PLC130M10
10mm PTF Non-Valved In-Line Coupling Body
PLC130M8
8mm PTF Non-Valved In-Line Coupling Body
PLC14004
1/4 JG Non-Valved In-Line Coupling Body
PLC14006
3/8 JG Non-Valved In-Line Coupling Body
PLC16004
1/4 Hose Barb Non-Valved Panel Mount Coupling Body
PLC16005
5/16 Hose Barb Non-Valved Panel Mount Coupling Body
PLC16006
3/8 Hose Barb Non-Valved Panel Mount Coupling Body
PLC17004
1/4 Hose Barb Non-Valved In-Line Coupling Body
PLC17005
5/16 Hose Barb Non-Valved In-Line Coupling Body
PLC17006
3/8 Hose Barb Non-Valved In-Line Coupling Body
PLC300
Coupling Body Plug
PLC310
Coupling Body Plug
PLCD10004
1/4 NPT Valved Coupling Body
PLCD10004BSPT
1/4 BSPT Valved Coupling Body
PLCD10006
3/8 NPT Valved Coupling Body
PLCD10006BSPT
3/8 BSPT Valved Coupling Body
PLCD11004
1/4 JG Valved Panel Mount Coupling Body
PLCD12004
1/4 PTF Valved Panel Mount Coupling Body
PLCD12006
3/8 PTF Valved Panel Mount Coupling Body
PLCD120M10
10mm PTF Valved Panel Mount Coupling Body
PLCD120M8
8mm PTF Valved Panel Mount Coupling Body
PLCD13004
1/4 PTF Valved In-Line Coupling Body
PLCD13006
3/8 PTF Valved In-Line Coupling Body
PLCD130M10
10mm PTF Valved In-Line Coupling Body
PLCD130M8
8mm PTF Valved In-Line Coupling Body
PLCD14004
1/4 JG Valved In-Line Coupling Body
PLCD14006
3/8 JG Valved In-Line Coupling Body
PLCD16004
1/4 Hose Barb Valved Panel Mount Coupling Body
PLCD16005
5/16 Hose Barb Valved Panel Mount Coupling Body
