Deublin Offers Water and Hot Oil Unions:
杜博林deublin水和热油介质应用旋转接头



General Specifications and Features

  • Port connection thread sizes from 3/8” to 4”
  • Rotors available with thread or flange connection
  • Single or two passage designs
  • Multiple seal combinations to accommodate various media and operating conditions
  • Water pressure ratings up to 4,000 PSI
  • Saturated steam pressure ratings up to 15 PSI (intermittent)
  • Hot oil pressure ratings up to 100 PSI
  • Temperature ratings up to 250°F
  • Speed ratings up to 3,500 RPM
  • Cartridge seal models available for easy and quick on-the-machine replacement of seal components
  • Stainless steel models available for applications such as food, chemical, and pharmaceutical
  • Special in-the-shaft mounted models for use in continuous casting applications

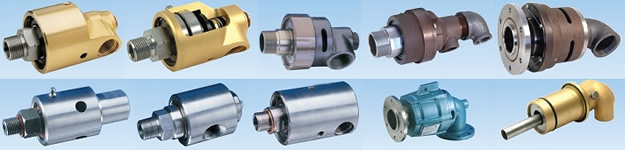

Models:

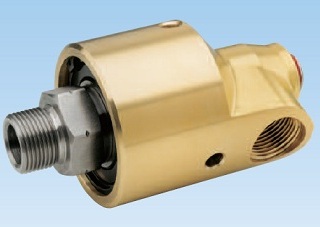

Deublin 55 Series Rotary Union

DEUBLIN
General Purpose
55 Series Unions

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seal
3 vent holes
Forged brass housing
Stainless steel rotor
Special options: threaded vent holes, low torque design

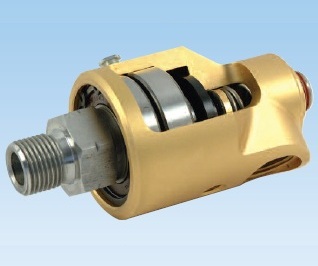

Deublin 57 Series Rotary Union

DEUBLIN
57 Series with Silicon Carbide Seals, for Water Service

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seal
Keyed rotor seal
Easy replacement of sealing components (rotor seal, floating seal)
Ball bearings lubricated for life
For poor water quality (E.L.S.) ? 3 vent holes
Forged brass housing ? Stainless steel rotor
Special options: threaded vent holes

Deublin 2.5" Field Repairable, All Purpose Rotary Union

DEUBLIN
2.5" Field Repairable, All Purpose Unions

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seal
Seal combinations: Carbon Graphite/Ceramic - standard Tungsten Carbide/Ceramic - E.L.S.
3 vent slots
Cast iron housing - standard cast iron housing nickel-plated - optional
Steel rotor

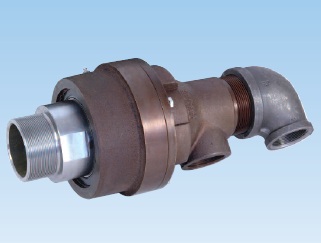

Deublin 3" Rotary Union for Rubber and Plastic Application

DEUBLIN
3" Union for Rubber and Plastic Application

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seal
Seal combination: Carbon Graphite/Tungsten Carbide
Full-media flow
Easy and quick replacement of sealing components (rotor seal, floating seal)
Vented housing
Cast iron housing - standard
Steel rotor

Deublin Stainless Steel Rotary Union

DEUBLIN
Stainless Steel Unions

Monoflow and duoflow (available) design
Self-supported rotating union
Radial or axial (available) housing connection
Seal combinations: Carbon Graphite/Ceramic - standard Tungsten Carbide/Ceramic - E.L.S.
Wetted parts made of 316 stainless steel
Suitable for the food, chemical & pharmaceutical industries
Full-media flow

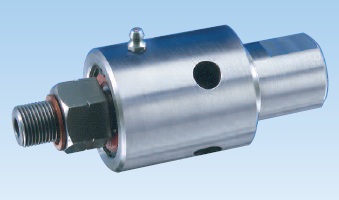

Deublin Model 927 High Pressure/Low Torque Water Rotary Union

DEUBLIN
Model 927 High Pressure/Low Torque Water Union

Monoflow design
Self-supported rotating union
Axial housing connection
Balanced mechanical seal
Seal combination: Tungsten Carbide/Tungsten Carbide
Slinger and vents protect bearings
Low torque design
Stainless steel housing and rotor

Deublin Model 22 Car Wash Rotary Union

DEUBLIN
Model 22 Car Wash Union

Monoflow design
Self-supported rotating union
Radial housing connection
Seal combination: Silicon Carbide/Silicon Carbide
Stainless steel housing and rotor

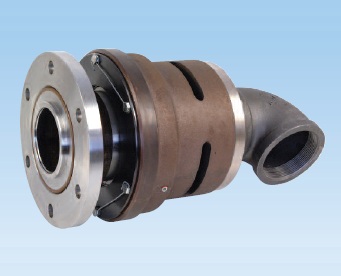

Deublin 2", 2.5", 3"& 4" Cartridge Water Rotary Unions

DEUBLIN
2", 2.5", 3"& 4" Cartridge Water Unions

Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seal
Seal combinations: Carbon Graphite/Tungsten Carbide - standard Silicon Carbide/Tungsten Carbide - E.L.S. ? Steel-banded floating seal
Easy and quick replacement of sealing components
Full-media flow
Vent slots ? Cast iron housing
Steel rotor flanged/threaded

Deublin F Series 5" Water Rotary Union

DEUBLIN
F Series 5" Water Union

Monoflow and duoflow design
Self-supported rotating union
Balanced mechanical seal
Seal combination: Carbon Graphite/Ni-Resist
Two widely-spaced ball bearings
Labyrinth seal protects bearings
Cast iron housing
High corrosion resistant
Steel flanged rotor
On-the-machine seal replacement capability
Inlet/outlet flange: standard ANSI optional DIN, JIS
Special designs up to 12" available upon request

Deublin 2400 Series Rotary Union

DEUBLIN
2400 Series Rotating Union

Monoflow and duoflow design
In-the-shaft mounted
Self-supported rotating union
Flanged housing or mounted with retaining plate
Balanced mechanical seal
Seal combination: Silicon Carbide/Silicon Carbide
Brass housing and elbow
Stainless steel rotor and supply pipe
Engineered sleeve bearing
Full-media flow
Easily field repairable
