美国CPC塑料快速接头Drumquik系列分装接头 DrumQuik PUR密闭式分配连接系统
DrumQuik PRO /DrumQuik PUR DrumQuik_Dispensing_Systems分装系统

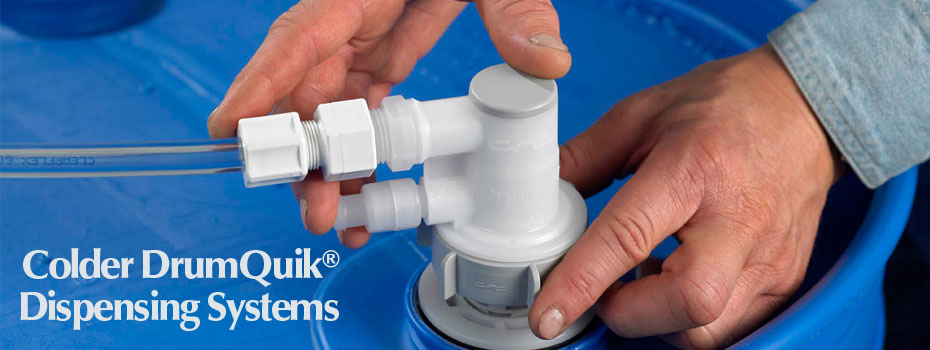

Colder DrumQuik Drum Dispensing Sytsem

CPC DrumQuik桶/分装连接器


无论您是使用简便油桶,桶或中型散装容器(IBCs), 我们的DrumQuik®分配系统适合几乎任何容器使用,“封闭”地提取容器中的化学品或食品为主的液体。备有不同尺寸和材料选择的汲取管系统,我们的解决方案有效减少危险品暴露,同时保护您的流体本身免受污染。CPC DrumQuik抽料系统 CPC Colder分配头 CPC Colder桶塞/插底管 PFA特氟龙抽料管

标签: cpc 分配头 桶塞 插底管 密闭 分类: 液体密闭分配系统

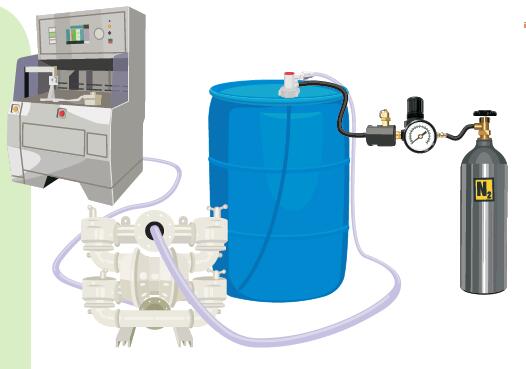

该系统主要由分配头、桶塞、插底管等组成,具有排气口,抽料时可以由此补充氮气。

CPC DrumQuik PRO Drum Dispensing System Video



产品材质:

- 分配头:材质有PP、PVDF;密封圈有EPDM、FKM、FFKM可选,弹簧有SS316、Teflon包覆SS316钢丝、Hastelloy C和PEEK、PPS塑料弹簧可选。(材质、密封圈和弹簧可跟据化学兼容性参考表格选型)
- 桶塞:聚乙烯(HDPE)
- 插底管:聚乙烯(HDPE)
- 接泵的抽料管/罐料管:PFA或PTFE等材质。

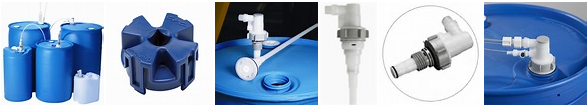

DrumQuik抽料系统 CPC Colder分配头 CPC Colder桶塞/插底管 PFA特氟龙抽料管



CPC’s DrumQuik Dispensing Systems产品优势:

1、安全:完全是密闭的状态工作、断开后自动切断阀防止化学品回流、 减少操作混乱及化学品暴露时间(对操作者、化学品都起到保护)
2、快捷:可快速换桶、更换时不需要工具。只用桶的一个孔,就可以解决出液和进气的功能。
3、经济:同类产品价格较低,为客户节省成本;低残留率来减少浪费。
4、全面的解决方案:可配套各种接口来满足客户的现场情况、用途广范的行业使用。



品牌:CPC
型号:Drumquik系列 桶分装 | DrumQuik | 桶 IBC集装桶 : CPC
加工定制:是
材质:塑料

产品型号: Drumquik系列分装接头

规格参数
压力:
未连接时:真空至 45 psig(3.1 bar)
连接后:真空至桶额定压力
温度:
桶塞:-20°至120℉(-29°至49°C)
分 配 头 :H D P E , 3 2 °至 1 2 0 ℉( 0 °至 4 9 °C )
PVPE, 0°至120℉(-18°至 49°C)
材料:
桶塞&插底管:原生聚乙烯(HDPE)
运输堵塞: 原生聚乙烯(HDPE)
分配头:
原生聚丙烯(DrumQuik PRO)
原生 PVDF (DrumQuik PUR)
弹簧(仅分配头带有):
316 不锈钢, Hastelloy C, 原生聚醚醚酮,
聚苯硫醚或 包Teflon 316 不锈钢(TESS)
密封圈:
分配头密封圈:乙丙橡胶, 氟橡胶, Simriz 超高纯全氟醚橡胶,全氟橡胶
桶塞密封圈:聚烯烃, 乙丙橡胶, 氟橡胶
运输堵塞密封圈:乙丙橡胶, 氟橡胶
扭矩规格:
2"Buttress -20ft-lbs(27 N m)
BCS 56×4–20ft-lbs(27 N m)
2" NPS(塑料桶)–20ft-lbs(27 N m)
2" NPS(钢桶)–15ft-lbs(20 N m)
运输堵塞-手旋紧式


WHY USE A DRUMQUIK PRO DrumQuik_installation_guide



注意:上面所列的扭矩规格是建议值,可能还需要根据特定应用增减。DrumQuik PRO /DrumQuik PUR DrumQuik_Dispensing_Systems分装系统可与各类泵一起使用,以便建立一个既可用于普通化学品,又可用于高纯度化学品的密闭输送系统。该产品易于使用,可同时满足化学品处理应用的严格安全要求以及在危险环境下的操作要求。DrumQuik 分装系统可***大限度地减少化学品暴露危害,便于将化学品从散装容器输送到***终用户的应用场所。对于普通化学品的输送,DrumQuik PRO可提供坚固耐用、成本效益较高的解决方案。DrumQuik PUR 为100%无金属、在清洁室内完成包装的PVDF产品,专为高纯度要求的应用而设计。所有材料均满足食品和消费品应用的FDA标准。


美国Colder Products Company (CPC),成立于1978年,是制造塑胶射出成型快速接头的领导者,其快速接头产品全球销量大。 CPC快速接头有数种与众不同的设计:自动闭锁、以响声确认安全连结、易于单手操作、适用不同流体介质等特点。广泛应用于化学工业、生物工程、制药行业、医疗设备、实验室设备、包装行业等各行各业。





美国CPC塑料快速接头Drumquik系列分装接头 DrumQuik PUR密闭式分配连接系统
DrumQuik PRO /DrumQuik PUR DrumQuik_Dispensing_Systems分装系统
Colder DrumQuik Drum Dispensing Sytsem
CPC DrumQuik桶/分装连接器 PDF Catalog
CPC DrumQuik PRO and DrumQuik PUR dispensing systems

产品 桶/分装连接器
Series

DrumQuik PRO
DrumQuik PUR (High Purity Cleanroom)
DrumQuik Universal Dispensing Adapter
DrumQuik PRO Accessories
DrumQuik PUR Accessories
Puncture Seal
UDC
iUDC (RFID-Enabled)

- CPC Series - DrumQuik Universal Dispensing Adaptor (UDA)

DQPRO120208
DQPRO120712
DQPRO202BUT
DQPRO2056X4 BCS
DQPRO20G2NPSST
DQPRO20G2NPSPL
DQPRODT0410
DQPRODT0985
DQPRODT1070
DQPRODT1274
DQPRO120208
DQPRO120712
DQPRO202BUT
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket (For plastic drums)
DQPRODT0410
DQPRODT0985
DQPRODT1070
DQPRODT1274
Couplers: Polypropylene
ParT NUMBEr DESCriPTiON
DQPRO120208 1/2" male NPT liquid port
DQPRO120712 3/4" male BSPP liquid port
Drum inserts: HDPE
ParT NUMBEr DESCriPTiON
DQPRO202BUT 2" American buttress thread
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
(For steel drums and IBC caps)
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket
(For plastic drums)
Dip-tubes: HDPE
ParT NUMBEr DESCriPTiON
DQPRODT0410 13.0" (330mm) long for 5 gal/
25L jerry cans
DQPRODT0985 35.5" (905mm) long for 55 gal/
200L drums
DQPRODT1070 39.0" (990mm) long for 275 gal/
1040L IBCs
DQPRODT1274 47.0” (1194mm) long for 330 gal/
1250L IBCs

Couplers: Polypropylene
ParT NUMBEr DESCriPTiON
DQPRO120208 1/2" male NPT liquid port
DQPRO120712 3/4" male BSPP liquid port
Drum inserts: HDPE
ParT NUMBEr DESCriPTiON
DQPRO202BUT 2" American buttress thread
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
(For steel drums and IBC caps)
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket
(For plastic drums)
Dip-tubes: HDPE
ParT NUMBEr DESCriPTiON
DQPRODT0410 13.0" (330mm) long for 5 gal/
25L jerry cans
DQPRODT0985 35.5" (905mm) long for 55 gal/
200L drums
DQPRODT1070 39.0" (990mm) long for 275 gal/
1040L IBCs
DQPRODT1274 47.0” (1194mm) long for 330 gal/
1250L IBCs
NOTE: See modified standard material options below. Options 202, 206
and 207 are available.
NOTE: See modified standard material options below.
Optional Seal and Spring Materials
Drum Insert
P/N Suffix Description
202 FKM Seals
Coupler
P/N Suffix Description
202 FKM o-rings, 316 stainless steel spring
206 EPDM o-rings, Hastelloy. C spring
207 FKM o-rings, Hastelloy. C spring

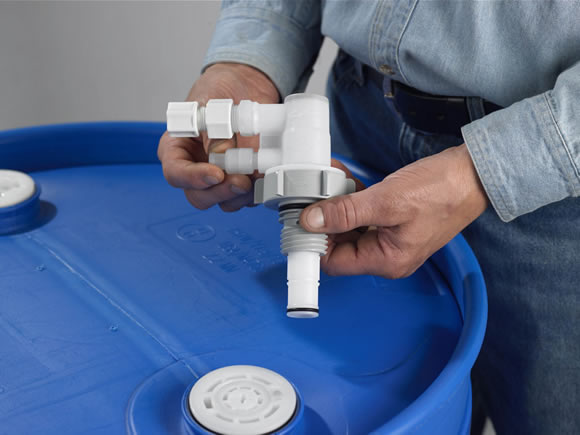

Additional System Components4 Vent Check Valve 4 Vent Check Fittings4 Backflow Check Valve 4 Color Coding4 Keying Options 4 Liquid Port FittingsVisit www.colder.comNOTE: The length indicated in the part number is the length as measured
from the sealing surface of the container to the end of the dip-tube. This
is ~ 80mm longer than the actual length of the dip-tube itself.
Colder Products Company GmbH



CPC DrumQuik PRO and DrumQuik PUR dispensing systems密闭式分配连接系统产品应用:

DrumQuik PRO Series: Drum Connectors

DrumQuik PRO Series: Drum Connectors

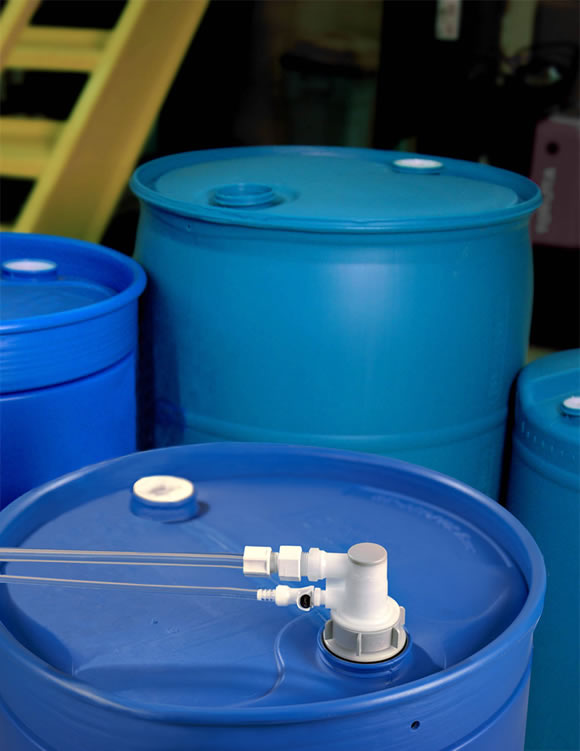

The DrumQuik PRO is an easy-to-use product for extracting chemicals from rigid containers. The closed-system design and rugged construction meet the safety requirements of chemical handling applications. The DrumQuik PRO minimizes chemical exposure and facilitates the delivery of chemicals from bulk transfer containers to end use applications.

Click Here To Download:
- Product Sheet: DrumQuik PRO Series: Drum Connectors
- Catalog: Quick Disconnect Couplings For Chemical Management
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing


The DrumQuik PRO is an easy-to-use product for extracting chemicals from rigid containers. The closed-system design and rugged construction meet the safety requirements of chemical handling applications. The DrumQuik PRO minimizes chemical exposure and facilitates the delivery of chemicals from bulk transfer containers to end use applications.

For safe extraction of fluids from jerry cans, drums and intermediate bulk containers (IBCs), Colder offers quick disconnect couplings and adaptors ranging in size and material. The durable and reliable DrumQuik products can be easily used with common bung closures and the adaptors are offered in single and dual ports, with dip-tubes included.

Features

Quick connect/disconnect coupler

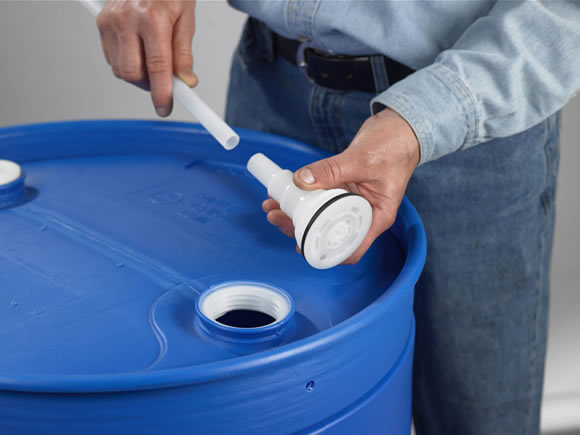

Integrated dip-tube and drum closure
Ported vent system
Low-cost drum insert closure
Rugged, durable construction
Benefits
Easy-to-use design allows faster drum change outs
Reduce messy handling and exposure to chemicals

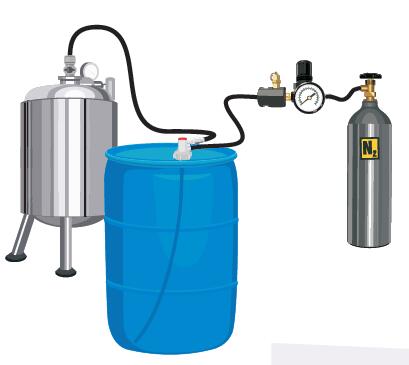

Allows make-up air into drum without releasing vapors; allows blanket gas connection
Dispose of closure with single-trip containers and eliminate cleaning and recycling challenges
Withstands harsh operating environments

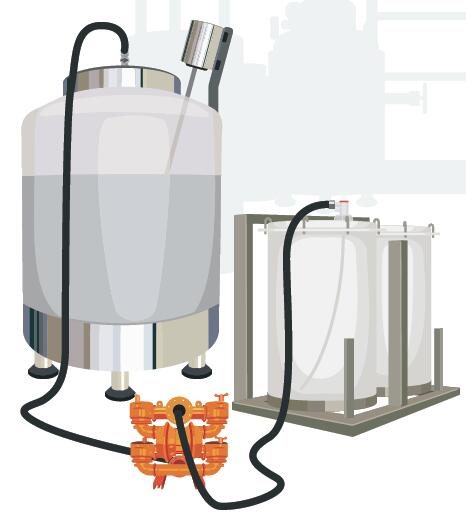

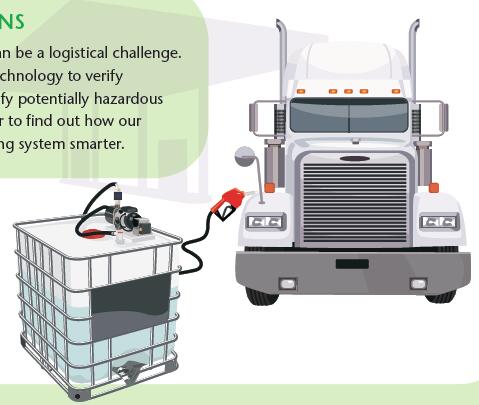

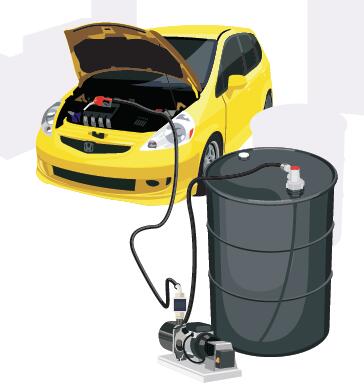

Applications may include:
Acids, caustics and solvent delivery

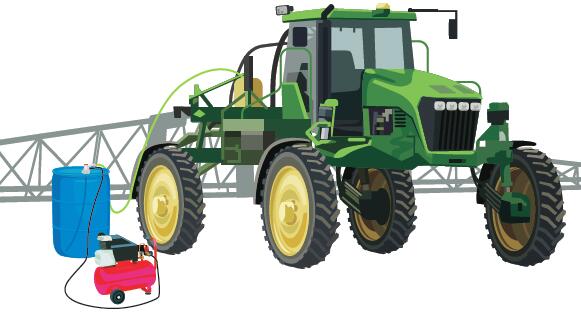

Agricultural fertilizer application

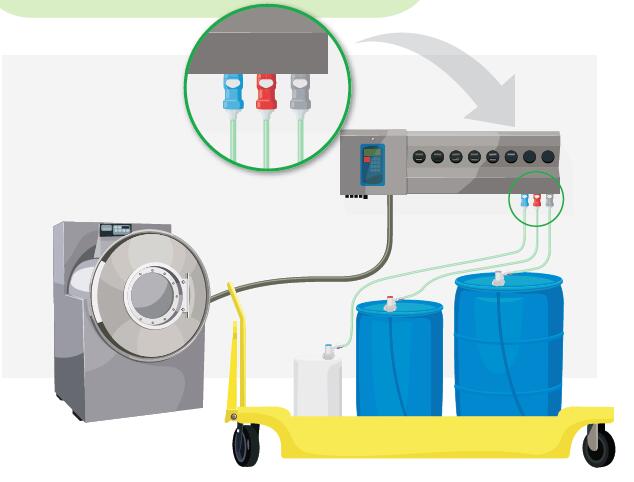

Institutional cleaning
Paint and coating dispensing
Fragrance production
Edible oils and syrup transport
Pharmaceutical sterilant handling


Click Here To Download:

- Product Sheet: DrumQuik PRO Series: Drum Connectors
- Catalog: Quick Disconnect Couplings For Chemical Management
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
